Scosche HDSWC1 - HDSWC1 WIRING DIAGRAM; Steering Harness Configuration

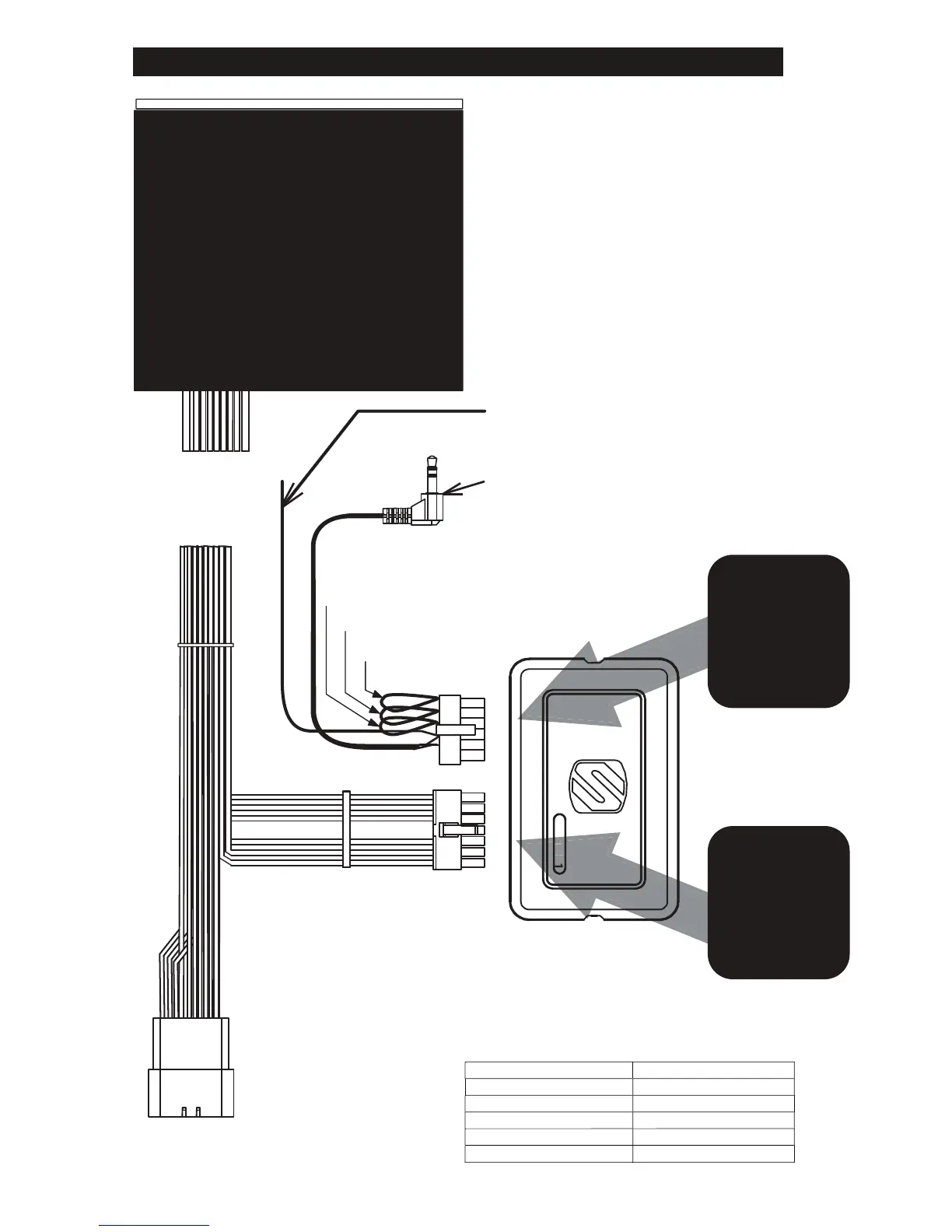

HDSWC1 WIRING DIAGRAM
Blue/Yellow wire steering wheel
output (JVC, Kenwood)
3.5mm steering wheel
output (Alpine, Clarion, Panasonic, JVC, Sony)
ssenrah ekiB oT <
1CWSDH
Alpine
Cut Green wire loop
Clarion
Cut Violet wire loop
JVC
Cut Green AND Violet loops
Panasonic
Cut Blue wire loop
Kenwood / JVC 2011 & later
Sony
Do NOT cut loops
4
Cut Blue AND Green loops
/Pioneer
AFTERMARKET
RADIO
HDSWC1
Violet loop
Green loop
Blue loop
12-pin
Plug
only!
14-pin
Plug
only!
Configure steering harness for Aftermarket
stereo using chart below:
1
C
W
S
S
D
