FIGURE 2 A
FIGURE 2B FIGURE 2C

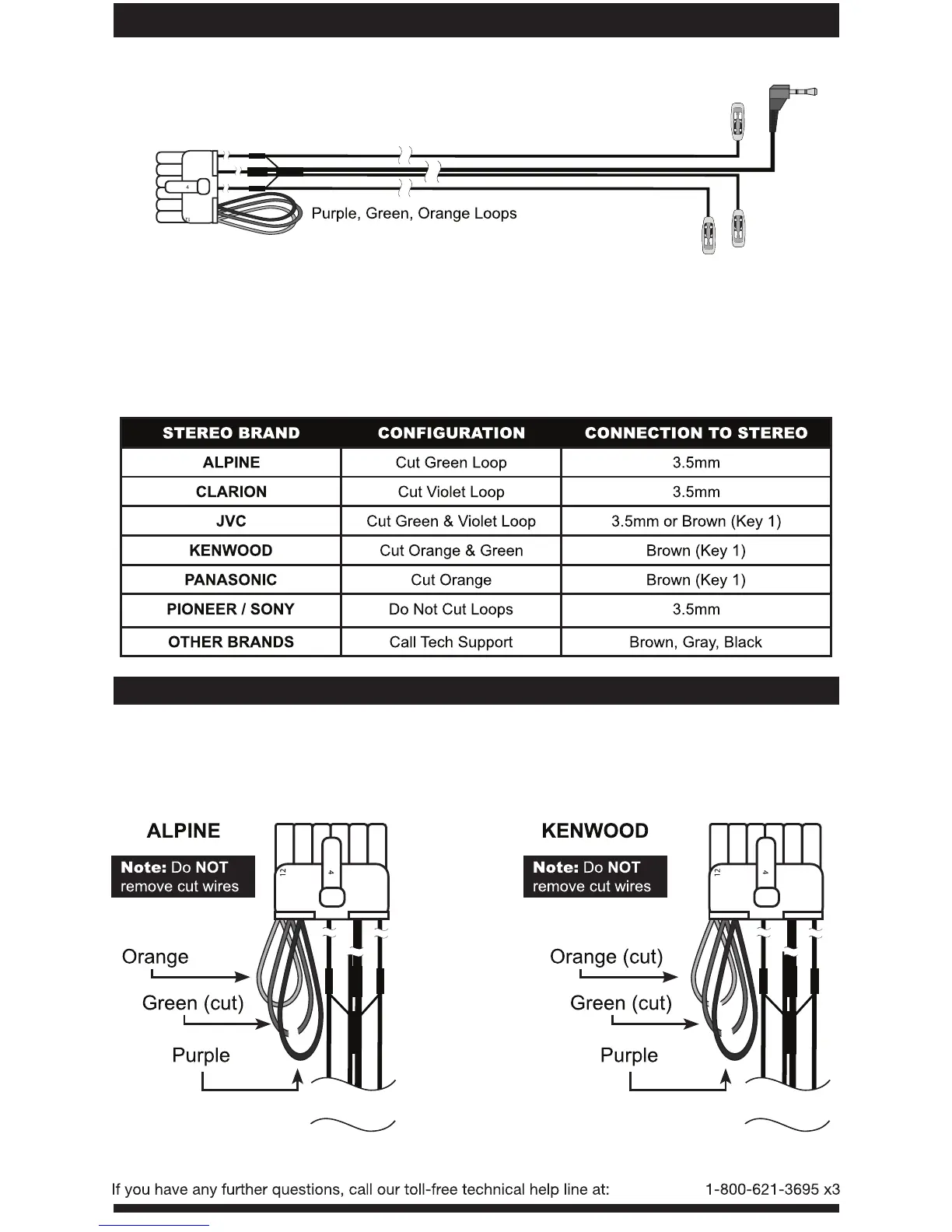

SWC WIRING DIAGRAM
SWC HARNESS
KEY 1
KEY 2
3.5mm
GND
1. Prepare SWC steering wheel connector harness by using the chart below
2. Connect the harness to the interface module.
3. For Alpine, Clarion, JVC, Panasonic and Sony car stereos, connect the 3.5mm male steering plug
into the steering wheel input jack at the back of the stereo.
4. For Kenwood and newer JVC stereos, connect the
BROWN
wire from the steering wheel harness to
the “Remote in” wire at the back of the stereo.
,,
