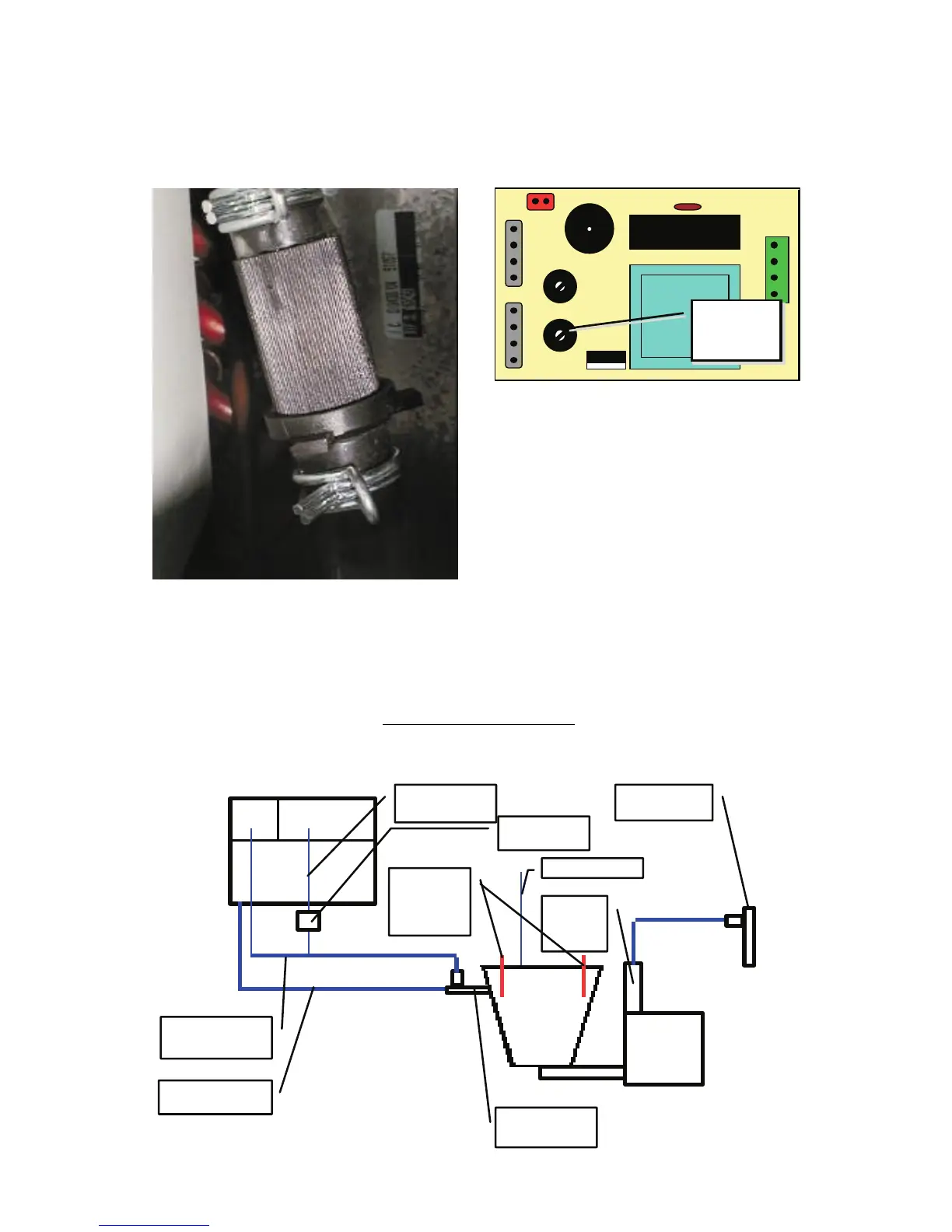

A Check Valve, located on the water drain hose,
prevents the coming back of the discharged
water.
The Special Interface PC Board is equipped with
a "trimmer" that can be adjusted accordingly to
the different electrical conductivity of the water.
+
+
-
-
TRIMMER
WATER
SENSIVITY
SCHEMATIC SYSTEM
Drain out
Storage bin
Purge valve
Storage bin
drain tube
Overflow drain
tube
Purge valve
drain tube
Water tank
inlet fitting
Sealed
water
tank
Water
pump
Check
valve
Drain fitting
Vented tube
Water
level
sensors
To Next Page
