Dispensing

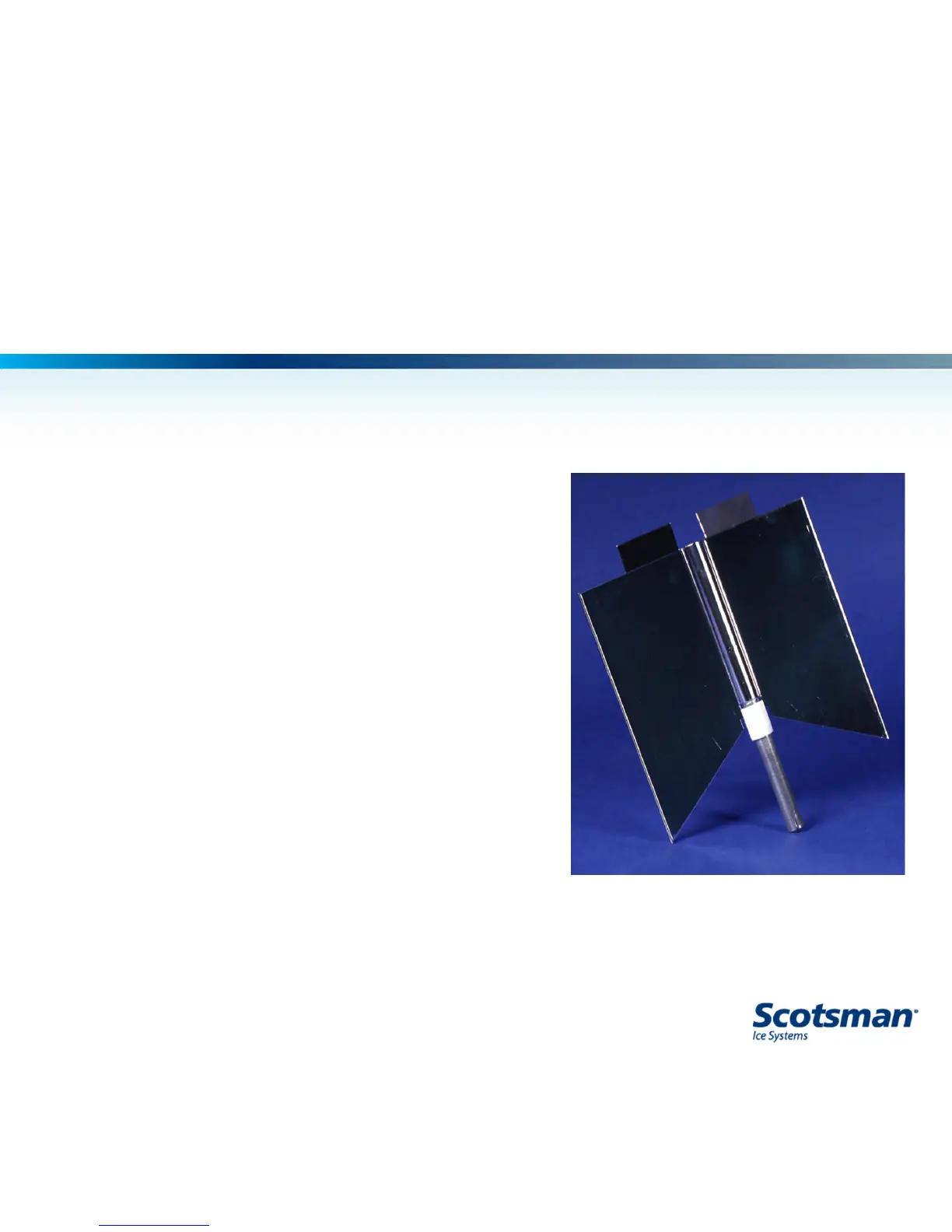

• The ice dispensing vane moves all
the ice every time ice is dispensed.
– Electro-polished stainless steel
– Rests on plastic bushing
• No thrust on drive motor
• Pull up to remove
