Top Half
Bottom Half

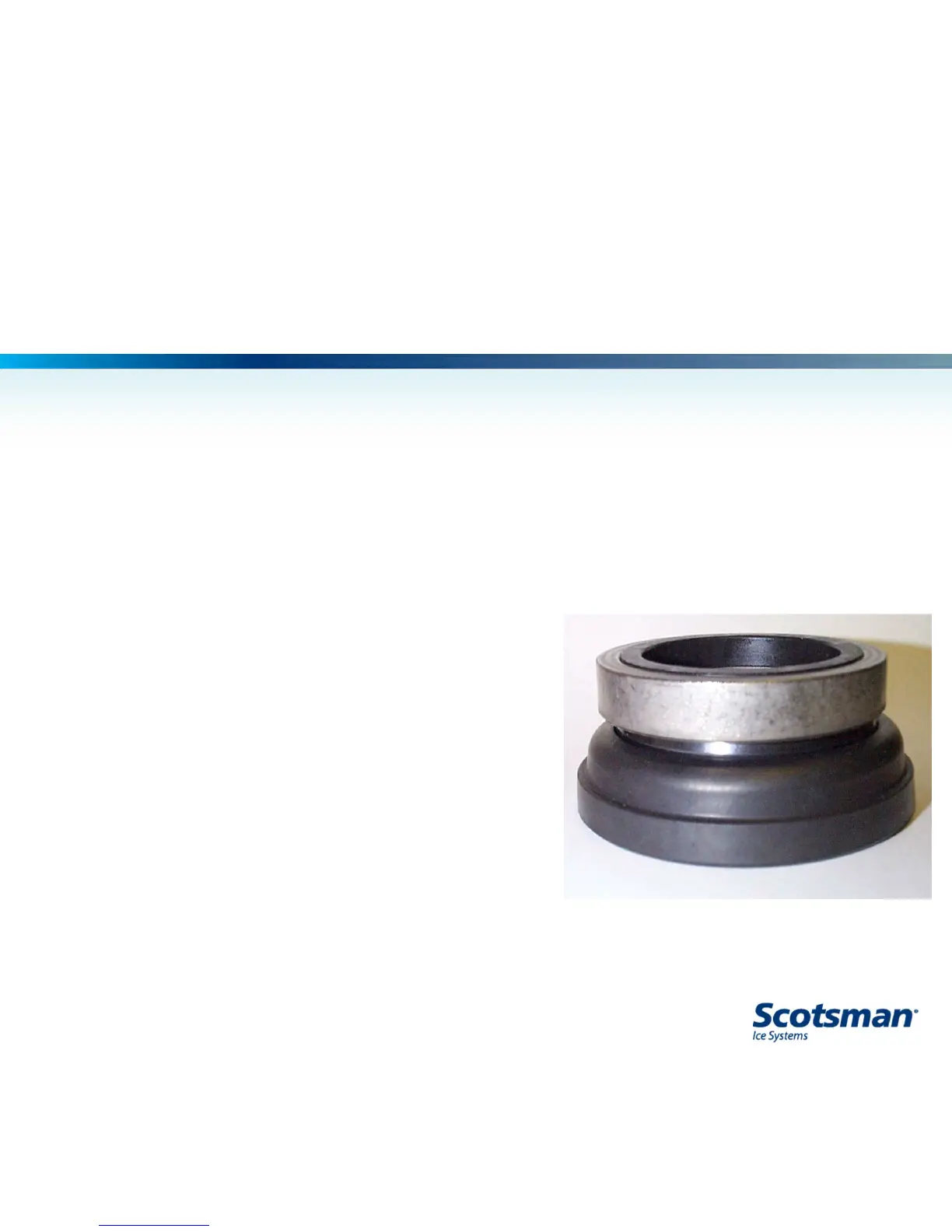

MDT
• Auger Water Seal
– Face Type
• Top half rotates with auger
• Bottom half is stationary
• Sealing occurs where the "faces" of
the two seals meet
