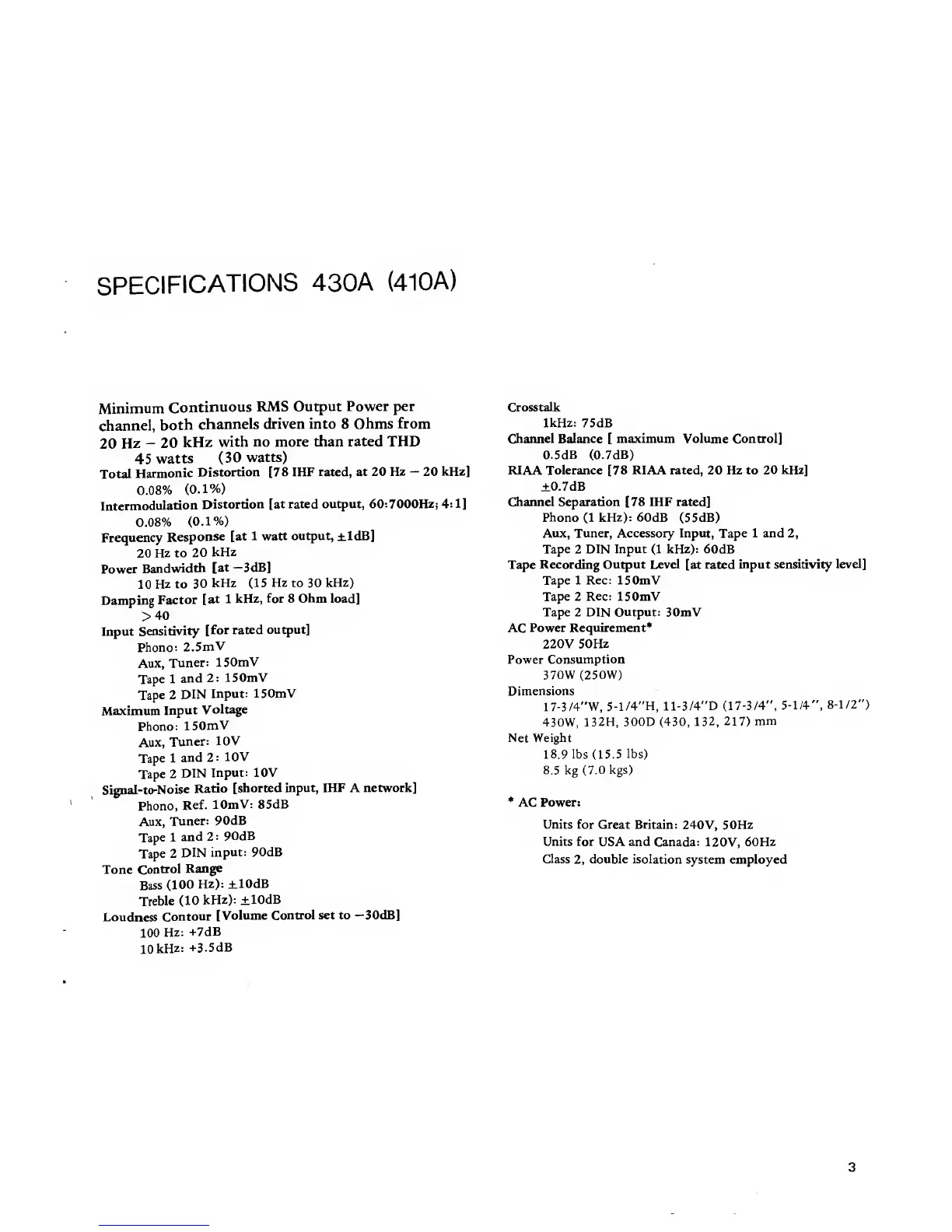

SPECIFICATIONS
430A
(410A)
Minimum
Continuous
RMS
Output Power per
channel,
both
channels
driven into 8
Ohms from
20
Hz
-
20
kHz
with
no more than rated THD
45
watts (30
watts)
Total
Harmonic
Distortion
[78
IHF
rated, at 20
Hz
-
20
kHz]
0.08%
(0.1%)
Intermodulation
Distortion
[at rated output,
60:7000Hz; 4:
1]
0.08%
(0.1%)
Frequency
Response
[at 1
watt output, ±ldB]
20
Hz to
20
kHz
Power
Bandwidth
[at
—
3dB]
10
Hz to
30
kHz (15
Hz
to 30
kHz)
Damping
Factor
[at 1
kHz, for
8
Ohm
load]
>40
Input
Sensitivity
[for rated
output]
Phono:
2.5mV
Aux,
Tuner:
150mV
Tape
1
and
2: 150mV
Tape
2
DIN
Input:
150mV
Maximum
Input
Voltage
Phono:
150mV
Aux,
Tuner:
10V
Tape
1
and
2: 10V
Tape
2
DIN
Input: 10V
Signal-to-Noise
Ratio
[shorted
input, IHF
A
network]
Phono,
Ref.
10mV: 85dB
Aux,
Tuner:
90dB
Tape
1
and
2:
90dB
Tape
2
DIN
input: 90dB
Tone
Control
Range
Bass
(100
Hz):
+10dB
Treble (10
kHz):
±10dB
Loudness
Contour
[Volume
Control set to -30dB]
100
Hz:
+7dB
10
kHz:
+3.5dB
Crosstalk
1kHz:
75dB
Channel Balance
[
maximum Volume Control]
0.5dB (0.7dB)
RIAA Tolerance
[78
RIAA rated, 20 Hz to
20 kHz]
+0.7dB
Channel Separation
[78
IHF rated]
Phono
(1
kHz):
60dB (55dB)
Aux, Tuner, Accessory Input, Tape 1 and
2,
Tape
2
DIN Input
(1
kHz):
60dB
Tape
Recording Output Level
[at
rated input
sensitivity
level]
Tape 1 Rec: 150mV
Tape 2
Rec:
150mV
Tape 2 DIN Output: 30mV
AC
Power Requirement*
220V
50Hz
Power
Consumption
370W (250W)
Dimensions
17-3/4"W,
5-1/4-H, ll-3/4"D
(17-3/4",
5-1/4",
8-1/2")
430W,
132H, 300D
(430,
132,
217)
mm
Net
Weight
18.9
lbs
(15.5
lbs)
8.5 kg
(7.0
kgs)
*
AC
Power:
Units for Great Britain:
240V,
50Hz
Units for
USA
and
Canada:
120V,
60Hz
Class
2,
double isolation
system employed
3
