ENGLISH
45 |
ROAD BIKE | OWNER’S MANUAL 2021
If you have a single bolt system (c), the seat post for most of the sports saddles
is designed for a saddle rail diameter of 7mm.
Replacement outer clamps for ovalized saddle rails of 8mm x 8.5mm (WxH)
as well as for carbon saddle rails bigger than 8 x 8.5mm are also available. If
you are not sure which saddle rail type you have or if you need further informa-
tion, contact your SCOTT dealer.

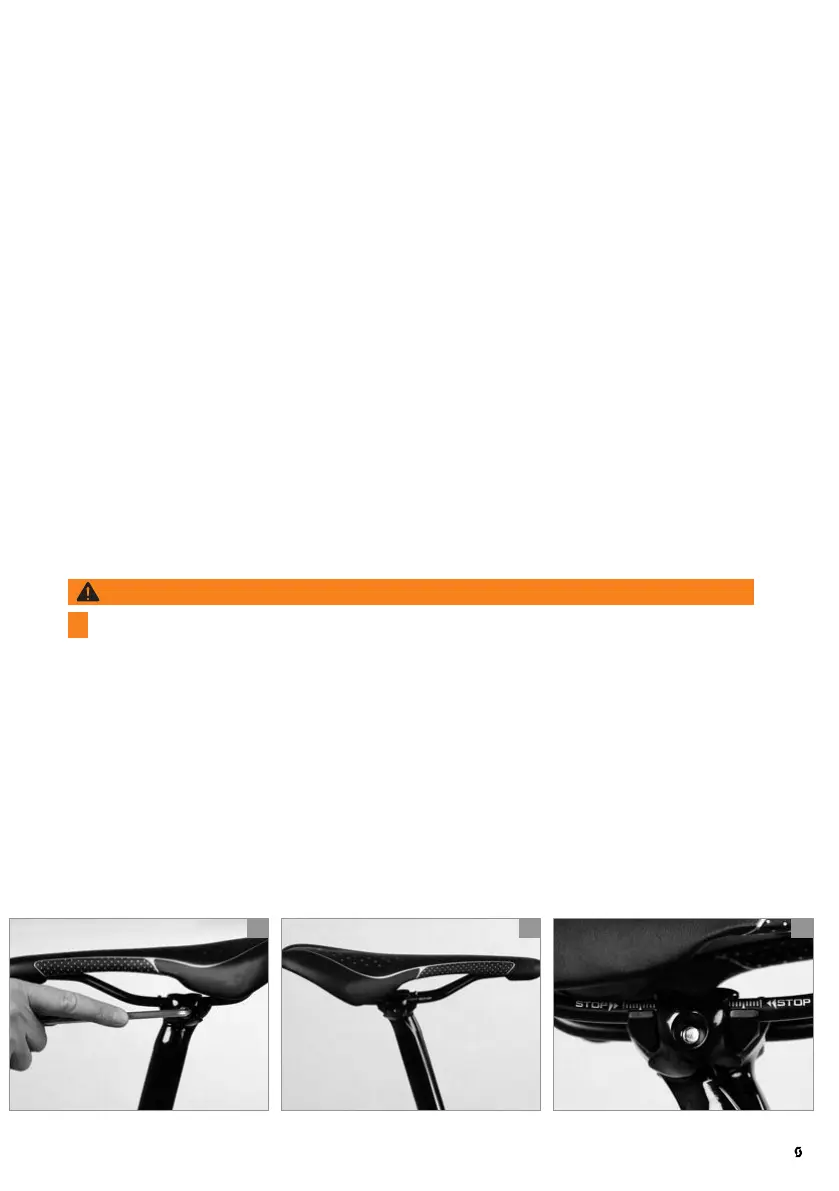

To mount the saddle unscrew the transversal fixing bolt (d) as far as possible
without loosening the lock nut on the outer side of the clamping device. In gen-
eral, it is not necessary to take the mechanism completely apart, if it is already
equipped with the correct outer clamps for your saddle.
If you do find it necessary to unscrew the single fixing bolt completely, remove
it from the clamping device. This releases the outer clamping parts. The inner
clamping parts are typically held in position with a rubber retention plate.
Mount the saddle rails into the inner clamping parts, add the outer parts and
re-insert the fixing bolt. If the width of the saddle rails does not fit exactly into
the clamp grooves, do not try to force them in. The clamping mechanism or the
saddle rails could break and result in an accident and/or injuries to the rider.
Use a different saddle model (e) or contact your SCOTT dealer.
WARNING
When choosing another saddle, observe that there are round and ovalized
rails. Replace the fitting pieces of the clamp accordingly.
If the saddle rails fit into the clamp grooves, slide the saddle on the seat post
and ensure that the clamp is positioned midway along the total length of the
rails (f).
