SCOTT SCALE 970 General Manual

ENGLISH
03 |
GENERAL MANUAL | OWNER’S MANUAL 2021

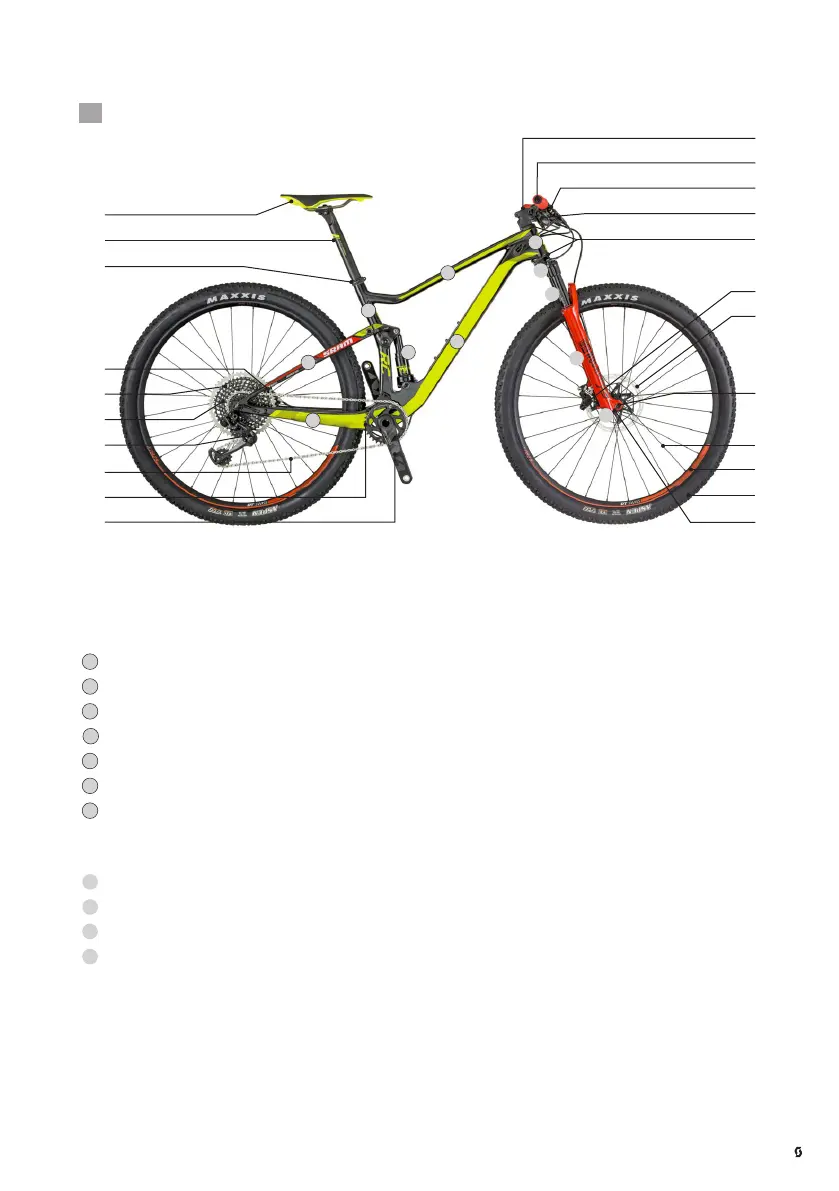

1 Saddle
2 Seat post
3 Seat post clamp
4 Pannier rack
5 Rear light
6 Brake rear
7 Rotor
8 Front derailleur
9 Cassette sprockets
10 Rear derailleur
11 Kickstand
12 Chain
13 Chainring
14 Crank
15 Pedal
16 Stem
17 Bell
18 Handlebars
19 Brake lever
20 Shifter
21 Brake lever/shifter
22 Headset
23 Front lamp
24 Brake front
25 Rotor
26 Fork
27 Hub dynamo
Wheel:
28 Quick-release/
thru axle
29 Spoke
30 Rim
31 Reflector ring
32 Tyre
33 Hub
Frame:
1
Top tube
2
Down tube
3
Seat tube
4
Chainstay
5
Seat stay
6
Head tube
7
Rear shock
Suspension fork:
I
Fork crown
II
Stanchion tube
III
Lower leg
IV
Drop-out
16
18
19
20
22
24
25
28
29
30
32
33
1
2
3
6
7
9
10
12
13
14
II
III
I
1
2
3
4
5
6
7
IV
c

SCOTT SCALE 970 Specifications

General

Crankset	Shimano FC-MT511-1, 32T
Saddle	Syncros Belcarra Regular 2.5
Chain	KMC X12
Spokes	Stainless Black 15G / 1.8mm
Frame	Alloy 6061 Custom Butted Tubing
Fork	RockShox Judy Silver TK, 100mm travel
Rear Derailleur	Shimano Deore RD-M6100 12 Speed
Shifters	Shimano Deore SL-M6100-R / Rapidfire Plus
Brakes	Shimano BR-MT200, hydraulic disc
Cassette	Shimano Deore CS-M6100-12 / 10-51 T
Wheelset	Syncros
Tires	Schwalbe Rapid Rob 29x2.25"
Handlebar	Syncros Alloy 6061, T shape Flat, 9° back sweep, 740mm
Seatpost	Syncros / 31.6x400mm
Rotor	Shimano SM-RT30 CL, 180mm(F) / 160mm(R)
H'stem	Syncros Alloy 6061
Headset	Syncros OE Press Fit, Tapered 1.5" - 1 1/8"
Hub (Front)	Shimano MT400
Hub (Rear)	Shimano MT400
Rims	Syncros / 32H
