SCOTT TWINLOC - Front Fork Remote Cable Assembly; Fork Remote Cable Systems; Fork Remote Roll Adjustment

4 5
ENGLISH
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL FORK
UNMOUNTING
*** g *** A4
Scale Material Projection
Version: 00
2:1 ***
Division Pro-E file Drawn by Date Page
BIKE market-anim-1.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
ROLL FORK UNMOUNTING
SCALE 2:1
TORX : T10
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
PLATE
*** g *** A4
Scale Material Projection
Version: 00
2:1 ***
Division Pro-E file Drawn by Date Page
BIKE VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
SCALE 3:1
FOX-DT ROLL FORK
FIXATION HOLE
ROCK SHOX ROLL FORK
FIXATION HOLE
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL FORK
MOUNTING
*** g *** A4
Scale Material Projection
Version: 00
3:2 ***
Division Pro-E file Drawn by Date Page
BIKE market-anim-1.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
ROLL FORK MOUNTING
SCALE 3:2
TORX : T10
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B

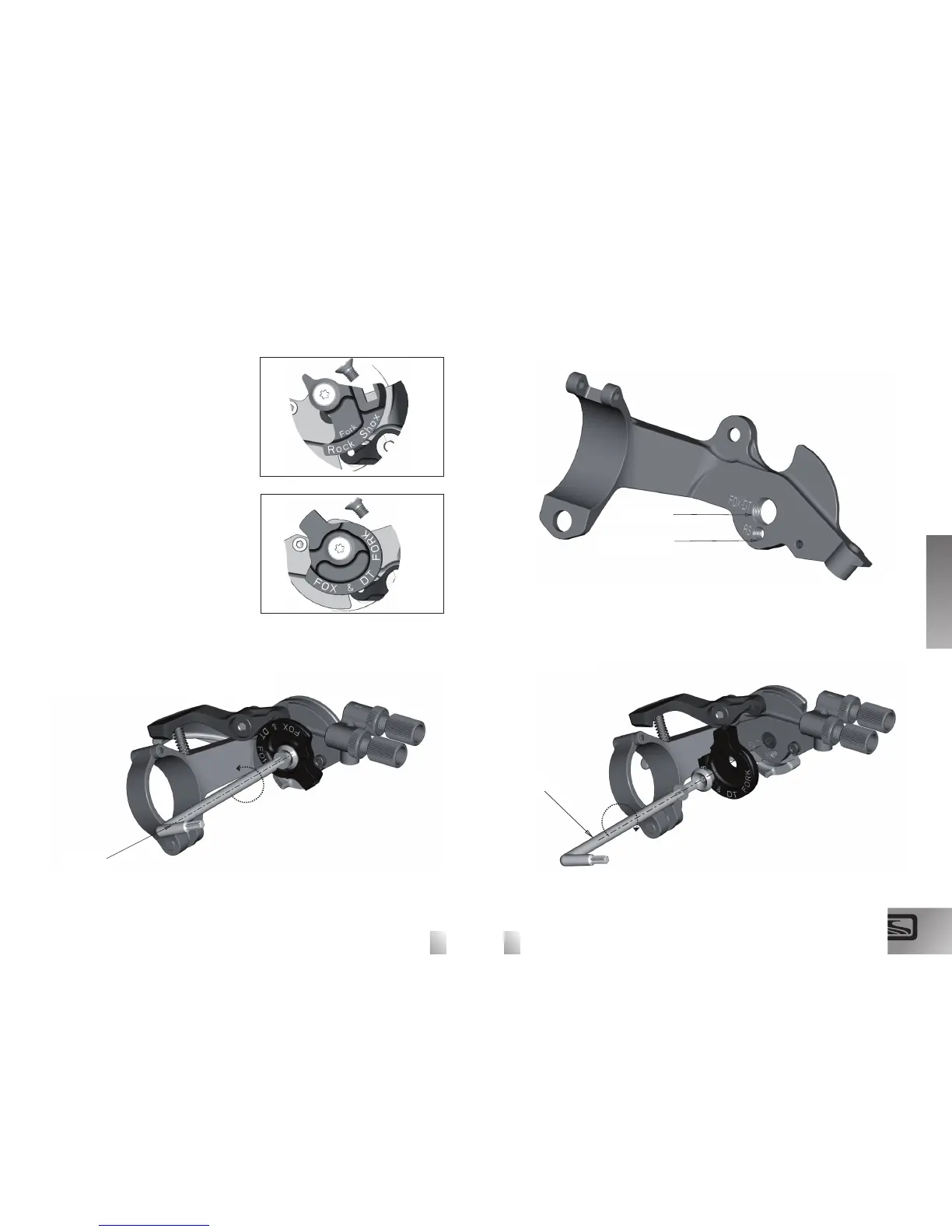

For the assembly of the remote control of the
front fork lock-out 2 different cable systems are
existing.
The different roll for the pull of the fork remote
cable can be changed within few minutes to
adapt the lever to your fork model/brand.
You will see on the downside of the roll the
indication of fork brand.
To change the rolls to match another fork brand
pls follow the drawings below:
Dwg showing T10 key turning counter-clockwise
the mount screw (all related parts in explosion
view)
Roll fork mounting
Torx T10
Torx T10
Fox-DT Roll fork
fixation hole
Rock Shox Roll fork
fixation hole
Roll fork unmounting
