VOLTAGE FRENGLISH
BIKE OWNERS MANUAL

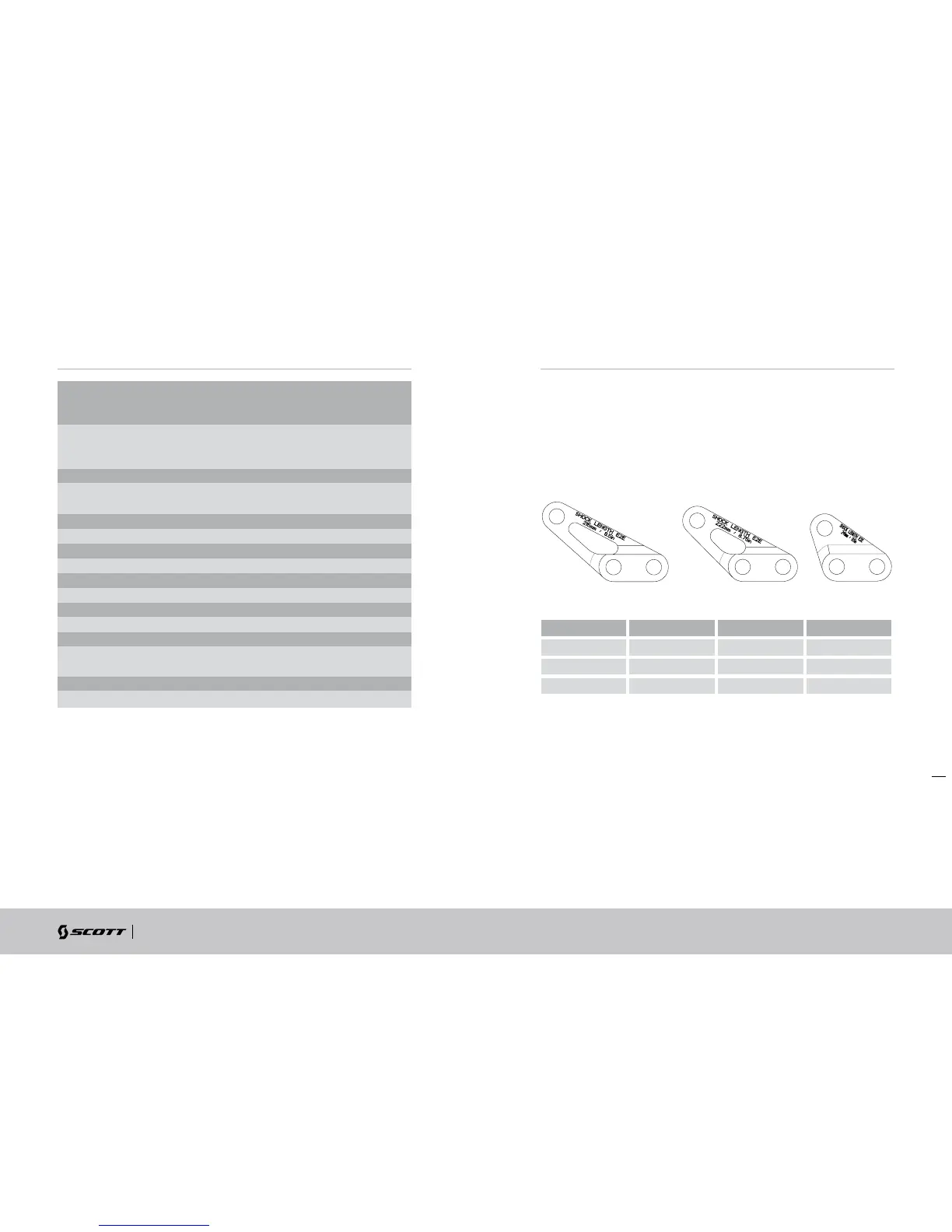

TECHNICAL DATA VOLTAGE FR ADJUSTABLE REAR TRAVEL
Depending on the different models of Voltage FR you’ll find different shock mounts
that will help to match the different shox (different eye-to-eye length) to the frames
without changing seat/headtube-angles or riding position on the bike.
In case you want to change the originally mounted shock model on the bike/frame set
to another model, please make sure that you always use the matching shock mount.
Those shock mounts are available as a set via your local Scott dealer.
Travel Frame only: 135 / 150
FR 10 / 20: 165 / 180
FR 30: 150 / 170
Suspension Ratio 241 / 76mm shock: 2.1 / 2.3
222 / 70mm shock: 2.2 / 2.4
215 / 63.5 shock: 2.1 / 2.3
Piston stroke 76 / 70 / 63.5mm
Shock length (Eye to Eye) 241 / 222 / 215mm,
please make sure to use matching shock mount!
Hardware Mainframe 22.2mm x 8mm
Hardware Swingarm 22.2mm x 8mm
Seatpost diameter 31.6mm
Headset 1.5”
Fork travel 160 - 200mm
Fork length 525 - 571mm
BB housing 73mm
Chainguide system ISCG / ISCG05 tab
Rear Hub Width 135mm
Bearings 2 x 61901 (24 x 12 x T6)
6 x 61902 (28 x 15 x T7)
Max tire width 64mm
Chainring size Single speed, 34 to max. 38T
SHOCKMOUNT SHOCK LENGTH E2E A : SHORT TRAVELB : LONG TRAVEL
215 215mm / 8.5in 140mm / 5.3in 150mm / 5.9in
222 222mm / 8.75in 150mm / 5.9in 170mm / 6.7in
241 241mm / 9.5in 160mm / 6.3in 180mm / 7.0in
SHOCKMOUNT 215
SHOCKMOUNT 222
SHOCKMOUNT 241
