ASSEMBLY
INSTALLING SIDE DISCHARGE CHUTE
(For Side Discharging Operation)
See figure 7
• Lift the side discharge cover (1).
• Align the grooves (2) on the side discharge
deflector (3) with the pins (4) on the underside of
the discharge cover (1).
• Lower the discharge chute until the hooks on the
mower deck are secured in the openings in the
discharge chute.
• Release the side discharge cover.
NOTE: When using side discharge, do not install the
grass catcher. Ensure the mulch plug is installed.
10
Model 60362S
INSTALLING THE GRASS CATCHER BAG
(For Rear Bagging Operation)
See figure 5
• Lift the rear discharge door (1).
• Lift the grass catcher by its handle (2) and place
under the rear discharge door so that the hooks (3)
on the grass catcher are seated on the door rod (4).
• Release the rear discharge door. When installed
correctly, the hooks on the grass catcher will extend
through the openings on the rear discharge door.
NOTE: When using the grass catcher, do not install
either the side discharge deflector or the mulching plug.
REMOVING/INSTALLING THE MULCHING PLUG
(For Mulching Operation)
See figure 6
The mulching plug must be removed in order to install
the grass catcher.
• To remove the mulching plug, lift the rear discharge
door (1).
• Grasp the handle (2) of the mulching plug. Lift and
pull the mulching plug out using the handle.
• The mulching plug (3) is inserted at an angle, so it
requires some force to remove it.
The mulching plug must be re-installed when the grass
catcher is removed.
• To install the mulching plug, lift the rear discharge
door (1).
• Grasp the handle (2) of the mulching plug. Lift and
insert the mulching plug in at an angle using the
handle.
NOTE: When mulching, do not install either the side
discharge deflector or the grass catcher.

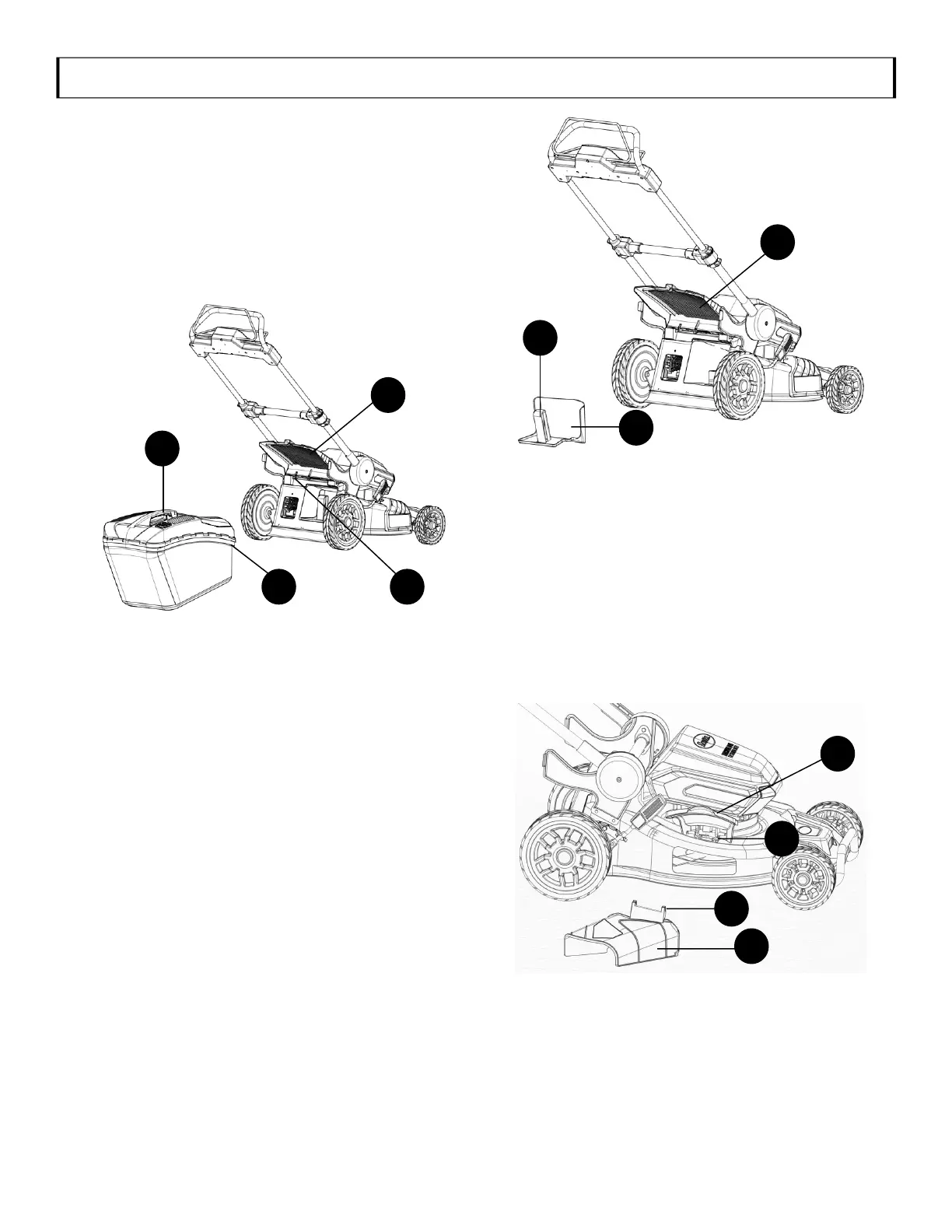

Fig. 5
1
2
3 4
Fig. 6
2
3
1
Fig. 7
1
4
2
3
