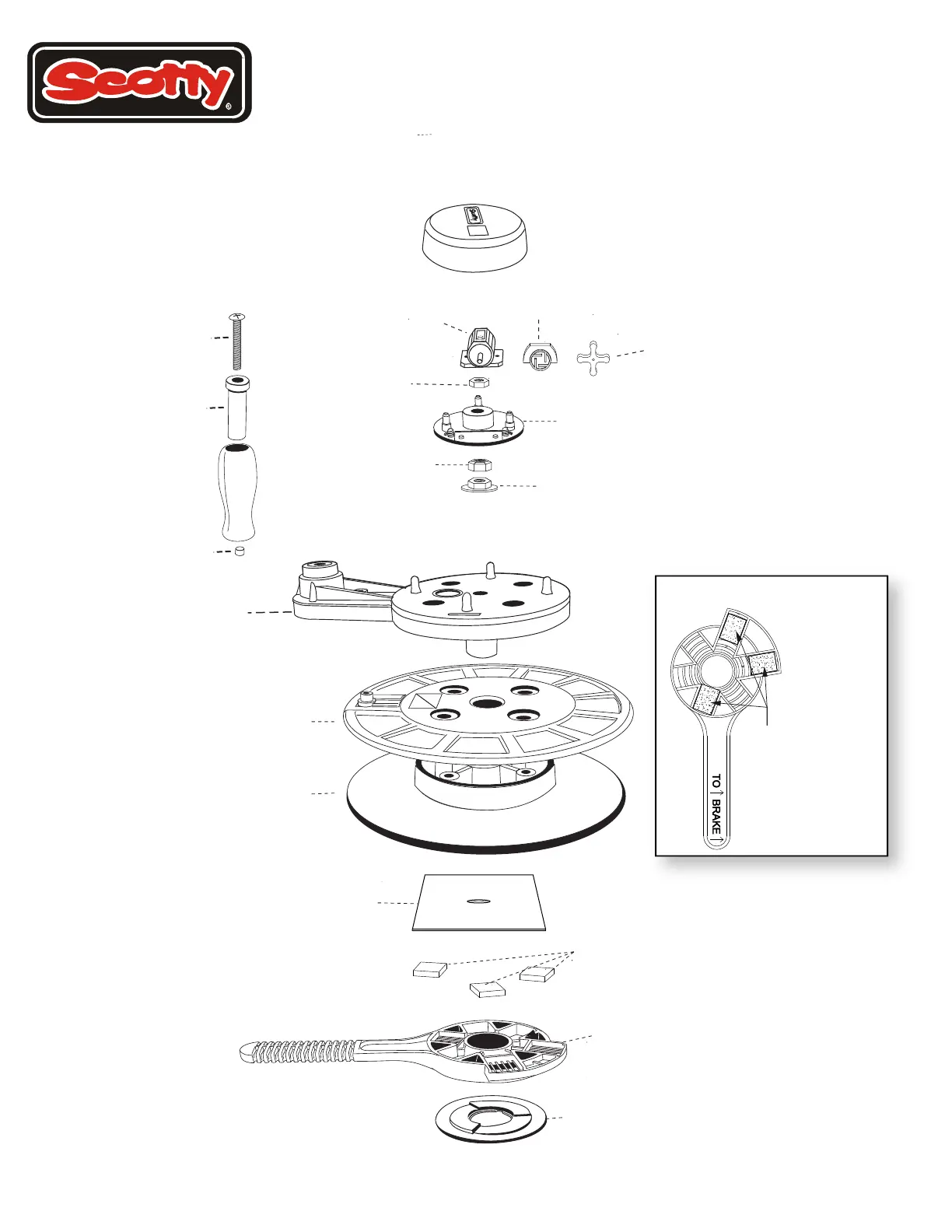

Scotty Downrigger - Spool Assembly Details

S-COUNTERBRK
COUNTER BRAKE
S-COUNTERSTAR
COUNTER STAR
S-BRKPAD.750X.80
BRAKE PAD, .7670 X .8055 X .25
S-HNDLBRKELEC
BRAKE HANDLE ELECTRIC
(see detail above)
S-SSCUT SQ4
BRAKE PLATE, STEEL, SQUARE, 4X4”
S-COUNTER
COUNTER ONLY
, BLACK, 3 DIGIT
S-CAM3RAMP
CAM PAD, 3 RAMP
DETAIL OF BRAKE HANDLE
BRAKE PAD PLACEMENT
(S-BRKPAD.750X.80)
PADS MUST BE ARRANGED
IN THIS MANNER FOR BRAKE
TO FUNCTION PROPERLY
Spool Assembly for :
1050
S-SPLPLTBOT
SPOOL PLATE BOTTOM
S-SPLPLTTOP
SPOOL PLATE TOP
S-HNDLLK PLUG
RED PILL FOR HANDLE LOCK
(1/2 SIZE)
S-HNDLARM/MASTER
HANDLE ARM HOUSING, DEPTH MASTER)
S-HNDLLK SPOL D-9
HANDLE SPOOL
S-SLEVHNDL
SLEEVE HANDLE
S-NUTJAMQLOC OC36
3/1616 Q-LOCK JAM HEX NUT
S-SUBWELDNUTMV
WELDED NUT AND FENDER
WASHER
S-NUTJAM38
3/6 - 16 JAM HEX NUT
S-COUNTERBASE
COUNTER BASE
S-SUBCOUNTERCVR
COUNTER COVER COMPLETE
S-MSRDSL1024x2
10X24X4 RD HEAD SLOT
MACHINE SCREW
