Scout Wifi onBoard User Manual

www.scoutantenne.com Page 4/8
WiFi + 4G onBoard

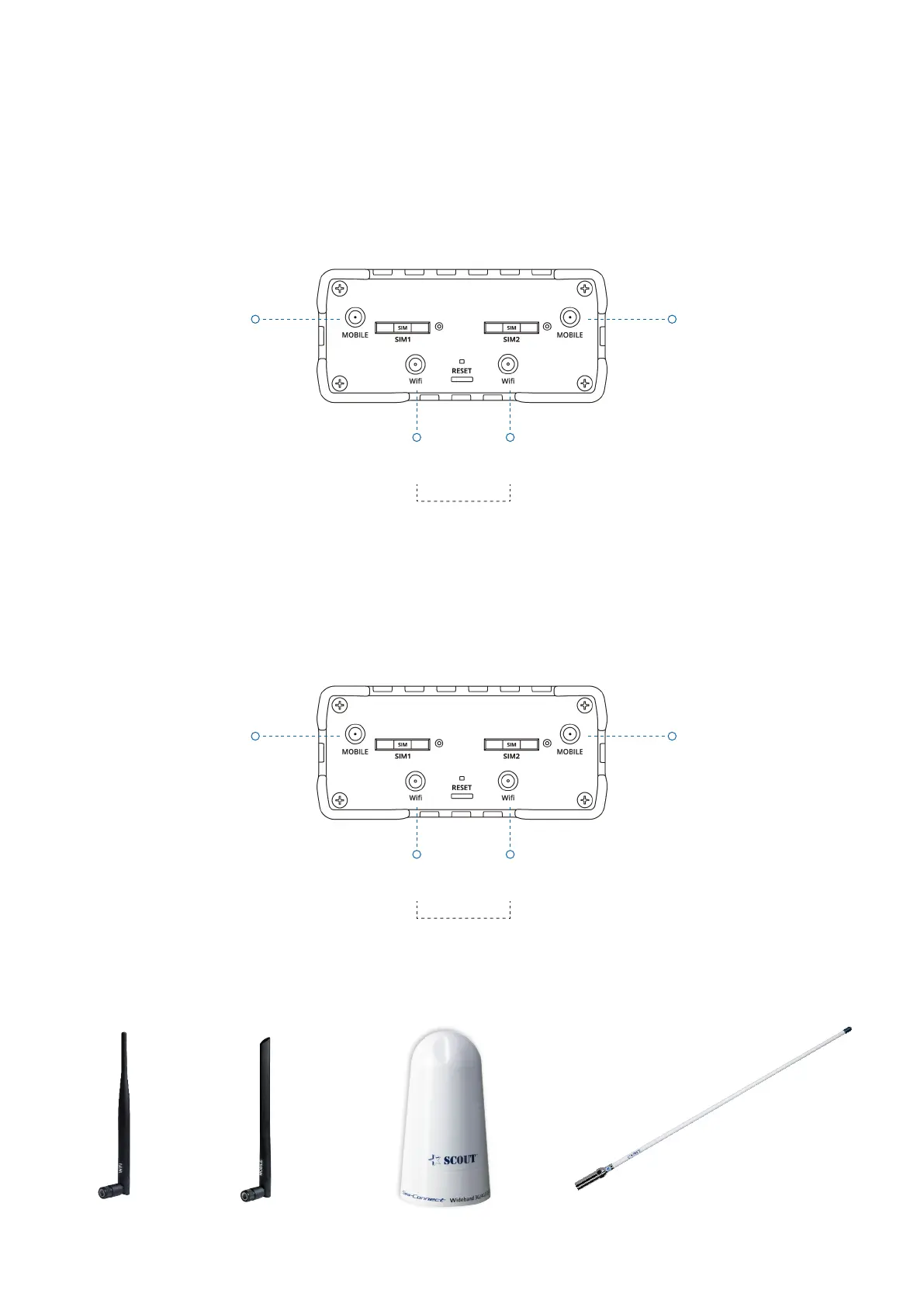

- connect one internal 4G/LTE rubber antenna marked “Mobile” to the Mobile AUX antenna connector;
- connect the external 4G/LTE antenna to the Mobile MAIN antenna connector;
- connect the external WiFi antenna to one of the two WiFi antenna connectors;
- connect one internal WiFi rubber antenna to the other WiFi antenna connector.
Internal 4G/LTE
rubber antenna
External 4G/LTE
antenna
Internal WiFi
rubber antenna
External WiFi
antenna
(inversion allowed)
WiFi + 4G onBoard
- connect the two external 4G/LTE antennas to the Mobile antenna connectors;
- connect the external WiFi antenna to one of the two WiFi antenna connectors;
- connect one internal WiFi rubber antenna to the other WiFi antenna connector.
External 4G/LTE
antenna
External 4G/LTE
antenna
Internal WiFi
rubber antenna
External WiFi
antenna
(inversion allowed)
Plus
Antennas reference
External 4G/LTE
antenna
External WiFi
antenna
Internal WiFi
rubber antenna
Internal 4G/LTE
rubber antenna
WiFi + 4G onBoard - Quick start guide
