Left Box: Side 1
Small base support pins

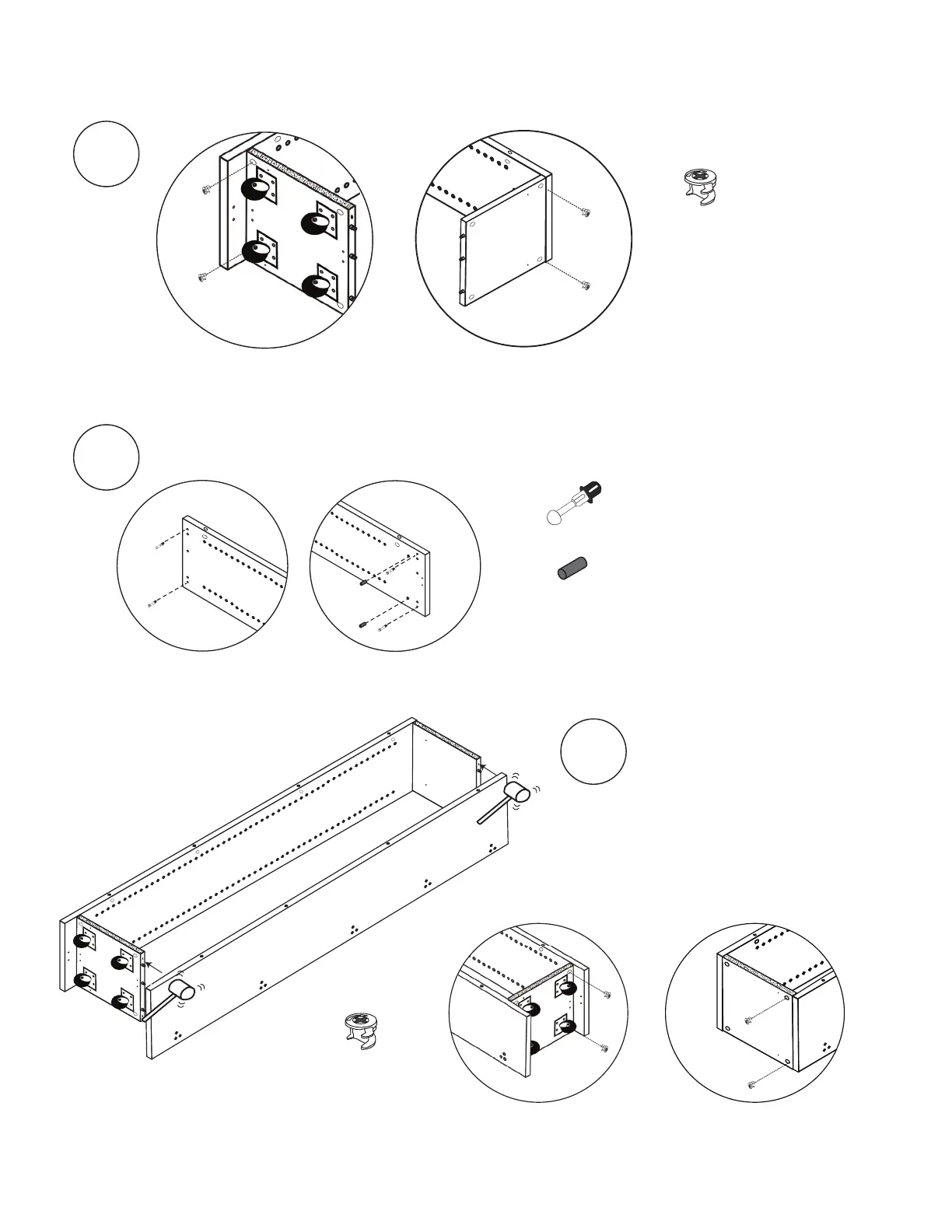

Install small base support pins and posts into
Insert Cams into bottom
side of Base and top
side of Lid. Turn Cams
with Allen Wrench
until locked in place.
BOTTOM of Side 1 as shown.
Install posts into TOP of Side 1 as shown.
x2
Left Box
Side 1
Use mallet to carefully tap Side 1
into the post holes on Base and Lid.
Insert & use Allen Wrench to lock
2 more Cams on Base.
Repeat for Lid.
BASE LID
Locking
Cams
x4
Locking
Cams
x4
BASE LID
x4
Posts
BOTTOM
TOP
To Next Page
