Page 12 - A777, A20, G777, G27

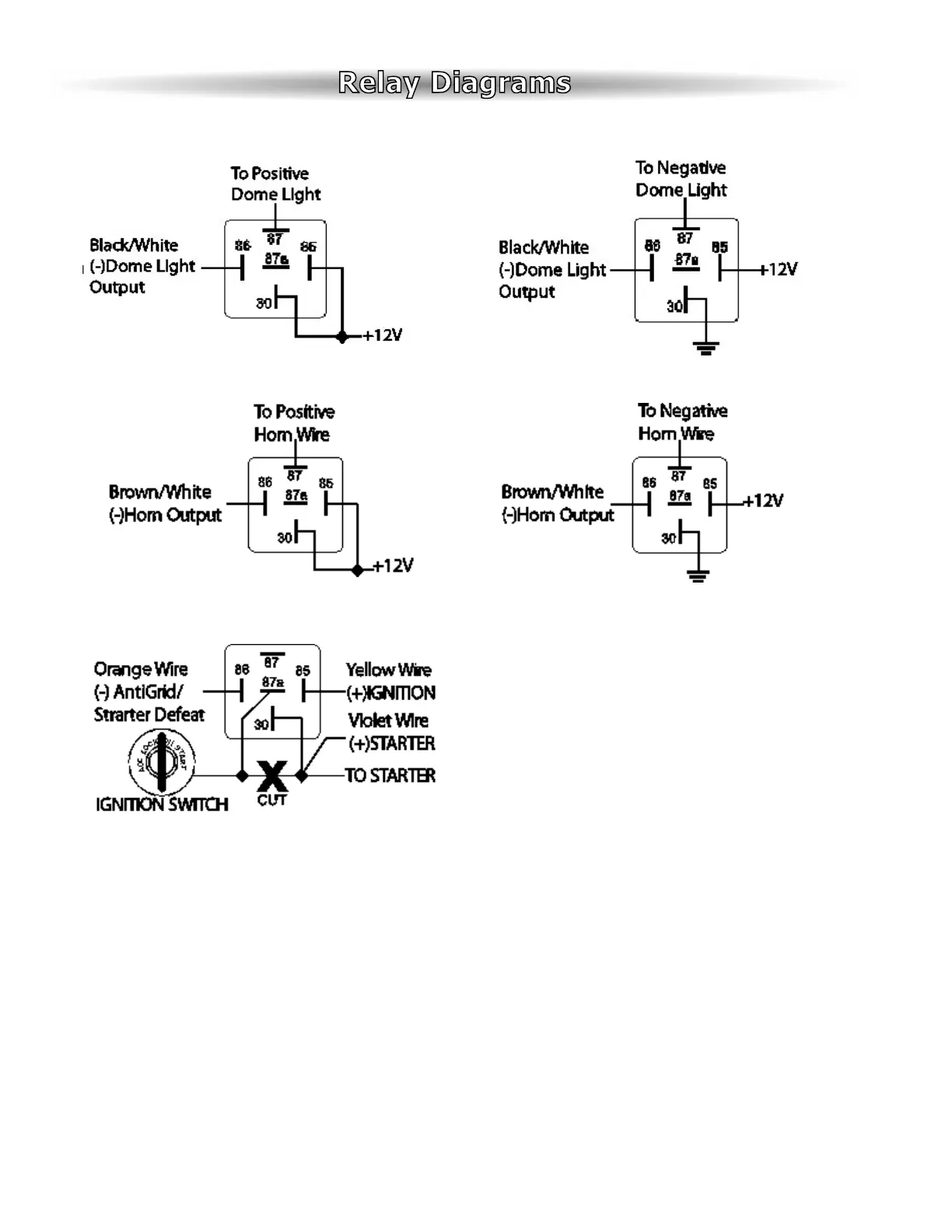

Positive Dome Light Activation Negative Dome Light Activation
Starter Defeat/Anti-Grind
Negative Horn Honk
Positive Horn Honk
