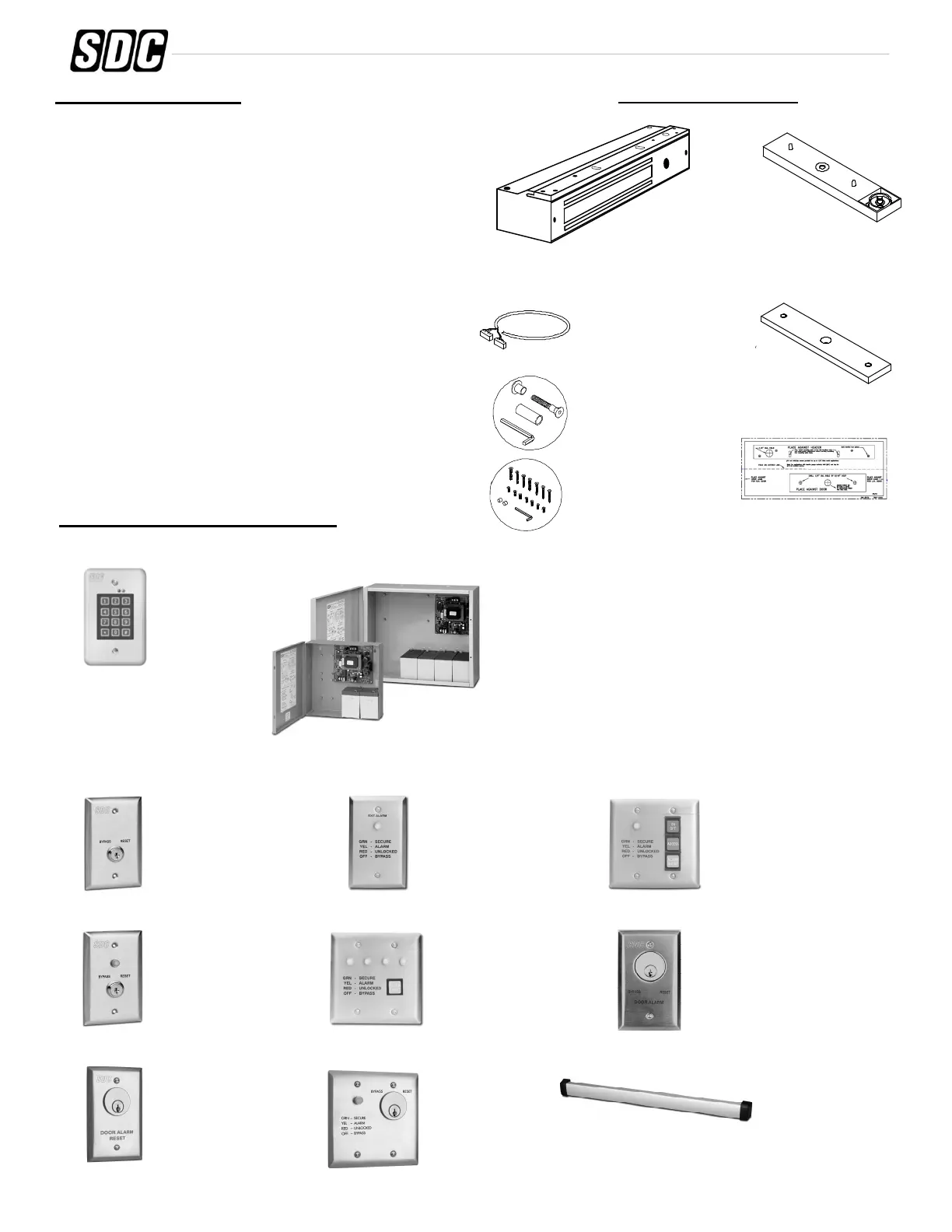

Included in Package
ARMATURE
SCREW PACK
1580S-101-C
1581S Specifications
Interior Applications Only
Size: 10"L x 2-1/8"H x 2-3/8"D
Power/Current Requirements:
- 12 - 24VDC Auto-sensing
- 320 mA @ 24VDC
- 600 mA @ 12VDC
Lock Status Relay Rating: 1 amp @ 30V resistive
DPS Rating: 250 mA @ 30V resistive
BAS Option: 250 mA @ 30V resistive
ARMATURE PLATE
1581S-10T
EMLOCK
SCREW PACK
C-1500-RF
TEMPLATE
TEMP-1581S
CONTROLLER
CABLE ASSEMBLY
CA-1581S
1581S EMLOCK
HOUSING ASSY. &
MOUNTING PLATE
TRIGGER BLOCK
ASSY 1580S-11
Note:
A remote key switch, keypad, or push
button (see models below) MUST be
provided and purchased separately to
operate the Reset and REX Functions.
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
918 Digital Keypad
Two relay outputs:
Relay 1 -Reset;
Relay 2 – Choice of
momentary or
sustained bypass.
Digital Entry
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-1581S REV F2 12-22 Page 3
728RU
Single station two
function key switch
control for alarm
reset and access or
sustained bypass.
101-4AM
Provides visual &
audible annunciation
with audible mute for
up to four openings.
728RUL3
Single station two
function key switch
control for alarm reset
and access with a tri-
colored LED showing
door condition.
702RU
Single station one
function key switch
control for alarm reset.
101-1A
The single station
annunciator is
equipped with a tri-
colored LED and
audible alarm.
101-1AK
Visual & audible
annunciation and a
two function key
switch for alarm reset
and access or
sustained bypass.
101-PAM
Visual & audible
annunciation, timed
access, sustained
bypass and audible
mute.
Suggested Optional Equipment
Power Supply
Station Controls, Annunciator Panels, and Consoles
600 Series Power Supply
Field Selectable 12 or 24VDC modular Power Supplies with
Fire/Life Safety Emergency Release. Tri-colored LED,
separate PTC protected battery charger, and Class 2 Outputs.
602RF 1 Amp
631RF 1.5 Amp
632RF 2 Amp
634RF 4 Amp
636RF 6 Amp
PSB560
Request-to-exit touch
sense non-latching bar
that will activate the
Exit Check
®
when
slight pressure is
applied to the bar. For
doors without latching.
707RU
Single station two function key switch
control for alarm reset and momentary
authorized access.
708RU
Single station two function key switch
control for alarm reset and sustained
bypass.
To Next Page
