4-7/8"
3-17/32"
C
L
Strike
Lock
C
L
3/8"
3/8"
2X Ø 1" Holes
1-1/8" Deep
C
L
Jamb

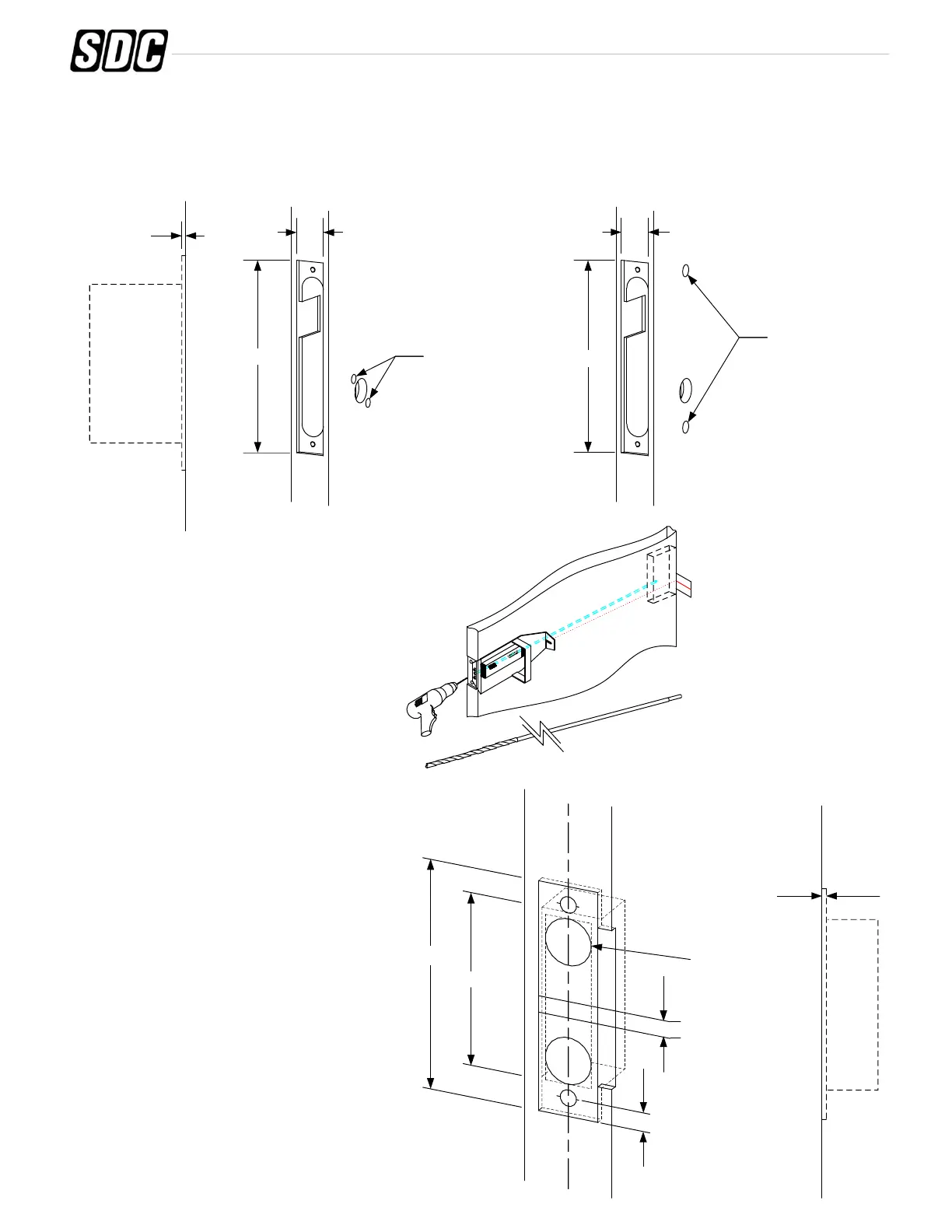

A. Door Preparation (Continued)
3. Mortise door edge according to measurements on installation template and drill proper holes for trim.
Dimensions for face plate recess: L 8-1/32" x W 1-5/16" x D 7/32".
5/32"
7/32"
B. Strike & Dust Box Installation:
1. Align strike template on jamb. Be sure to
keep 3/8" distance between lock centerline
and strike centerline. Recess 5/32" for flush
fit of strike and dust box.
2. Mortise jamb according to supplied strike
template. Then fit strike and dust box into
frame and secure into place with supplied
screws.
Wire Raceway suggested for wood doors.
Optional:
SDC Door Core Drill Guide Kit
P/N: 7000-DGK
Rose Trim
Mounting Holes
8-1/32"
1-5/16"
Escutcheon Trim
Mounting Holes
1-5/16"
8-1/32"
