Barracuda 7200.7 Product Manual, Rev. E 9
2.9.1.1 Typical current profile

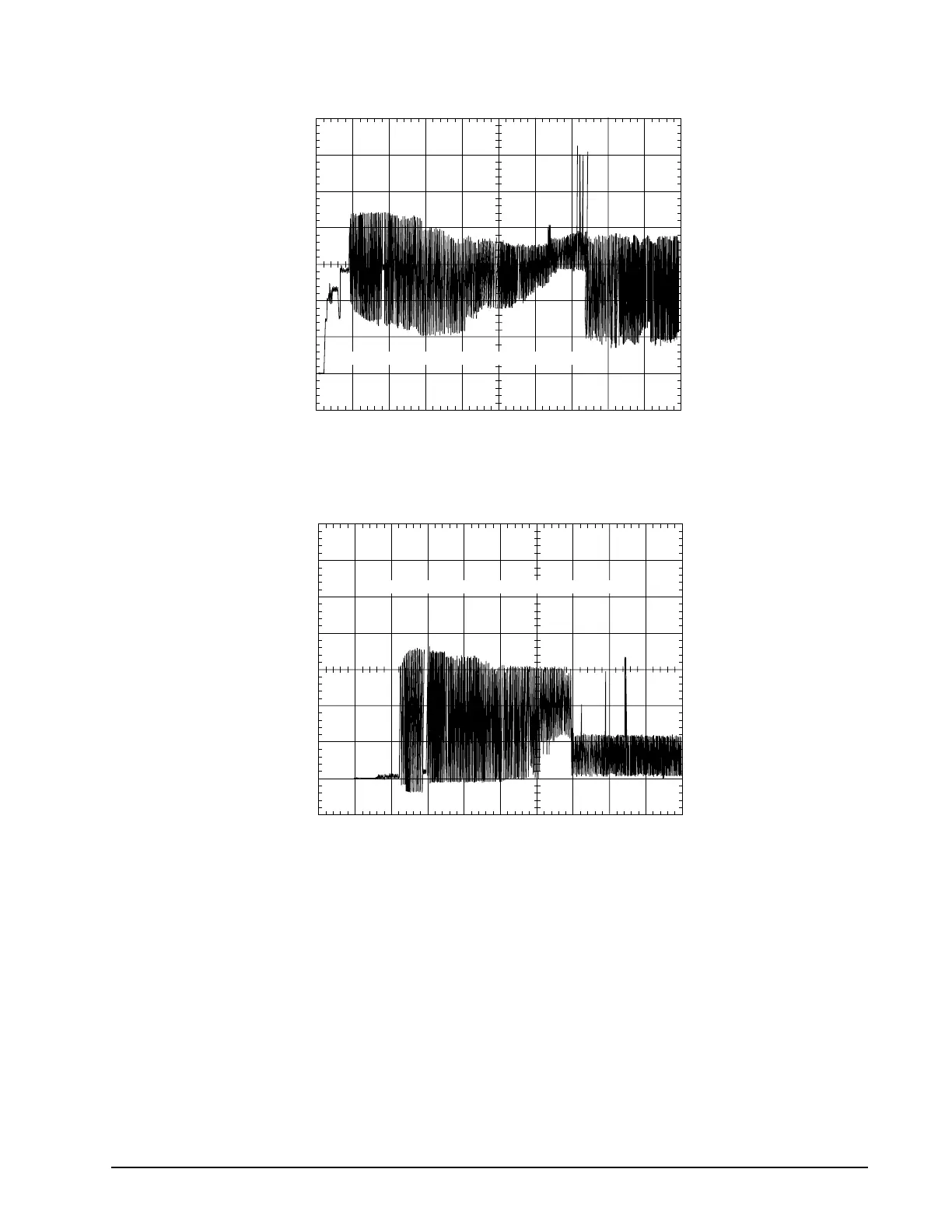

Figure 1. Typical 5V startup and operation current profile
Figure 1. Typical 12V startup and operation current profile
