INSTALLATION
MANUAL
Product: Document #: Rev: Page:
SEAKEEPER 6 90402 1 4 of 6
Section 1: MECHANICAL INSTALLATION

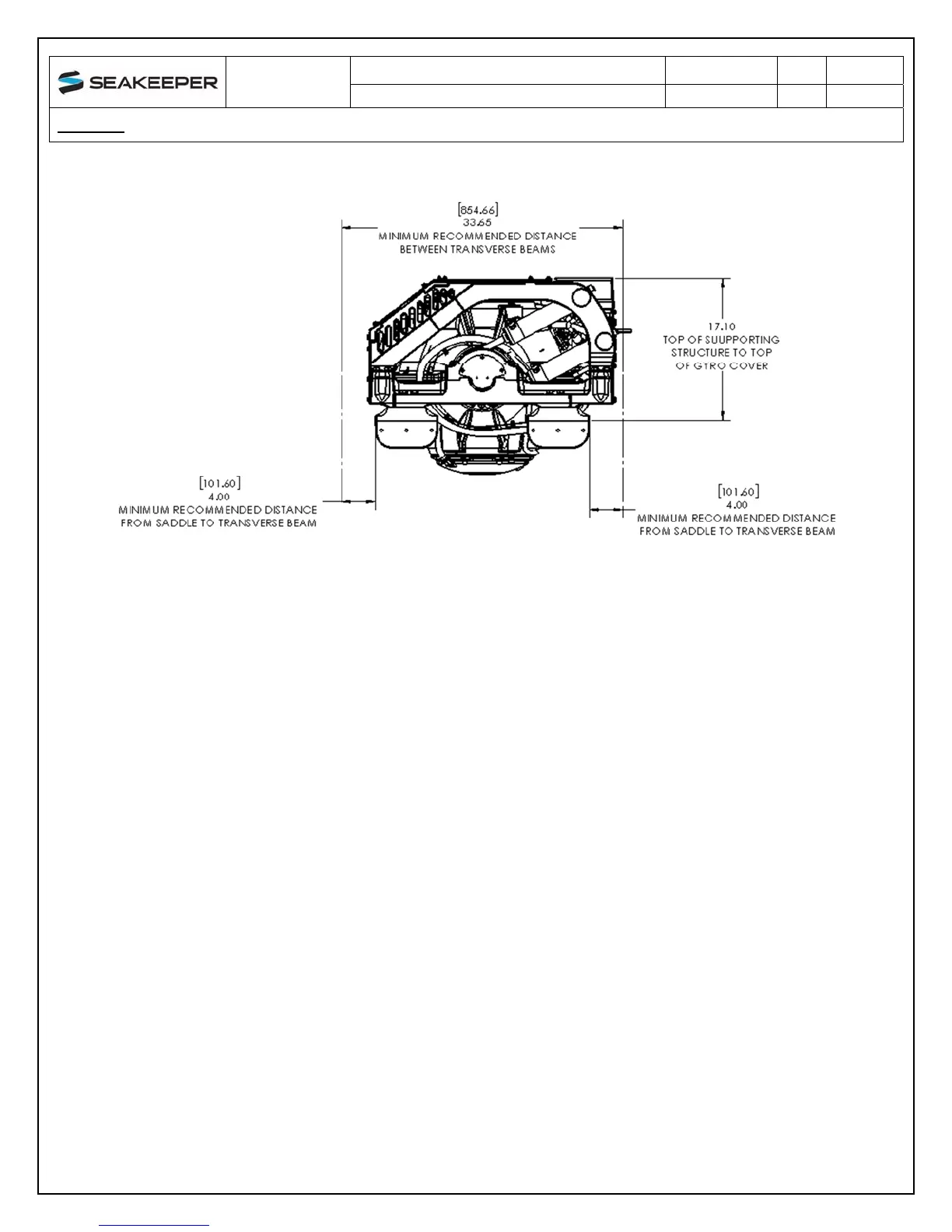

FIGURE 3 – TRANSVERSE BEAMS CLEARANCE CONSIDERATIONS
Refer to Figure 3 for recommended clearances to transverse beams. If a transverse beam is
located under the forward brace, it must be 4” (102 mm) from the edge of the saddle beams to
provide the necessary clearance for the swing of the motor power cable during precession.
Clearances aft of the Seakeeper are shown to provide access for maintenance.
