Sealey ATV1135.V2 - Winch Installation; 5. Installation

Line Pull And Capacity Per Layer Line Pull And Capacity Per Layer
Layer of Cable 1 2 3 4 5 Layer of Cable 1 2 3 4
Rated
Line Pull
Lb 2500 2033 1713 1480 1303
Rated Line Pull
Lb 4500 3691 3129 2715
Kg 1135 922 777 671 591 Kg 2043 1676 1421 1233
Cable
Capacity
Ft 7.9 17.4 28.2 40.7 45.9
Cable Capacity
Ft 11.5 25.6 42.6 55.8
M 2.4 5.3 8.6 12.4 14 M 3.5 7.8 12.9 17
5. INSTALLATION
5.1. WINCH INSTALLATION
5.1.1. Mount the winch on the vehicle or other xed installation by using M8 x1.25 x 30mm screws, M8 nuts, Ø8mm at and spring washers.

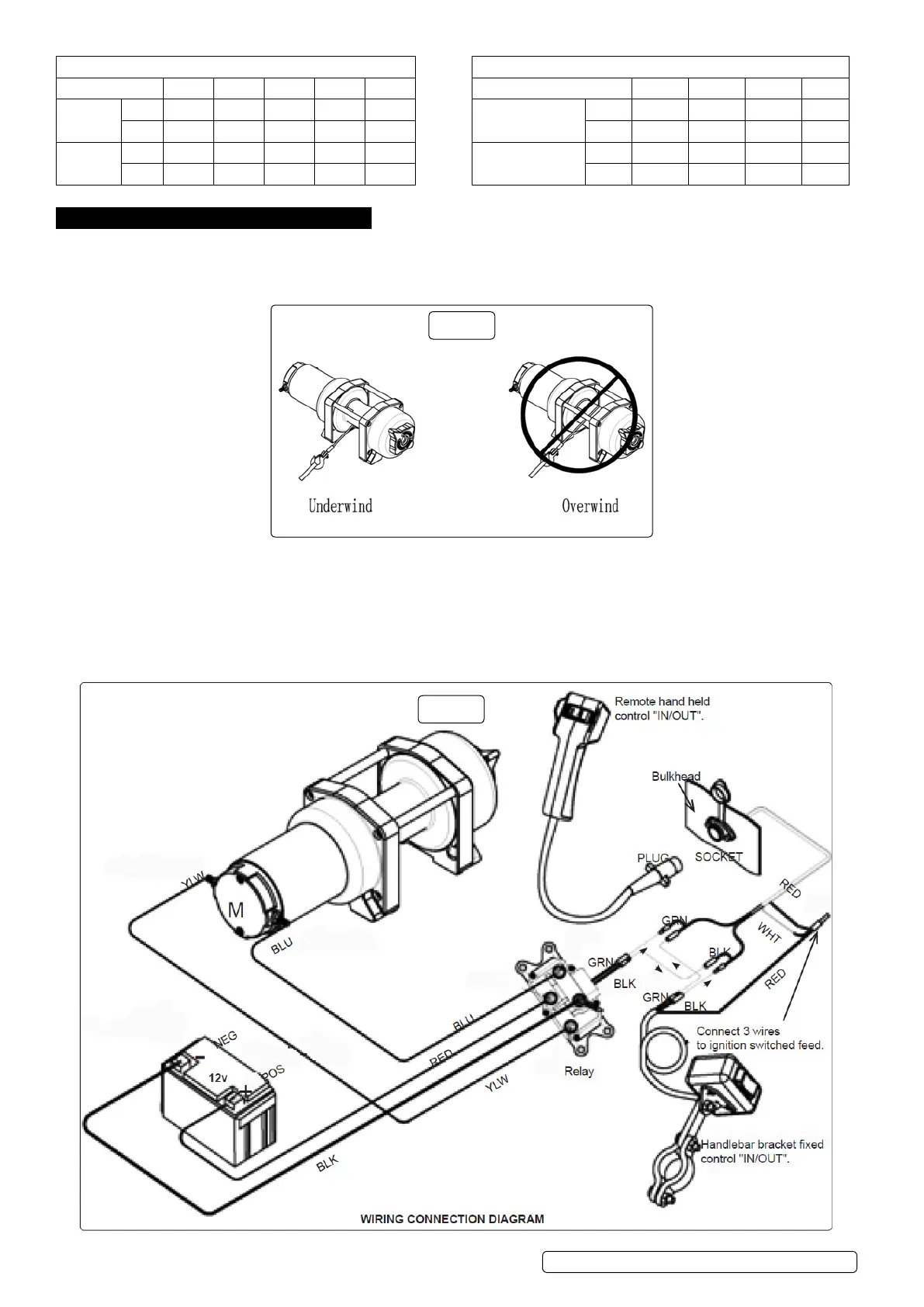

 WARNING! Mount the winch so that the wire rope underwinds. Improper mounting could damage your winch and void your warranty.
See fig.4.
5.2. ELECTRICAL INSTALLATION (REFER TO FIG.5)
 WARNING! These winches work on standard automotive 12V DC only, never connect to a 230V mains, as solenoid burnout or fatal
shock may occur.
NOTE: Make sure the battery is disconnected.
5.2.1. Plug the switch plug into the switch socket. Plug the green wire into the green wire on the relay block and the black wire into its connector
on the relay block.
5.2.2. Connect the red wire to the red marked terminal on the relay block and to the positive (+) terminal of the battery. Connect the black wire to
the negative (-) terminal of the battery.
g.4
g.5
