4.2. Preparing the Roof Parts

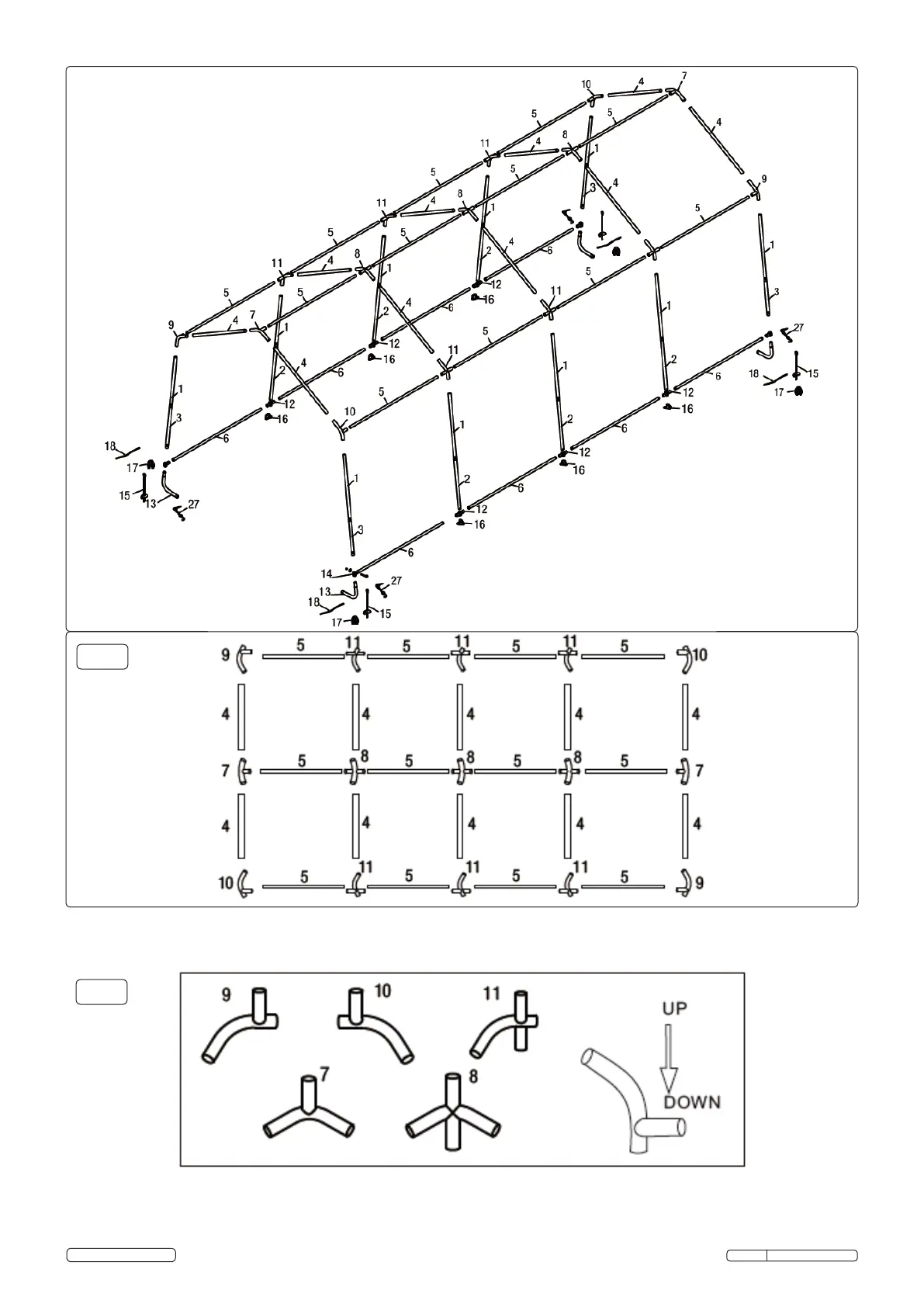

4.2.1. Select a level and suitable location for the shelter. Layout the roof parts as as shown in fig.1.
4.2.2. Please pay attention to the differences in the 5 connectors as shown in fig.2.
Note: 1. When installed the welded socket for the cross rail must be below the bend.
2. Parts 9, 10, 11 are side bend connectors with a sharp bend.
3. Parts 7 and 8 are top bend connectors with a sloping bend.
