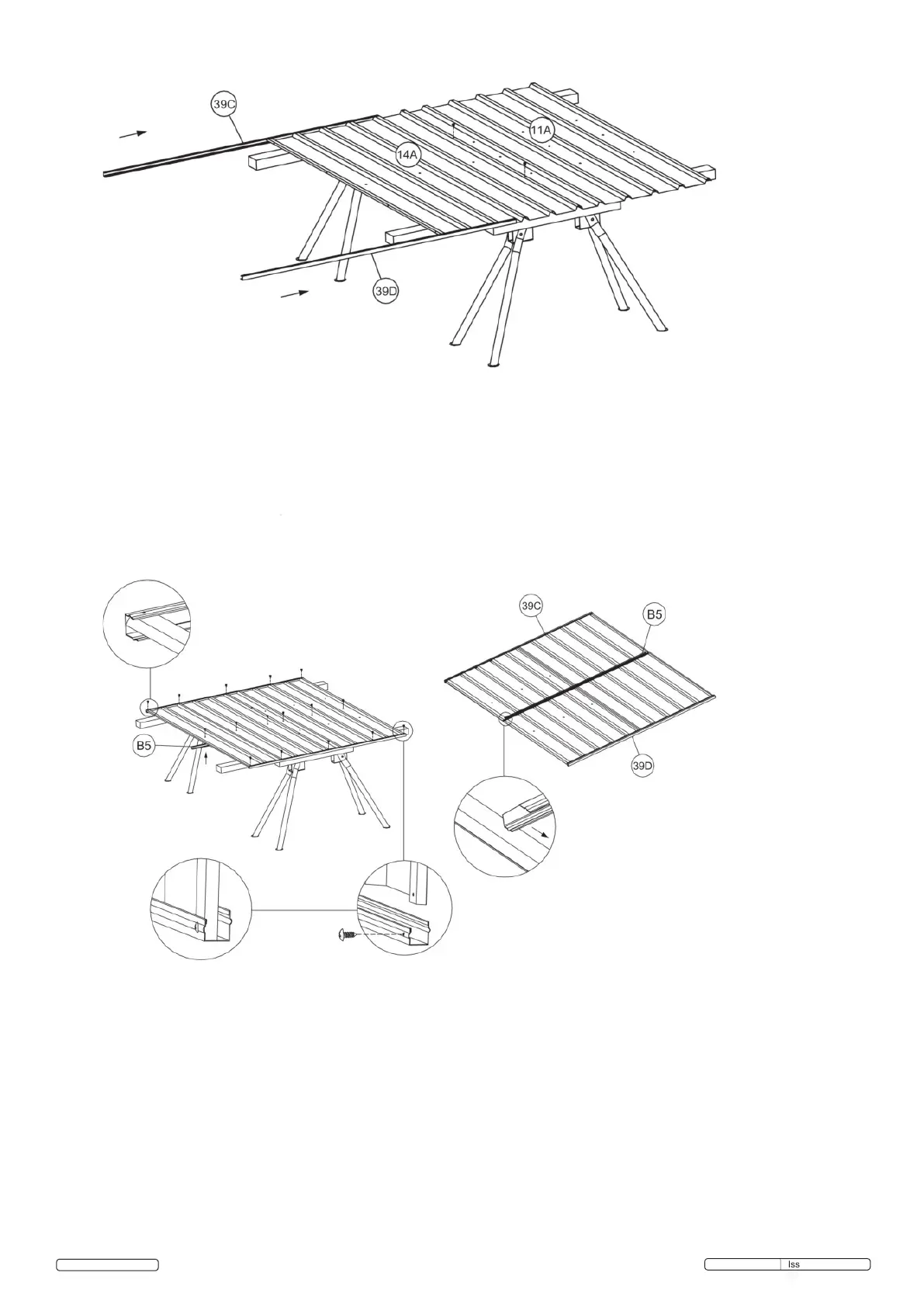

7.1.5 Fit item B5 the mid height wall channel to the panel and position it by the pre-punched holes and 10mm
 longselftappingscrews.Notethischannelisttedwiththeatfaceuppermost,ie.nearestthe“top”,when
the shed is assembled.
7.1.6 With10mmlongselftappingscrewsxitems39Cand39Dtotopandbottomedges.
GSS150815 Issue: 1 - 24/08/12
7.1.4 An alternative method is to slide channels 39C and 39D as indicated by arrows in diagram above.
