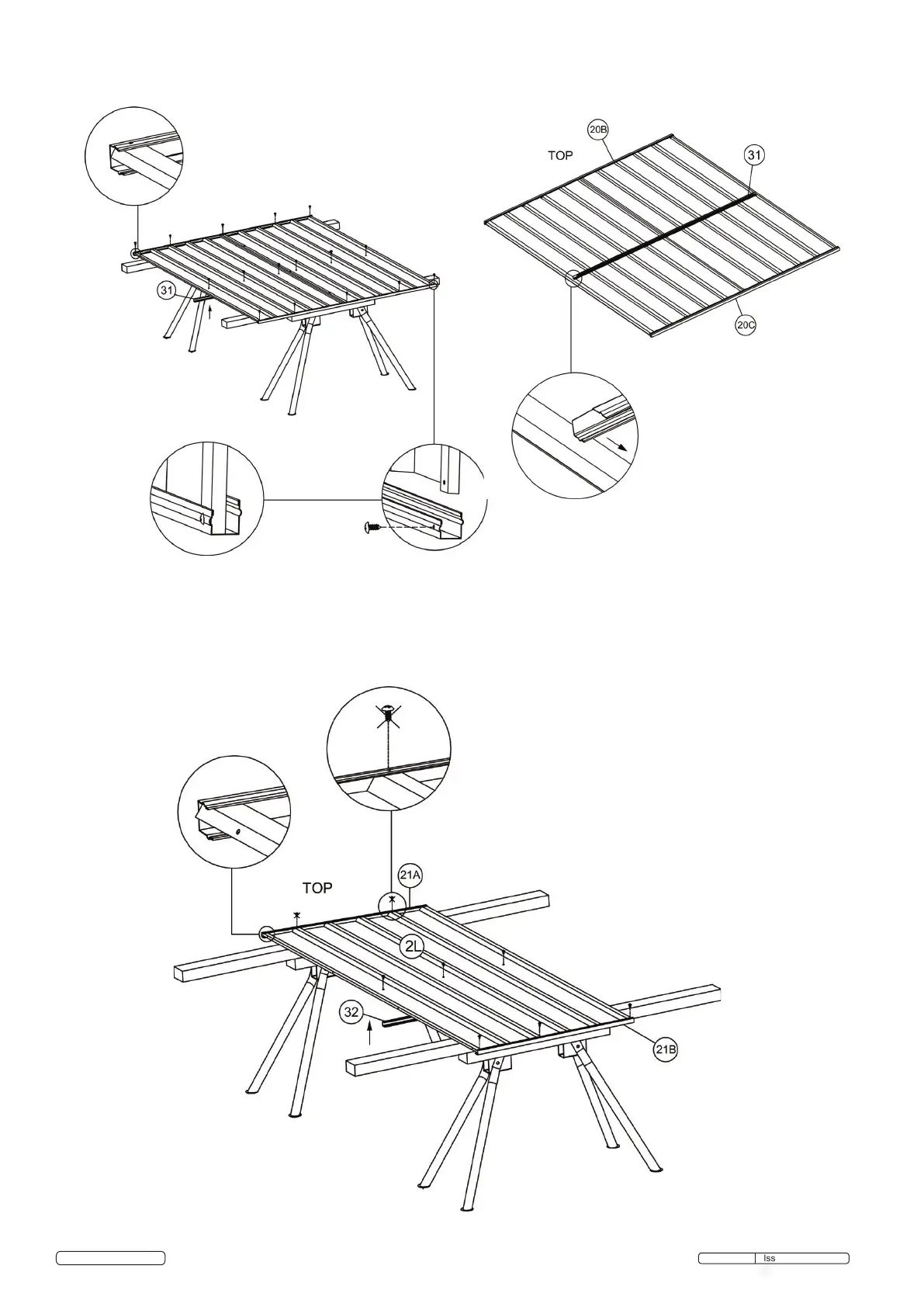

8.1.2. Now t 31 mid wall channel to the sheeting and secure it by the self tapping screws. Please note that the groove should face downwards.
Fix the top and bottom channels using the self tapping screws.
8.2. Side Wall Panels
Place 2L on your work table and tap or slide in 21A top channel and 21B bottom channel. Fix and position the 32 mid wall channel by the
self tapping screws. Fix 21B the bottom channel by the self tapping screws but NOT 21A the top channel in this stage.
Note that the small lip of the channel is always facing out. This is to ensure that rain water can not build up inside your shed. Repeat the
same steps
for 2L the other side wall.
