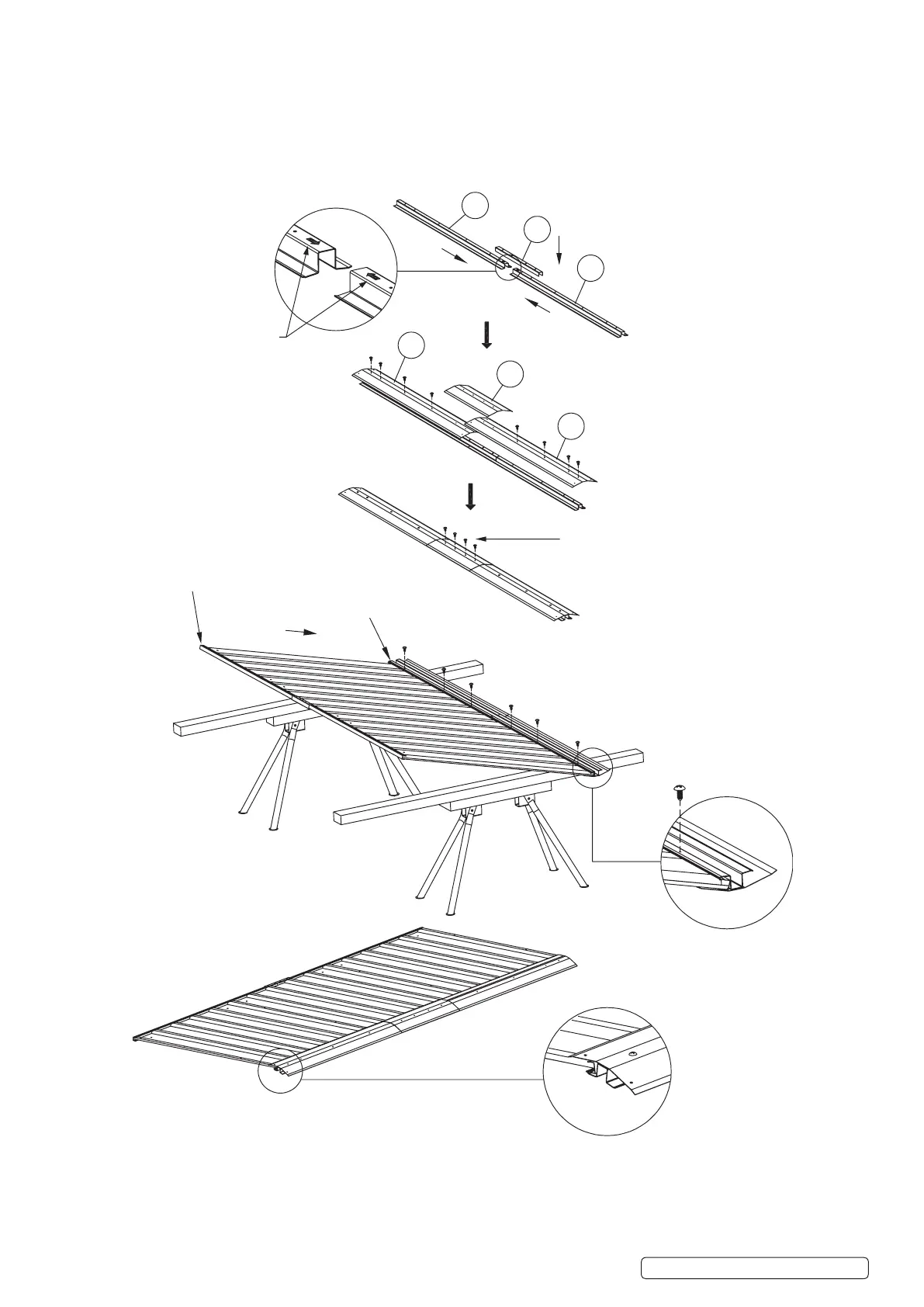

Step 7: Fit the panels together (continued)
Join 2 x part 62 (ridge beam) with the end marked with red arrow using part 67 (ridge beam connector). Put on 2 x part E2 (gable
cap) and join them using part E3 (gable cap connector). Fix this structure using the provided 16mm self-tapping screws.
Slide the side of the roof panel with channels 26E and 26F into the ridge beam.
PARTS 26A AND
26B (CHANNELS)
ON THIS END
PARTS 26E AND
26F (CHANNELS)
ON THIS END
FIX WITH 16MM
SELF-TAPPING SCREWS
RED ARROW END
GSS2323/G | Issue:2(SP) 13/04/17
Original Language Version
© Jack Sealey Limited
Step 7: Fit the panels together continued
Join 2 x part 62 (ridge beam) with the end marked with the red arrow using part 67 (ridge beam connector). Put on 2 x part E2 (gable cap) and
join them using part E3 (gable cap connector). Fix this structure using the provided 16mm self tapping screws.
Slide the side of the roof panel with channels 26E and 26F into the ridge beam.
