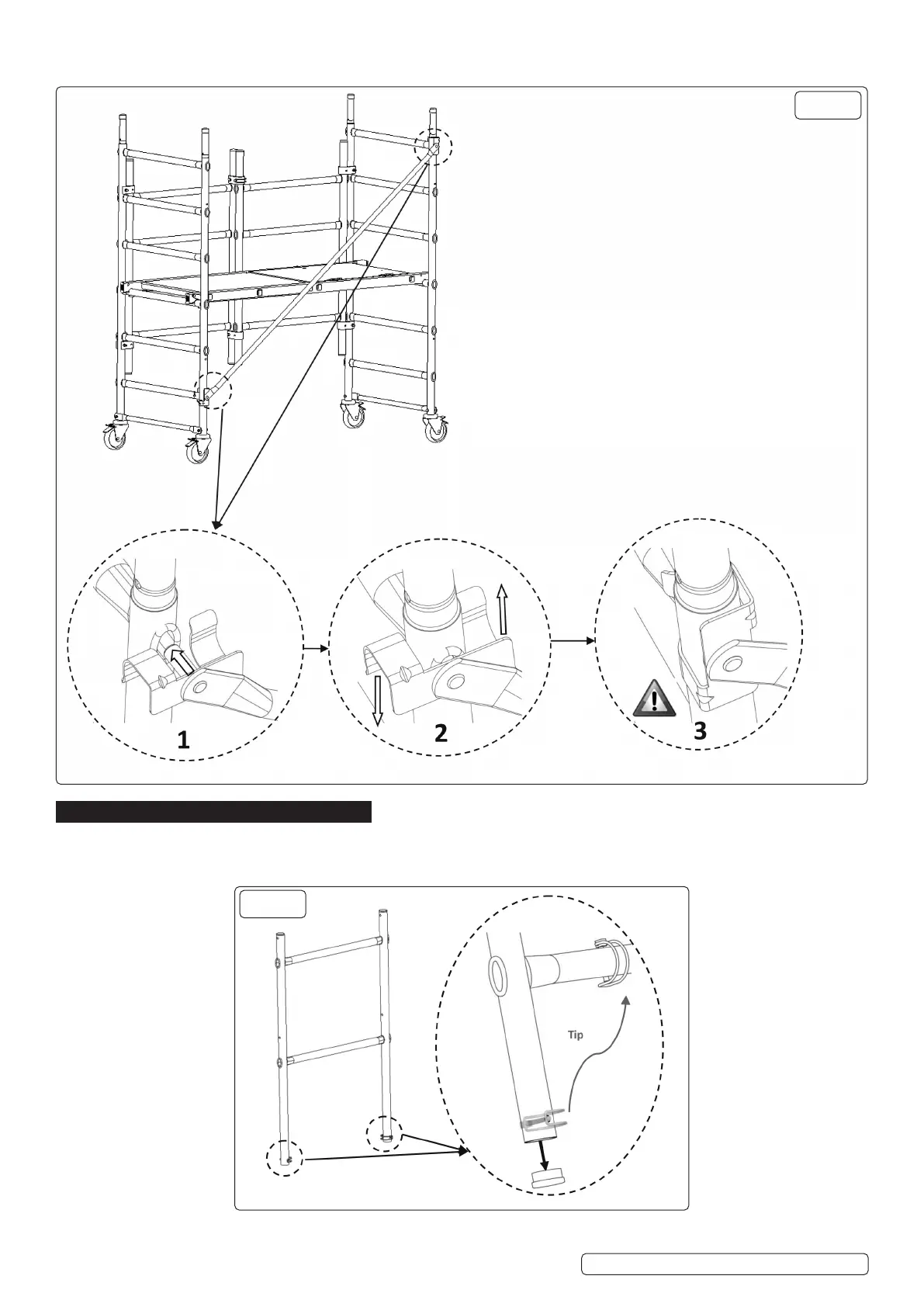

5.14. Mount the diagonal and then the brace following the instructions below (g.10).
5.15. Check the horizontal position of the base in both directions before continuing with the assembly.
6. ASSEMBLY SSCL3
6.1. Start from the base as assembled and attach the brace to the 1st rung.
6.2. Remove the pins and stoppers from the bases of the ‘2 rung’ ladders.
NOTE: x the pins around the bottom rung of the ladder to prevent it from being lost during handling (g.11).
g.10
g.11
Original Language Version
© Jack Sealey Limited
SSCL1.V2, SSCL3, SSCL4 Issue:4 28/06/21
