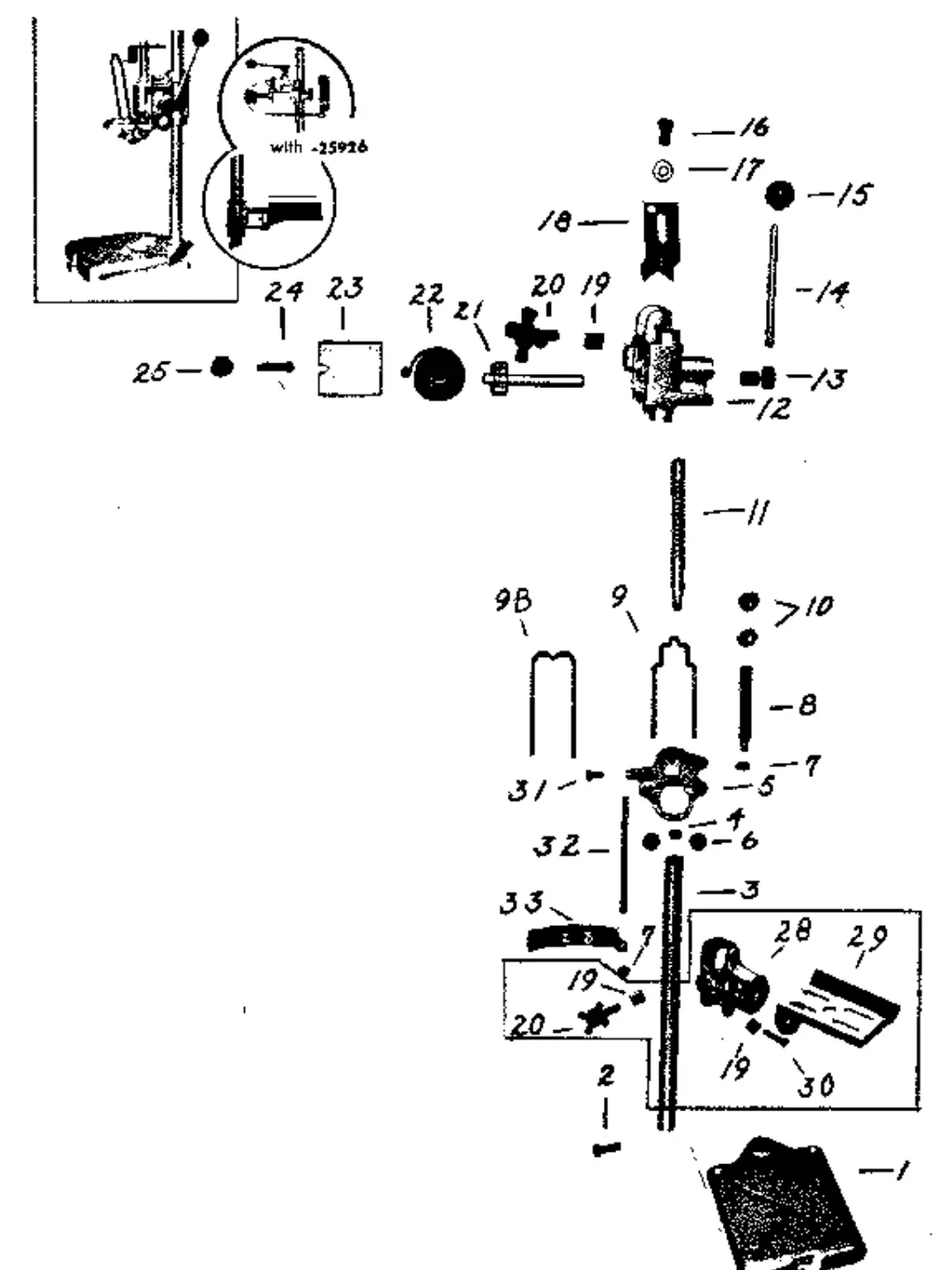

• 1 Base table Parts #: 4001
• 2 Set screw Parts #: 4002
• 3 Column Parts #: 4003
• 4 Hex nut Parts #: 4015
• 5 Holder plate Parts #: 4016
• 6 Wing nut Parts #: 4018
• 7 Hex nut, Parts #: 4020
• 8 Depth shaft Parts #: 4019
• 9 Draw rod Parts #: 4017
• 9B Draw rod Parts #: 4029
• 10 Lock nut Parts #: 4021
• 11 Drill rack Parts #: 4014
• 12 Head housing Parts #: 4007
• 13 Pinion collr Parts #: 4009
• 14 Shaft handle Parts #: 4010
• 15 Handle knob Parts #: 4011
• 16 Bracket screw Parts #: 4024
• 18 Bracket Parts #: 4022
• 19 Lock arm nut Parts #: 4005
• 20 Hed lock arm Parts #: 4004
• 21 Pinion gear Parts #: 4008
• 22 Pinion sprng Parts #: 4012
• 23 Spring cover Parts #: 4025
• 24 Lock screw Parts #: 4013
• 25 Acorn nut Parts #: 4023
• 28 Tilt housing Parts #: 4037
• 29 Tilt table Parts #: 4036
• 30 Table screw Parts #: 4038
• 31 Lock screw Parts #: 4504
• 32 Guard shaft Parts #: 4506
• 33 Guard Parts #: 4505
• Not Clip Parts #: 40-29-1
