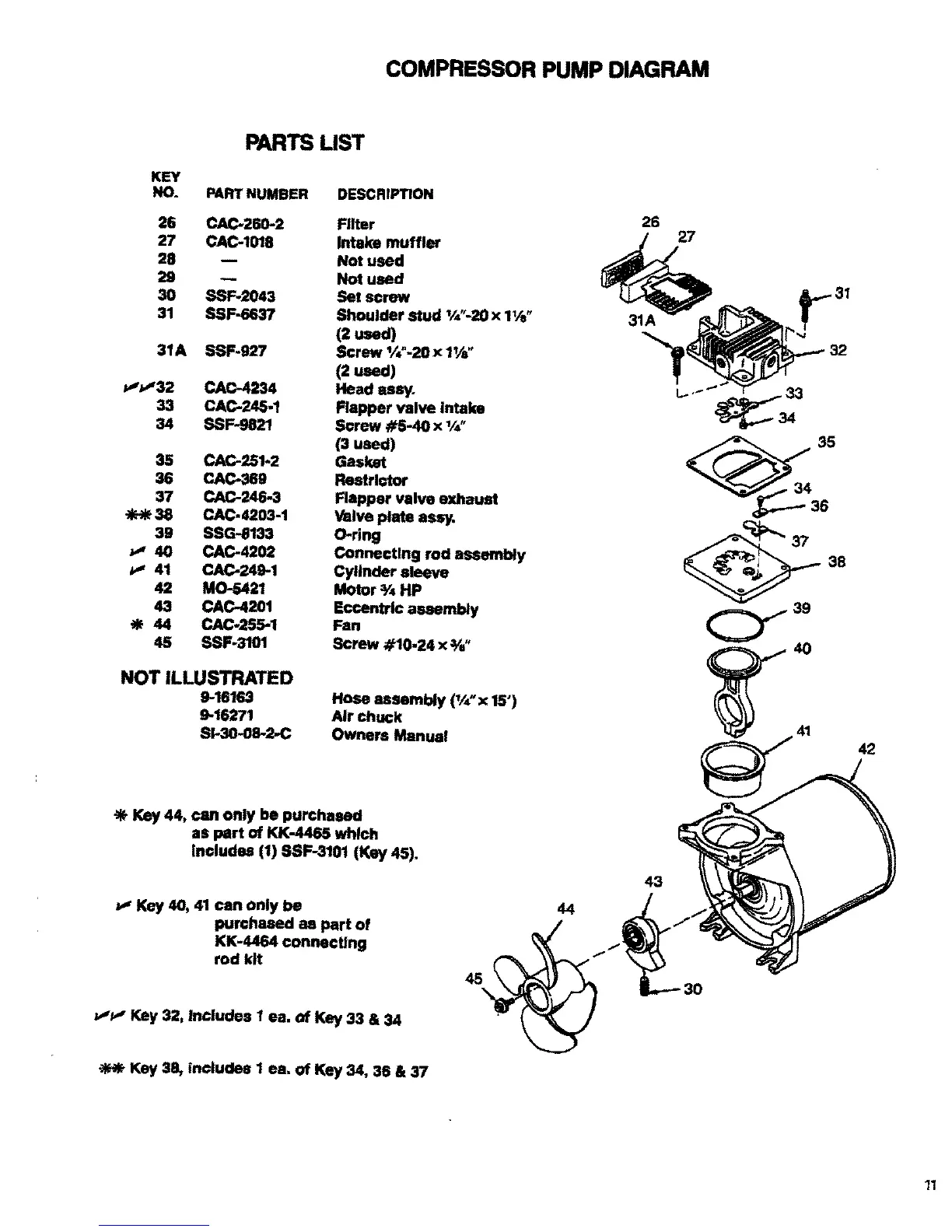

COMPRESSOR PUMP OIAGRAM
PARTS LIST
KEY
NO.
PARTNUMBER
26 CAC-280-2
27 CAC-1018
28
29
30 SSF-2043
31 SSF-6637
31A SSF-927
*,'n,'32 CAC-4234
33 CAC-245-1
SSF-98_!
35 CAC-251-2
36 CAC-38g
37 CAC-246-3
"_'_ 38 CAC.4203-1
39 SSG-8133
J" 40 CAC-4202
_" 41 CAC-249-1
42 MO-5421
43 CAC-4201
44 CAC-255-1
45 SSF-3101
DESCRIPTION
Filter
Intake muffler
Not used
Not used
Set screw
Shoulder stud _':20 x 11/e"
(2 used)
Screw %%20 x 11/8"
(2used)
Head essy.
Flapper valve intake
Screw #5-40 x _/4"
(3 used)
Gasket
Restrlntor
Flapper valve exhaust
Valve plate assy.
O-ring
Connecting rod assembly
Cylinder sleeve
MOtor % HP
ECcenb'Ic auembly
Fan
Screw #10-24 x %"
NOT ILLUSTRATED
916163
9-16271
$1-30-09-2-C
Hose assembly (_/,'x 15')
Air chuck
Owners Manual
26
31A
27
42
Key 44, can only be purchased
as part of KK-4485 which
includes (1) SSF-3101 (Key 45).
_," Key 40, 41 can only be
purshased as part of
KK-4464 connecting
rod kit
_,'_" Key 32, Includes Iea. of Key 33 & 34
Key 30, includes Iea. of Key 34, 36 & 37
44
43
11
