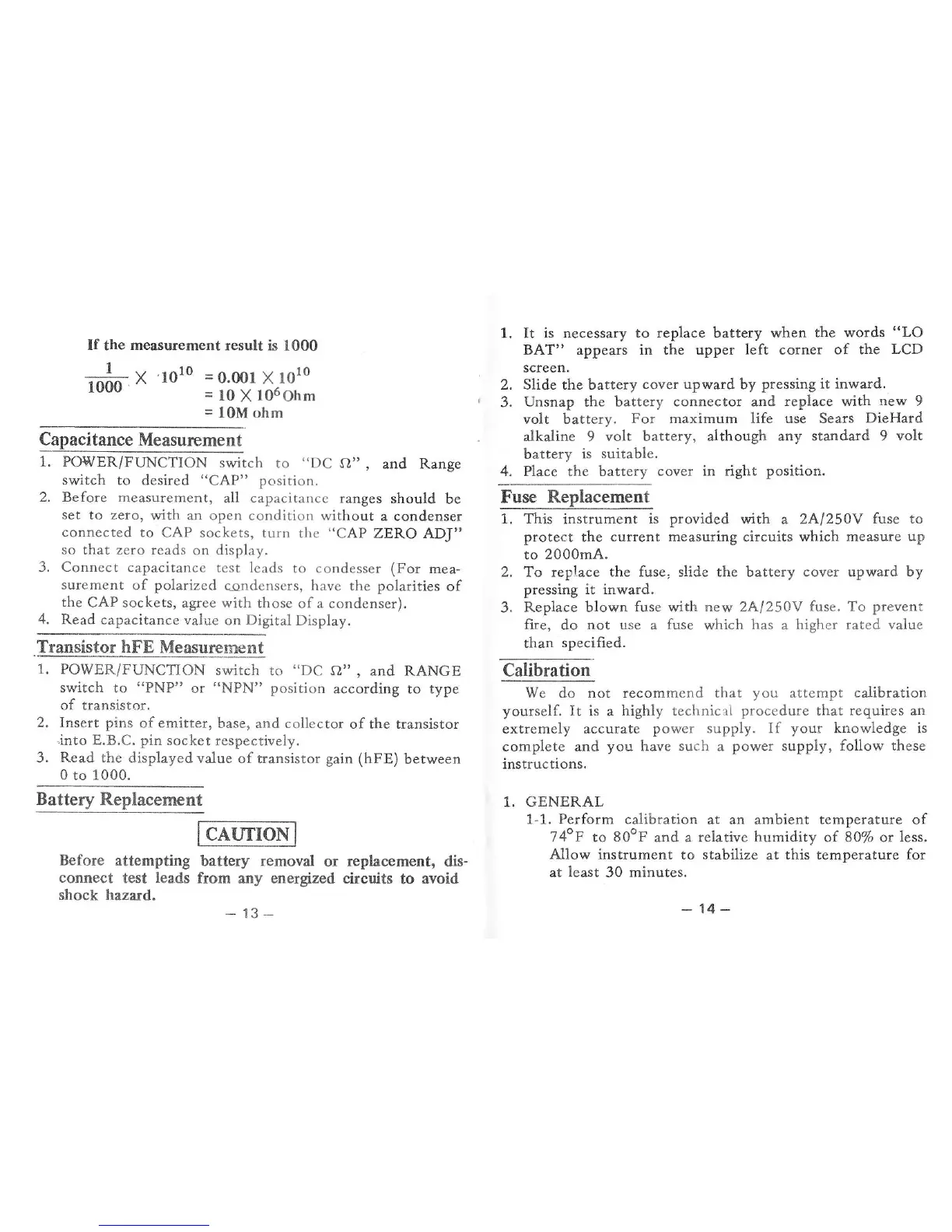

Capacitance Measurement
1.
POIIVER/FUNCTION
switch
to
"DC
S|"
,
and Range
switch
to desired
"CAP"
position.
2. Before
measurement,
all capacitance
ranges should
be
set
to zero,
with an open condition
without
a
condenser
connected
to
CAP sockets, rurn
the
"CAP
ZERO ADJ"
so that zero reads
on display.
3. Connect capacitance
test leads
to condesser (For
mea-
surement
of polarized
qondensers,
have
the
polarities
of
the
CAP sockets,
agree with those
of a condenser).
4. Read
capacitance
vaiue on Digital Display.
Tt*rtrt- ttFE N{""."*-""t
1.
POWER/FUNCTTON
switch
to
,
and RANGE
switch to
"PNP"
or
"NPN"
position
according
to
rype
of
transistor.
2. Insert pins
ofemitter,
base, and collector
ofthe transistor
jnto
E.B.C. pin
socket
respectively.
3. Read the displayed
value
of transistor
gain (hFE)
between
0 to 1000.
B"tt"ry
R"et"""-""t
lcAtrrroNl
Before
attempting
battery removal
or rephcement, dis-
connect
test leads from
any energized
circuits to
avoid
shock
hazard.
-
13
-
1.
2. Slide the
battery
cover upward
by
pressing
it inward.
3.
Unsnap
the battery
connector and replace
with
new
9
volt battery.
For
maximum
life use Sears
DieHard
alkaline 9
volt battery, although
any standard 9 volt
battery
is suitable.
4.
Piace
the battery
covet in right
position.
fry-R"PbIgggtI-
1. This
instrument
is provided
with a 2Al250V
fuse to
protect
the
current measuring
circuits
which measure
up
to 2000mA.
t
To
replace
the fuse, slide the battery cover upward by
pressing it inward.
Replace blown
fuse
with
new
2Al250V
fuse. To
prevent
fire, do
not
use a
fuse
which
has
a
higher rated value
than
soecified.
Calibration
We
do
not recommend that
yorl
attempt
calibration
yourself. It
is a
highly technicai procedure that
requires
an
extremely accurate
power supply. If
your
knowledge is
complete and
you
have such
a
power supply,
fol1ow these
instructions.
1. GENERAL
1-1.
Perform
calibration
at
an
ambient temperature of
74oF to
80oF
and a relative
humidity
of 80% or
less.
Allow instrument
to stabilize
at
this
temperature
for
at least 30 minutes.
If
the
measurement
result is
1000
| .^
,^*^
x
l0ro
=0.001
x1010
rvvv
=l0Xl06ohm
=
l0M
ohm
It
is
necessary
to replace battery
BAT"
appears
in the upper
left
scteen.
when the
words
"LO
corner
of the
LCD
-
14-
