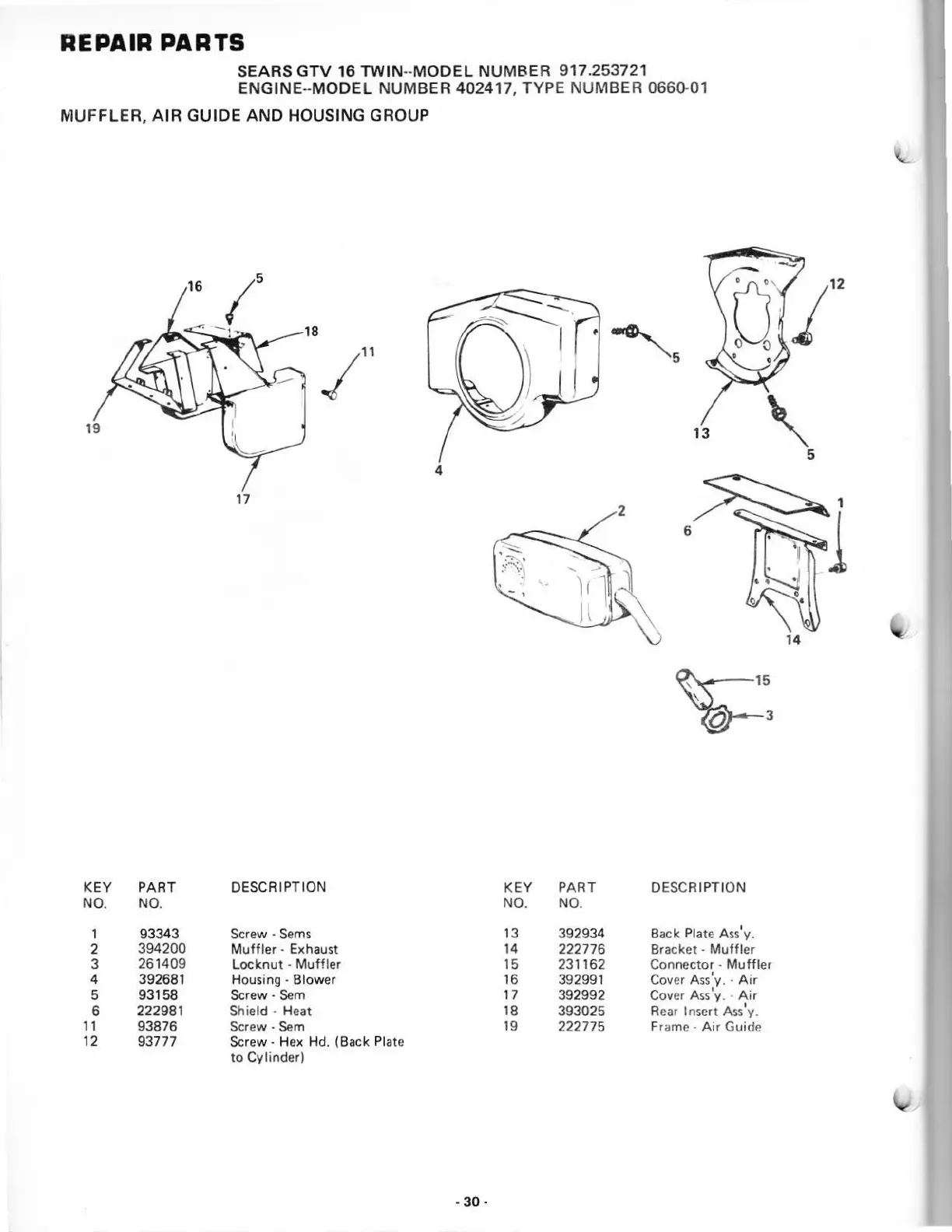

REPAIR PARTS
SEARS GTV 16 TWIN -- MODEL NUMBER 917.253721
ENGINE --M ODEL NUMBER 402417, TYPE NUMBER 0660-01
MUFFLER, AIR GUIDE AND HOUSING GROUP
4
17
~15
<g----3
KEY PART
DESCRIPTION
KEY
PART DESCRIPTION
NO. NO.
NO. NO.
1 93343 Screw· Sems
13 392934 Back Plate Ass'y.
2
394200
Muff ler · Exhaust 14 222776 Bracket · Muffle r
3
261409
Locknut · Muffler 15 231162 Connector · Muffler
4 392681 Housing · Blower 16 392991 Cov er Ass'y. · Air
5 93158 Screw· Sem 17 39 2992 Cover Ass'y. · Ai r
6
222981
Shield · Heat 18 393025 R ear Insert Ass 'y.
11
93876 Scre w · Sem
19
222775 Frame · Air Guide
12 93777 Screw· H ex Hd. (Back Pl ate
to Cylinder)
. 30.
14
