REPAIR
PARTS
SEARS
GTV
16 TWIN
--
MODEL NUMBER 917.253721
ENGINE- MODEL NUMBER 402417, TYPE NUMBER 0660.01

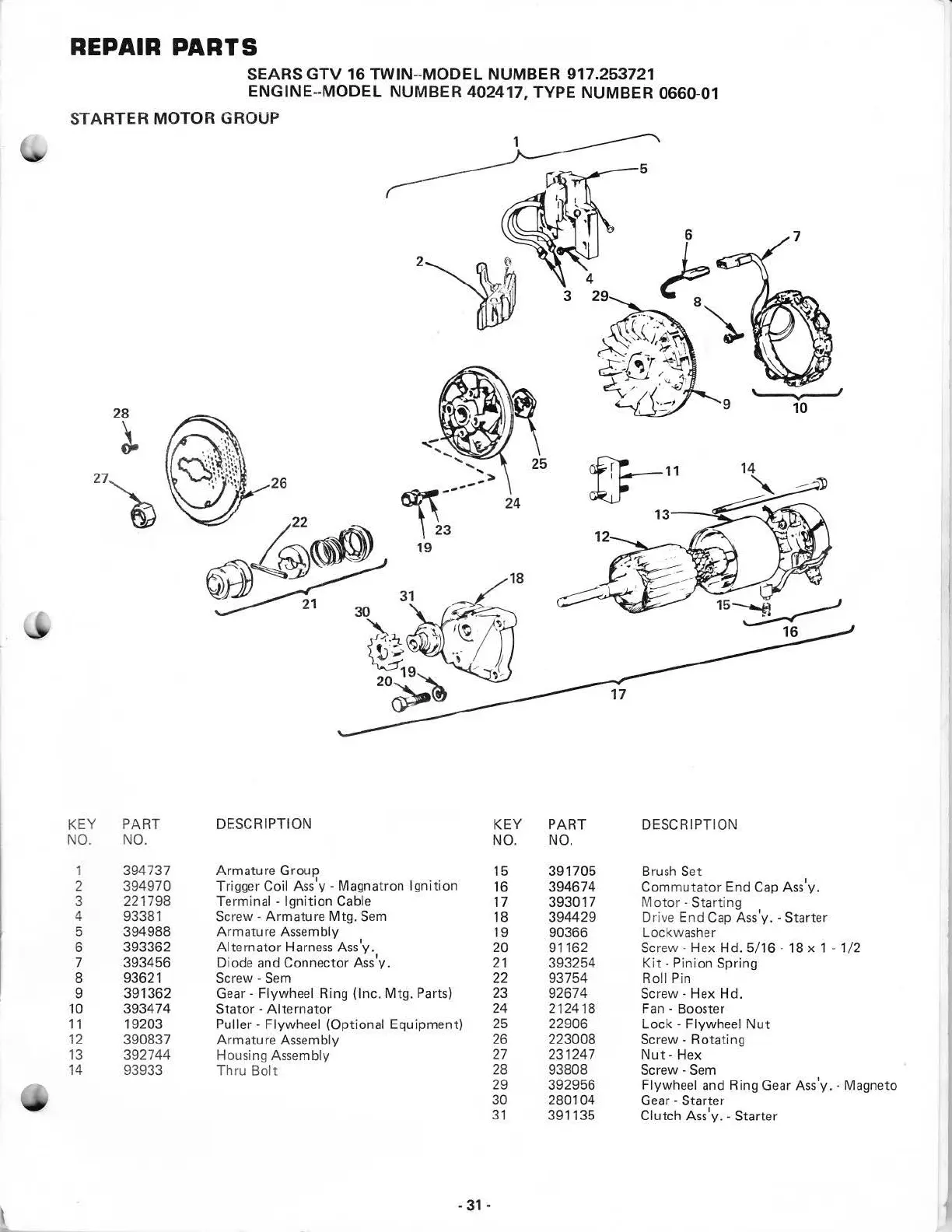

ST
ARTER MOTOR GROUP
28
~
27~
<
..................
, >
~
~
-
-
-
IJ-
11
13--"iio....-
--...
19
KEY PART
DESCRIPTION
KEY
PART DESCRIPTION
NO. NO.
NO. NO.
1
39
4737
Armature Group
15 391705 Brush
Set
2 394970 Trigger Coil Ass'v - Magnatron I
gn
i
tion
16 394674 Commu
tator
End
Cap
Ass'v.
3
221798 Terminal
- Ignition Cable
17 393017
Motor-
Starting
4 93381
Sc
rew - Armature Mtg.
Sem
18 394429 Dr
ive
End
Cap
Ass
'
y.-
Starter
5 394988
Armature Assembly
19
90366
Lockwasher
6
393362
Alternator Harness Ass'y.
20 91162 Screw - Hex Hd.
5/16-
18 x
1-
1/ 2
7
393456 Diode and Connector Ass'y.
21
393254
Kit-
Pini
on
Spring
8
93621
Screw-
Sem
22 93754
Roll
Pin
9 391362 Gear - Fl
yw
h
eel
Ring (Inc. Mtg. Parts)
23
92674 Screw - Hex Hd.
10
393474
Stator - Alternator
24
212418 F
an-
Booster
11
19203 Puller - Flywheel (Optional
Equ
ipment)
25
22906 Lo
ck
- Fl
yw
h
eel
Nut
12 390837 Armature Assembly
26
223008 Screw- Rotating
13 392744 Housing Assembly
27
231247
Nut
- Hex
14 93933 Thru
Bolt
28
93808 Screw-
Sem
29
392956 Flywheel and Ring Gear
Ass
'
y.
- Magneto
30 2801
04
Gear - Starter
31
391135 Clutch Ass'y. - Star
te
r
. 31 -
