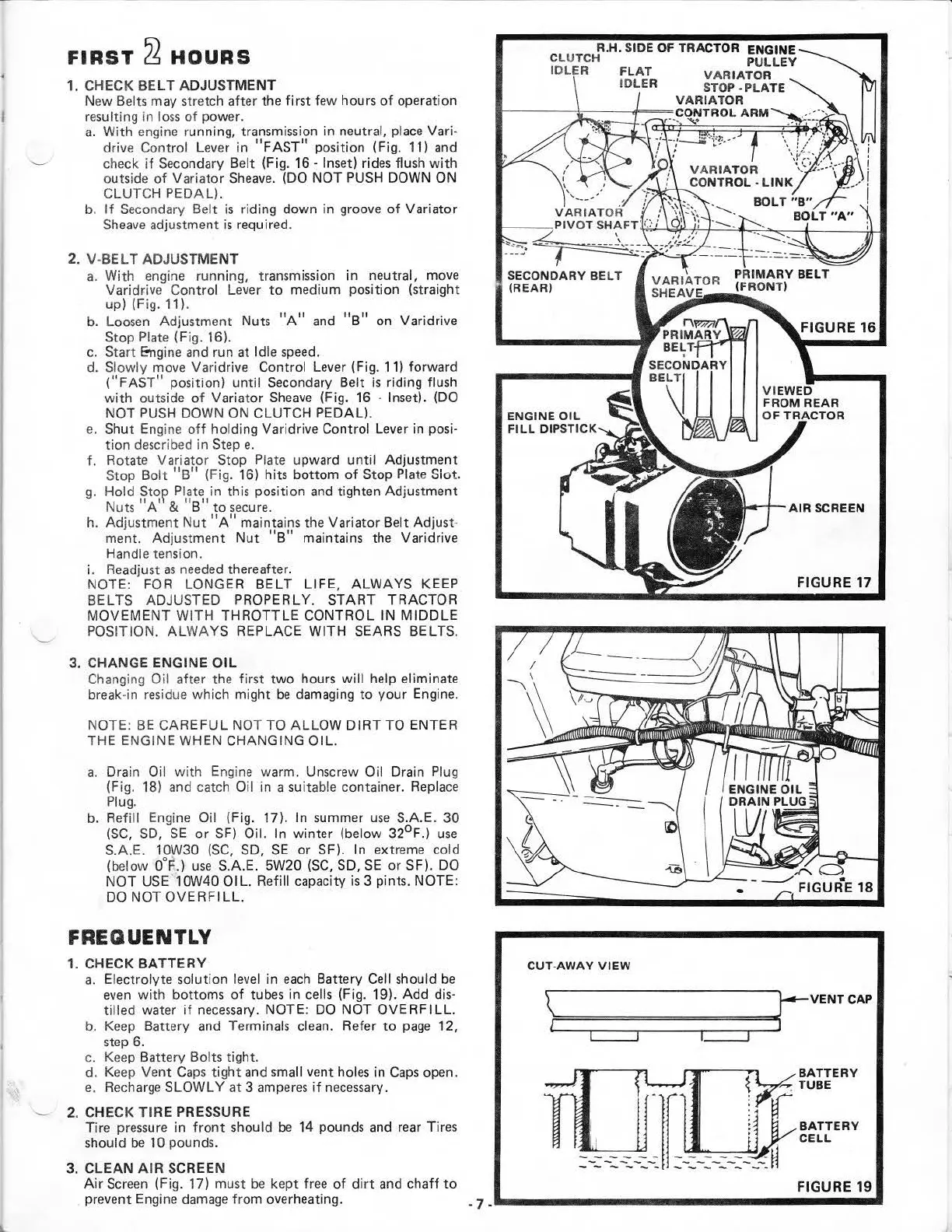

FIRST
~
HOURS
1.
CHECK
BELT
ADJUSTMENT
New Belts may stretch after the
first
few hours
of
ope
ration
resulting in
loss
of
power.
a.
With engine running, transmission in neutral, place Vari-
drive Control Lever in
"FAST"
position (Fig. 11) and
check
if
Secondary Belt (Fig. 16 · Inset) rides flush
with
outside
of
Variator
Sheave
. (DO NOT PUSH DOWN
ON
CLUTCH PEDAL).
b.
If
Secondary Belt
is
riding down in groove
of
Variator
Sheave
adjustment
is
required.
2.
V-BEL T ADJUSTMENT
a.
With engine running,
transm1ss1on
in neutral, move
Varid~ive
Control Lever
to
medium position (straight
up) (Fig. 11).
b. Loosen Adjustment Nuts
"A"
and
"B"
on Varidrive
Stop Plate (Fig. 16).
c.
Start Engine
and
run at Id
le
speed.
d. Slowly move Varidrive Control Lever (Fig. 11) forward
("FAS
T"
position) until Secondary Belt
is
riding flush
with
outside
of
Variator
Sheave
(Fig. 16 · Inset). (DO
NOT
PUSH
DOWN ON CLUTCH PEDAL).
e.
Shut Engine
off
holding Varidrive Control Lever in posi-
tion
described in Step
e.
f. Rotate Variator Stop Plate upward until Adjustment
Stop
Bolt
"B"
(Fig. 16) hits
bottom
of
Stop Plate Slot.
g.
Hold
Stop Plate in this position
and
tighten Adjustment
Nuts
"A'
& "
B"
to
secure.
h. Adjustment
Nut
"A"
maintains the Variator Belt Adjust·
ment. Adjustment
Nut
"B"
maintains the Varidrive
Handle tension.
i. Readjust
as
need
ed
thereafter.
NOTE: FOR LONGER
BEL
T LIFE,
ALWAYS
KEEP
BELTS ADJUSTED PROPERLY.
START
TRACTOR
MOVEMENT
WITH
THROTTLE
CONTROL IN
MIDDLE
POSITION.
ALWAYS
REPLACE
WITH
SEARS BELTS.
3. CHANGE ENGINE
OIL
Changing Oil after the
first
two
hours
will
help eliminate
break-in residue which might
be
damaging
to
your
Engine.
NOTE:
BE
CAREFUL
NOT TO
ALLOW
DIRT
TO ENTER
THE
ENGINE WHEN CHANGING
OIL.
a.
Drain Oil wi
th
Engi
ne
warm. Unscrew Oil Drain Plug
(Fig. 18) and catch
Oil in a suitable container. Replace
Plug.
b.
Refill Engi
ne
Oil (Fig. 17). In summer
use
S.A.E.
30
(SC,
SD,
SE
or
SF)
Oil. In winter (below
32°F
.)
use
S.A.E. 10W30
(SC,
SD,
SE
or
SF). In extreme cold
(below
0°F.)
use
S.A.E. 5W20
(SG,
SO,
SE
or SF). DO
NOT
USE
.10W40
OIL.
Refill capacity
is
3 pints. NOTE:
DO
NOT
OVERFILL.
FREQUENTLY
1. CHECK
BATTERY
a.
Electrolyte solution
leve
l in
each
Battery Cell should
be
even
with
bottoms
of
tubes in cells (Fig. 19). Add dis-
tilled
water
if
necessary.
NOTE: DO NOT
OVERFILL.
b. Keep Battery and Terminals clean. Refer
to
page
12,
step 6.
c.
Keep Battery Bolts tight.
d. Keep
Vent
Gaps
tight
and small vent holes in
Gaps
open.
e.
Recharge
SLOWLY
at 3 amperes
if
necessary.
2. CHECK
TIRE
PRESSURE
Tire pressure in
front
should
be
14 pounds and rear Tires
should
be
10 pounds.
3.
CLEAN
AIR
SCREEN
Air
Screen
(Fig. 17) must
be
kept
fr
ee
of
dirt
and
chaff
to
ENGINE
OIL
FILL
DIP
STICK
CUT-AWAY
VIEW
AIR
SCREEN
FIGURE 17
\?======================~
~VENT
CAP
I I 1=-==:J
_,..,...1
~
BATTERY
-
~
:
·lr
:rr
::::
..
v
.:~~-:.:::.-::.-:
.:-::-::-:-::-W
CELL
FIGURE
19
prevent Engine damage from overheating. •
7
