Seaside 9367 - Wire the Wall Control to the Opener

19
INTRODUCTION
Install the wall control within sight of the door at a minimum height of 5 feet (1.5 m)
where small children cannot reach, and
away
from the moving parts of the door. Your product may look different than the illustrations.
HARDWARE
NOTE: For gang box installations it is not necessary to drill holes or install the drywall anchors. Use the existing holes in the
gang box.
2 Wire the wall control to the garage door opener

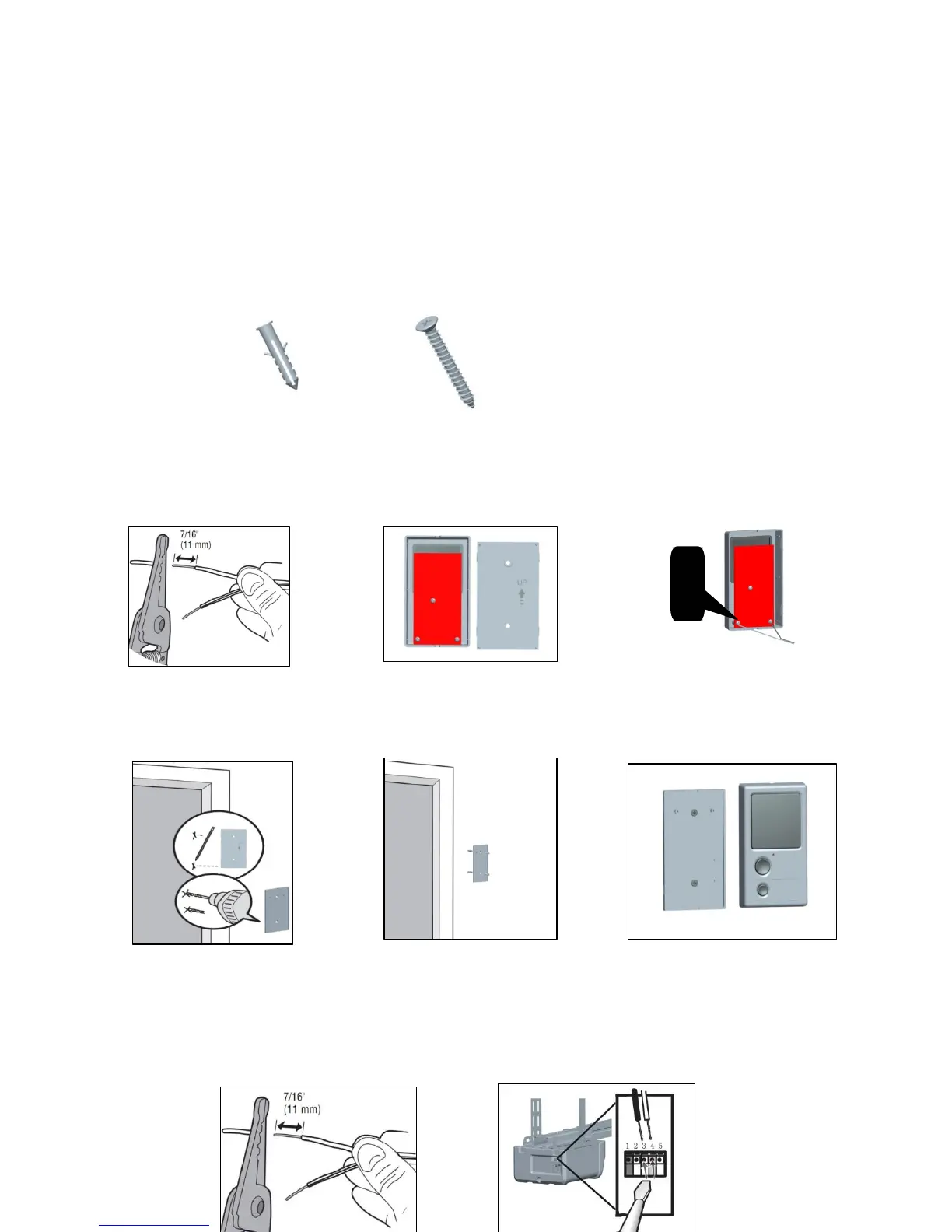

Drywall Anchors (2) Screw M4×30 (2)
1.1、Strip 7/16 inch (11 mm) of
insulation from one end of the
wire and separate the wires.
1.2、Open the bottom of the wall
control
1.3、Connect the white wire to
the #3 screw ,connect the black
\white wire to the #4 screw .
1.4、Mark the location of the
bottom mounting hole and drill
a 6 mm hole.
1.5、Insert and tighten screws to
secure the bottom of the control to
wall
1.6、Position the wall panel onto
the bottom.
2.1、Strip 7/16 inch (11 mm) of
insulation from one end of the wire and
separate the wires.
2.2、Connect the white wire to the #3
terminal and the black\white wire to the #4
terminal on garage door opener.
