Copy Part# 501003, Rev. C Page 2 of 2
Date: 03/2016
© 2008 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com
INSTALLATION INSTRUCTIONS
HYDRAULIC STEERING
SPARE PARTS KITS:
HP6031 & HP6035
ITEM PART # QTY DESCRIPTION
12 730229 1 Support Rod
13 202121 2 Washer 5/8” dia.
14 985876 2 Spacer
15 809900 2 Support Brackets
16 828085 1 Adjusting Nut c/w Set Screw
17 202027 2 Washer 1/2” dia.
18 192126 2 Nut 1/2” NF Nylok
®
19 731730 2 Nut 7/16” NF Nylok
®
20 731625 2 Washer 7/16” dia.
22 010924 4 Washer 5/16” dia.
ITEM PART # QTY DESCRIPTION
1 722222 1 Slide Plate
2 742724 4 Screw 5/16” x 3/4” Hex Head
3 113529 1 Nut 3/8” NF Nylok
®
4 721220 1 Notched Washer
5 727724 2 Slide Washer
6 729221 1 Slide Follower
7 721126 1 Follower Bush
8 736028 1 Bottom Washer (3 Hole)
9 721427 1 Countersunk Washer
10 185921 1 Screw 3/8” x 1 5/8” Flat Head
11 HC5344 1 Cylinder c/w Bleed Tee’s

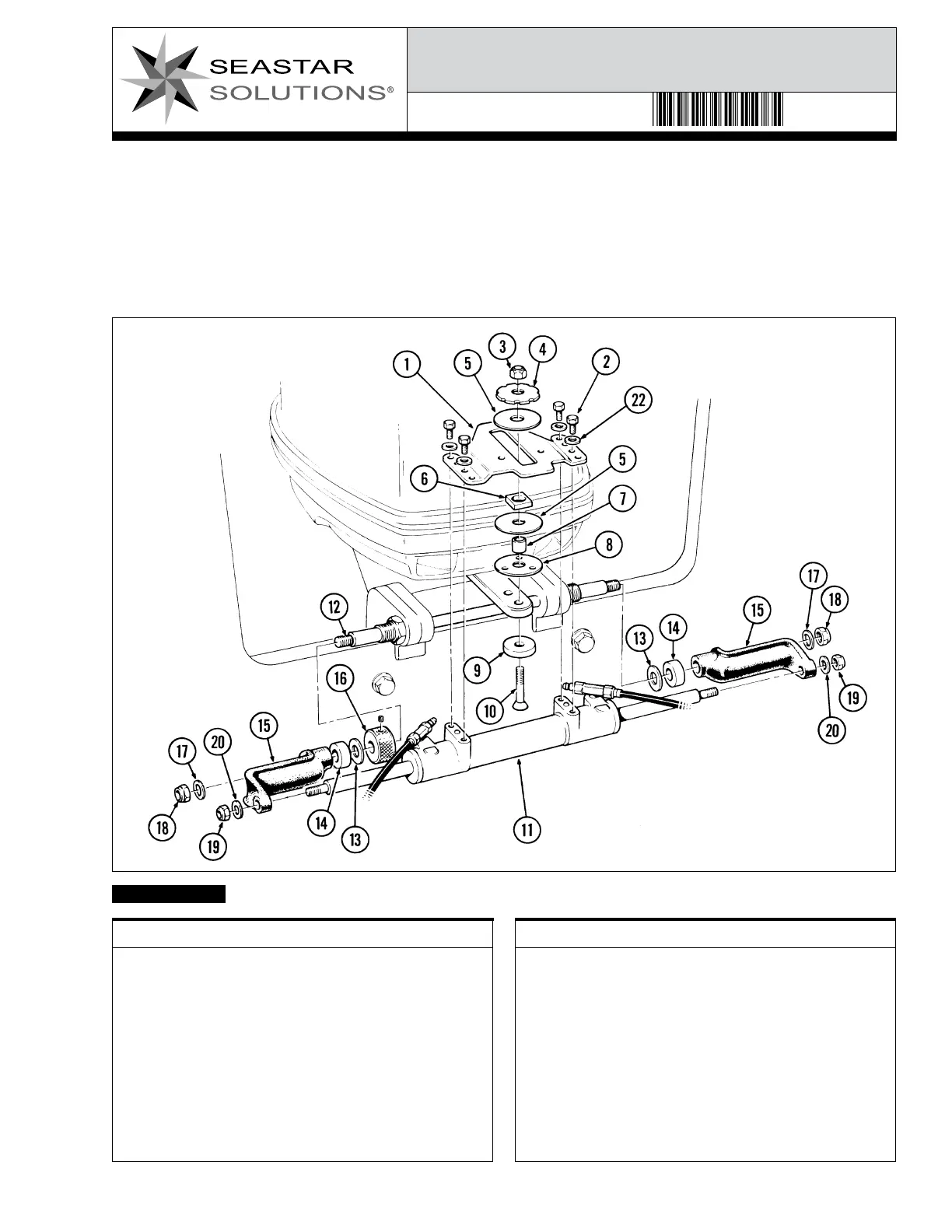

Figure C.
NOTICE
SeaStar Solutions no longer sells individual PID’s. Any part number shown below is ONLY available in kit form.
