P a g e | 6
SECTION 1 – QUICK START GUIDE

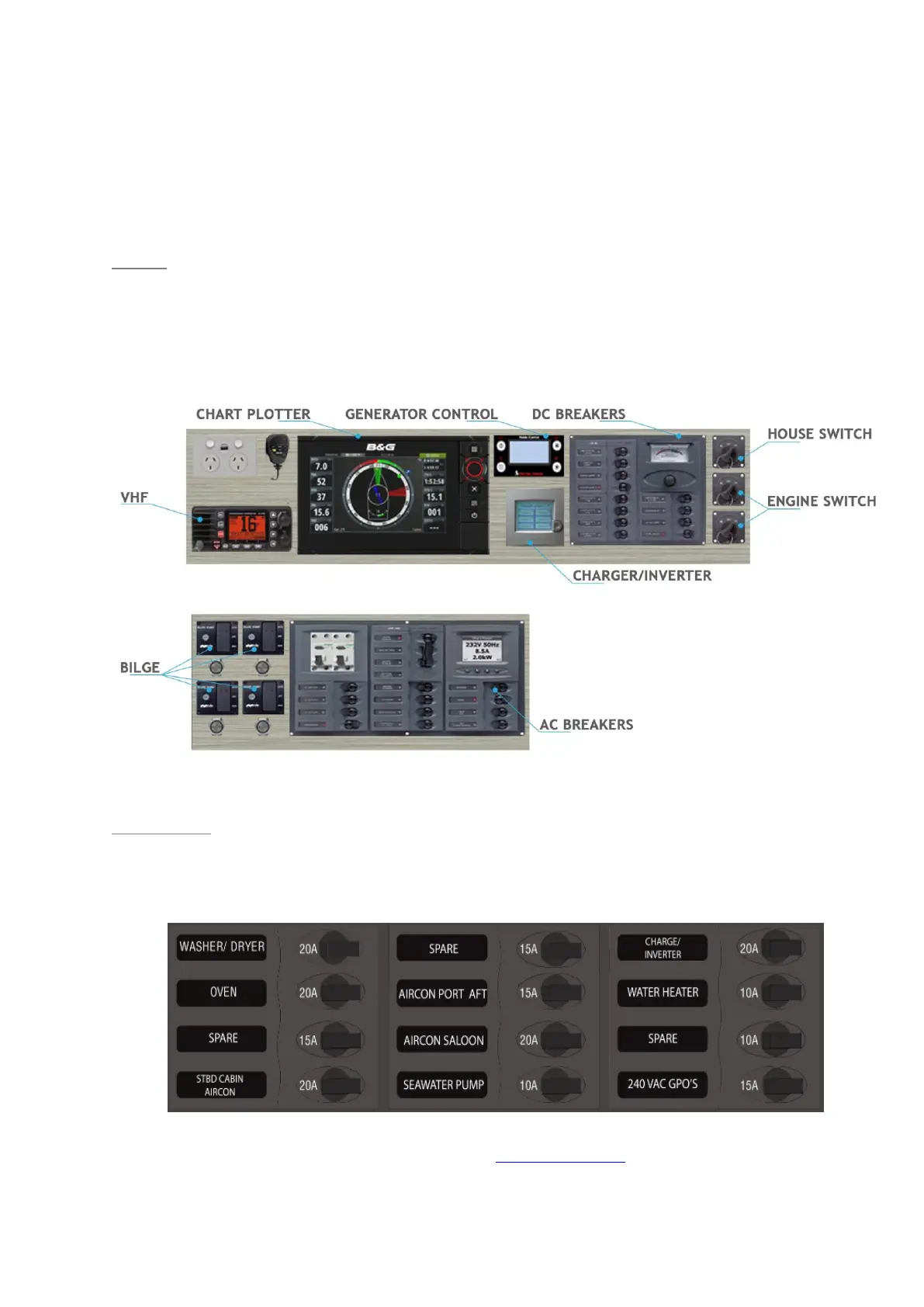

1.1 HOUSE POWER
12V DC
1. Turn the HOUSE switch ON
2. Ensure the INSTRUMENTS and ACCESSORIES breakers are ON (these allow the
navigation equipment to be operated)
3. Power on each of the navigation devices at the power button on the unit
240/110V AC
• To disconnect from shore power in preparation for departure:
1. Turn off all drawing breakers (CHARGER/INVERTER, WATER HEATER, 240V GPO’s, AIR –
CONDITIONING etc)
All above breaker should be OFF
2. Turn off the SHORE POWER breaker on the AC breaker panel. Refer to section 5.8 for
details
3. Turn off the on shore breaker if available at the dock
