SecEng SED-901 - Access Control

INSTALLATION - START HERE
3
INTRODUCTION

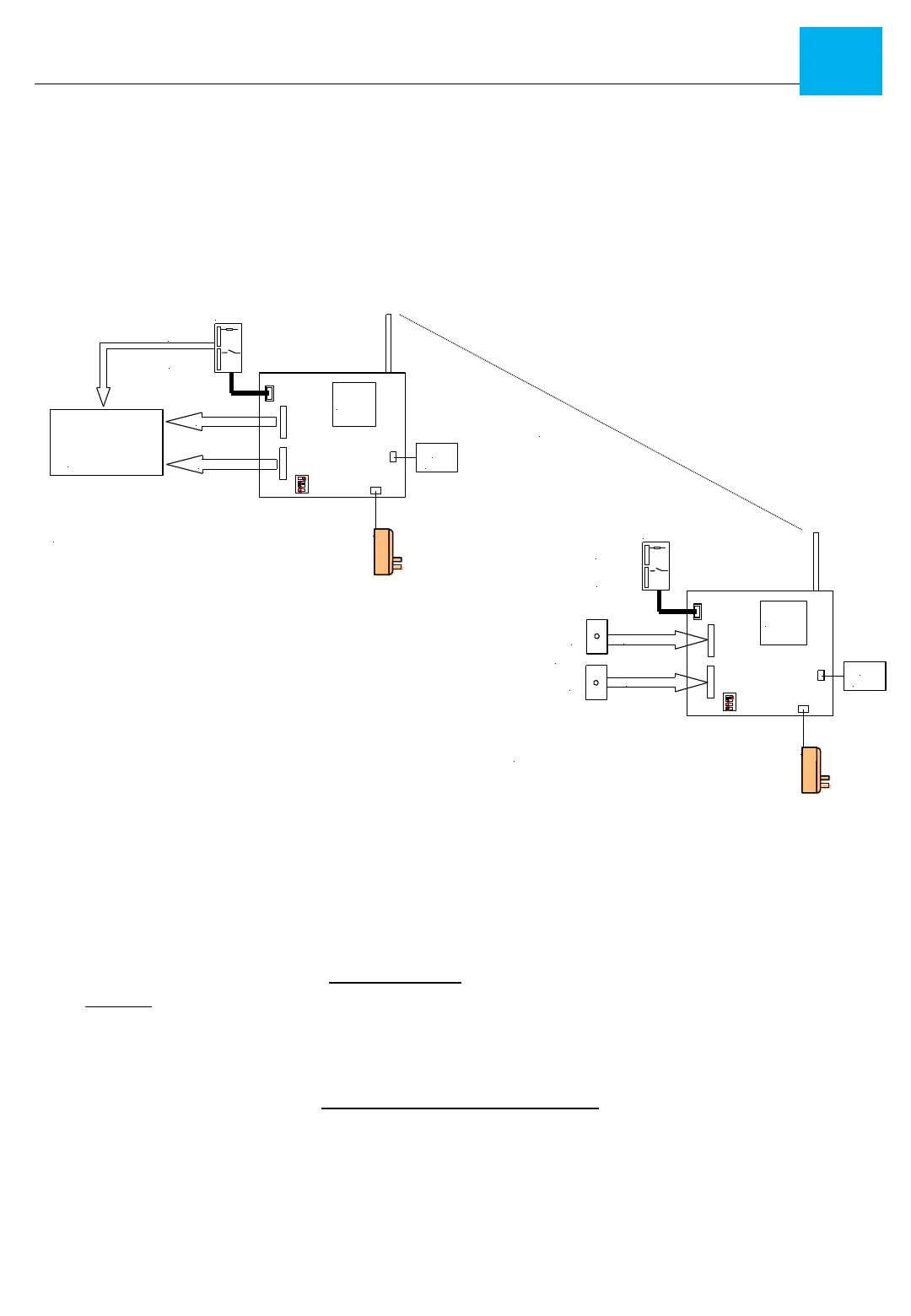

The SED-901 wireless Wiegand / Cardax system is a combination of 2 devices -
SED-901 Master and SED-901 Remote. This allows Wiegand / Cardax card and control
information to pass over a 915 MHz low power link
Inputs 1-4 N.o
Relay ouputs 1 - 4
@ 1.5amp 12V
Relay
board
12v
Battery
READER 1 WEIGAND OUT
READER 2 WEIGAND OUT
Access
Control
Inputs 1-4 N.o
Relay ouputs 1 - 4
@ 1.5amp 12V
Relay
board
12v
Battery
READER 1 WEIGAND IN
READER 2 WEIGAND IN
Wiegand card readers
1
2
900m line of sight
SED-901 Remote
SED-901 Master
Master
Remote
The SED-901 series will accept only card
information such as a Wiegand data
stream from 23 to 80 bits and Cardax
Mifare / 125 data.
This will be processed and passed over
the 900 MHz link. As well as the
transposition of the 4 x normally open
inputs crossed over to the 4 x dry relay
contacts on the remote, and visa versa.
This can be used for separate control of
devices, and works as, Input to follow
Output.
NOTE: YOU MUST ALWAYS WIRE ALL CABLES SHOWN FROM THE SED-901
TO THE ACCESS CONTROL SYSTEM - FAILURE TO DO SO, WILL RESULT
IN THE WIRELESS UNIT NOT WORKING CORRECTLY
