Seedream X-01 - Assembly; Opening the Packing Box; Adjusting Angle of Tiller; Assemble the Seat Support

II.STRUCTURE AND PERFORMANCE
III.ASSEMBLY

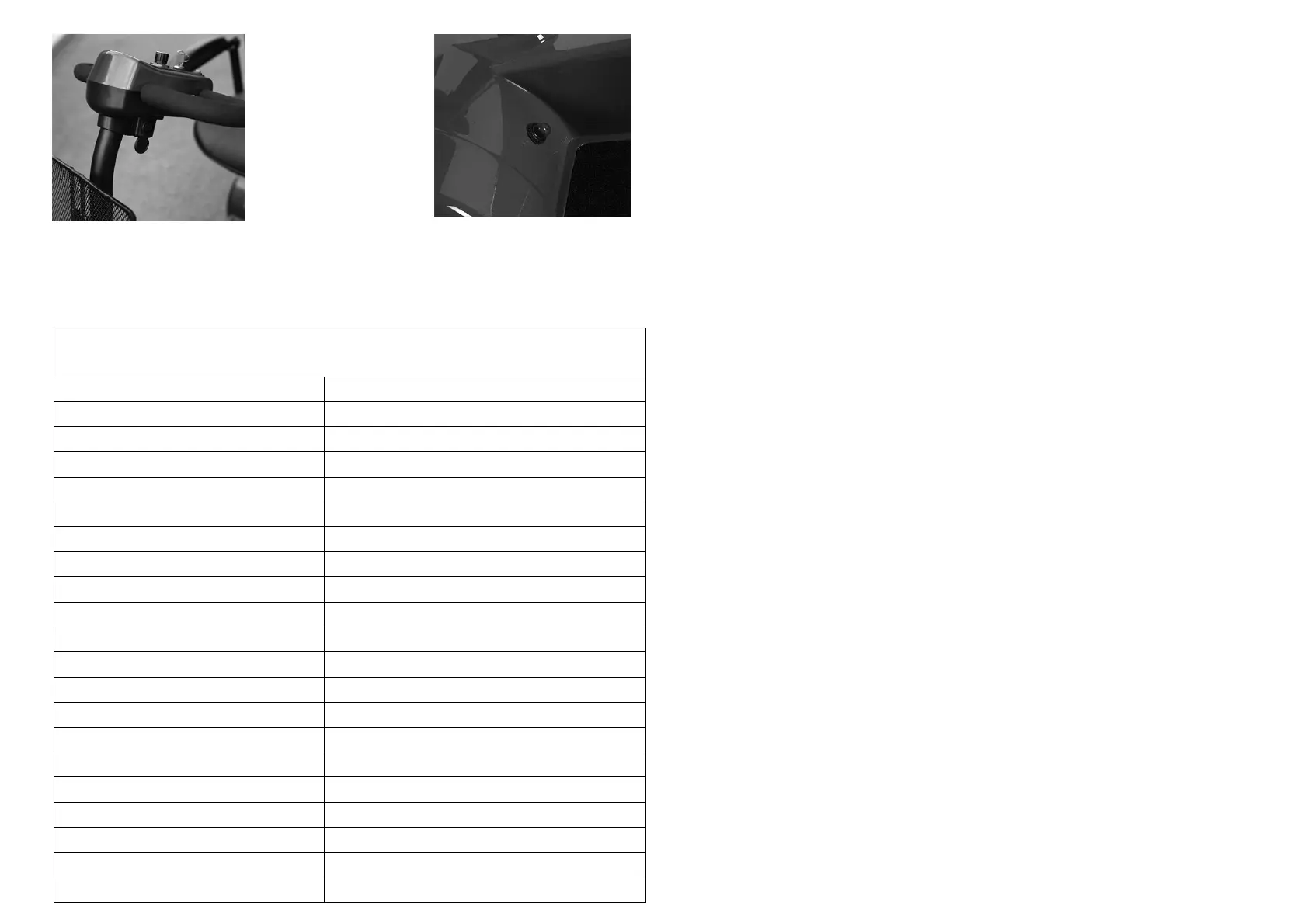

SPECIFICATIONS
Overall Dimension
1050(L)*500(W)*900(H)mm
Overallweight(Include battery)
40KG
Gross Weight
45KG
Turning Radius
1200mm
Max speed
6kph
Max degree of climbing
12°
Max Range
20KM
Max Load
190KG
Motor
24V 180W
Battery Capacity
12AH*2
Ground clearance
90mm
Charger
2.0A/24V
Wheelsize
Front 8'',rear 8''solid tyre
Brake system
Magnetic brake
Packing size
1100*520*50mm
Seat height
520 mm
Seat width
440 mm
Seat depth
380 mm
Armrest height
190 mm
Backrest height
310 mm
Battery weight
9.5 kg
For convenience of transportation and reduction of possible damage,
the batteries and the seat unit are separately packaged. So you need
assemble them onto the main frame of your scooter.
OPENING THE PACKING BOX
Open the packing box of your new scooter ,and take off all protective
liner, and then take off the scooter that has folded from the box.
ADJUSTING ANGLE OF TILLER
Loose the lock-nut (see fig.4 )
Lift the tiller up until a proper angle for yourself Tighten the lock-nuts to
fix the tiller.
ASSEMBLE THE SEAT SUPPORT
Insert the seat support into the seat tube located on the rear body (see
fig.5)
Align the bolt hole
Insert the bolt into the hole
Overload protector 3-pin charger socket
Fig.3
