Seeed Grove Beginner Kit - Grove - Temperature & Humidity Sensor (DHT11)

8
This Sensor is based on the commonly used DHT11 sensor
to measure temperature and relative humidity.
Example
You can use the codes included to display the temperature
and relative humidity information the Grove - 16 x 2 LCD
(White on Blue). Find the examples via the path below:
File > Sketchbook > Grove_Beginner_Kit_Sketchbook-mas-
ter > tutorial 7 - DHT11

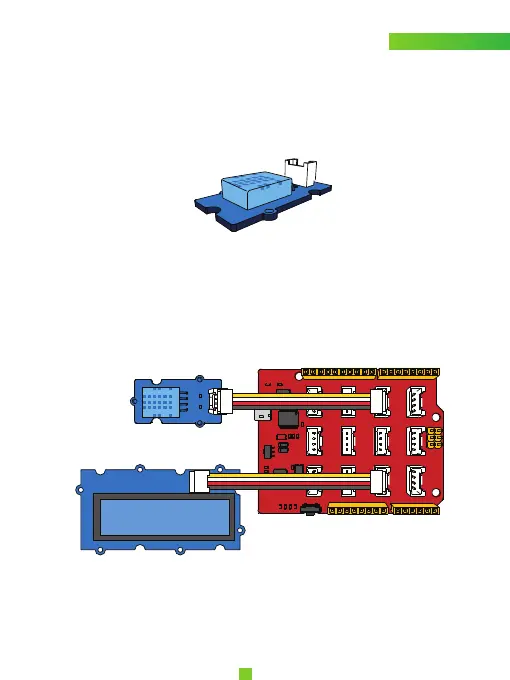

Grove – Temperature &
Humidity Sensor (DHT11)
D4 D3
A6 D7
D2
D6
A2
A0 12C.
UART
D5
12C..
Tips
A unique capacitive sensor element measures relative humidity and the
temperature is measured by a negative temperature coefficient (NTC)
thermistor.
