Sega Mega-CD User Manual

SEGA-CD

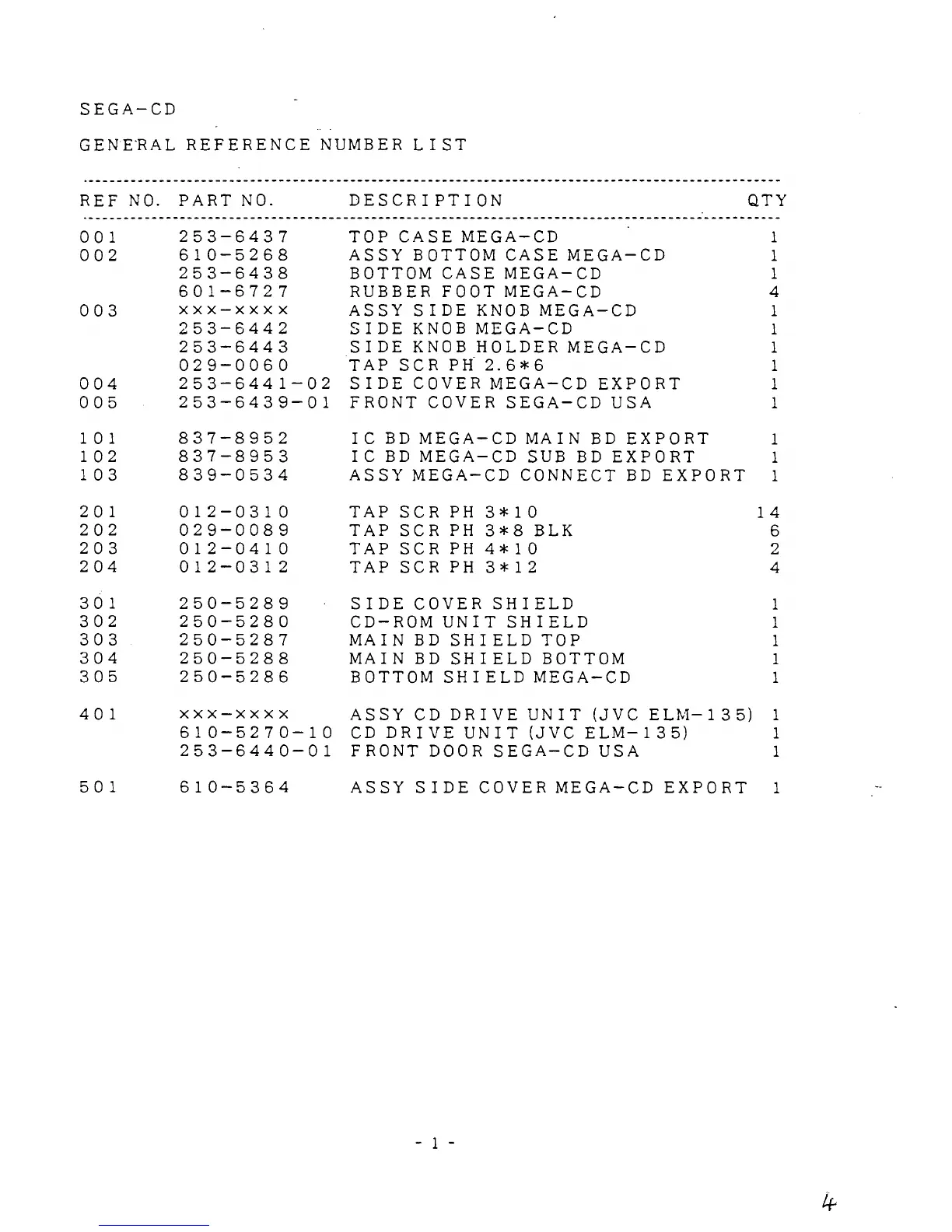

GENERAL REFERENCE NUMBER LIST
REF NO.
PART NO.
DESCRIPTION
QTY
---------------------------------------------------------------------------------------------------
001
253-6437
TOP CASE MEGA-CD 1
002
610-5268
ASSY BOTTOM CASE MEGA-CD
1
253-6438
BOTTOM CASE MEGA-CD 1
601-6727
RUBBER FOOT MEGA-CD 4
003
xxx-xxxx
ASSY SIDE KNOB MEGA-CD
1
253-6442 SIDE KNOB MEGA-CD
1
253-6443 SIDE KNOB HOLDER MEGA-CD
1
029-0060
TAP SCR PH 2.6*6 1
004
253-6441-02
SIDE COVER MEGA-CD EXPORT
1
005
253-6439-01
FRONT COVER SEGA-CD USA
1
1
0 1
837-8952
I C B D MEG A-CD MAIN B D EX P 0 R T
1
102
837-8953
I C BD MEGA-CD SUB BD EXPORT
1
1
0 3 839-0534
ASSY MEGA-CD CONNECT BD EXPORT
1
201 012-0310
TAP SCR PH
3*10
14
202 029-0089
TAP SCR PH
3*8 BLK 6
203 012-0410 TAP
SCR PH
4*10
2
204 012-0312
TAP
SCR PH
3*12
4
301 250-5289
SIDE COVER SHIELD
1
302 250-5280
CD-ROM UNIT SHIELD
1
303 250-5287
MAIN BD SHIELD TOP
1
304
250-5288
MAIN BD SHIELD BOTTOM
1
305
250-5286
BOTTOM SHIELD MEGA-CD
1
401
xxx-xxxx
ASSY CD DRIVE UNIT (JVC EL"tv'l-135)
1
610-5270-10
CD DRIVE UNIT (JVC ELM-135)
1
253-6440-01
FRONT DOOR SEGA-CD USA 1
501
610-5364
ASSY SIDE COVER MEGA-CD EXPORT
1
- 1 -

Sega Mega-CD Specifications

General

Media type	CD-ROM
CPU	Motorola 68000 @ 12.5 MHz
Manufacturer	Sega
Sound	Ricoh RF5C164
ROM	1 Mbit
Type	Video game console add-on
Release Date	October 15, 1992 (North America)
Graphics	512 colors
Power Supply	External power supply
