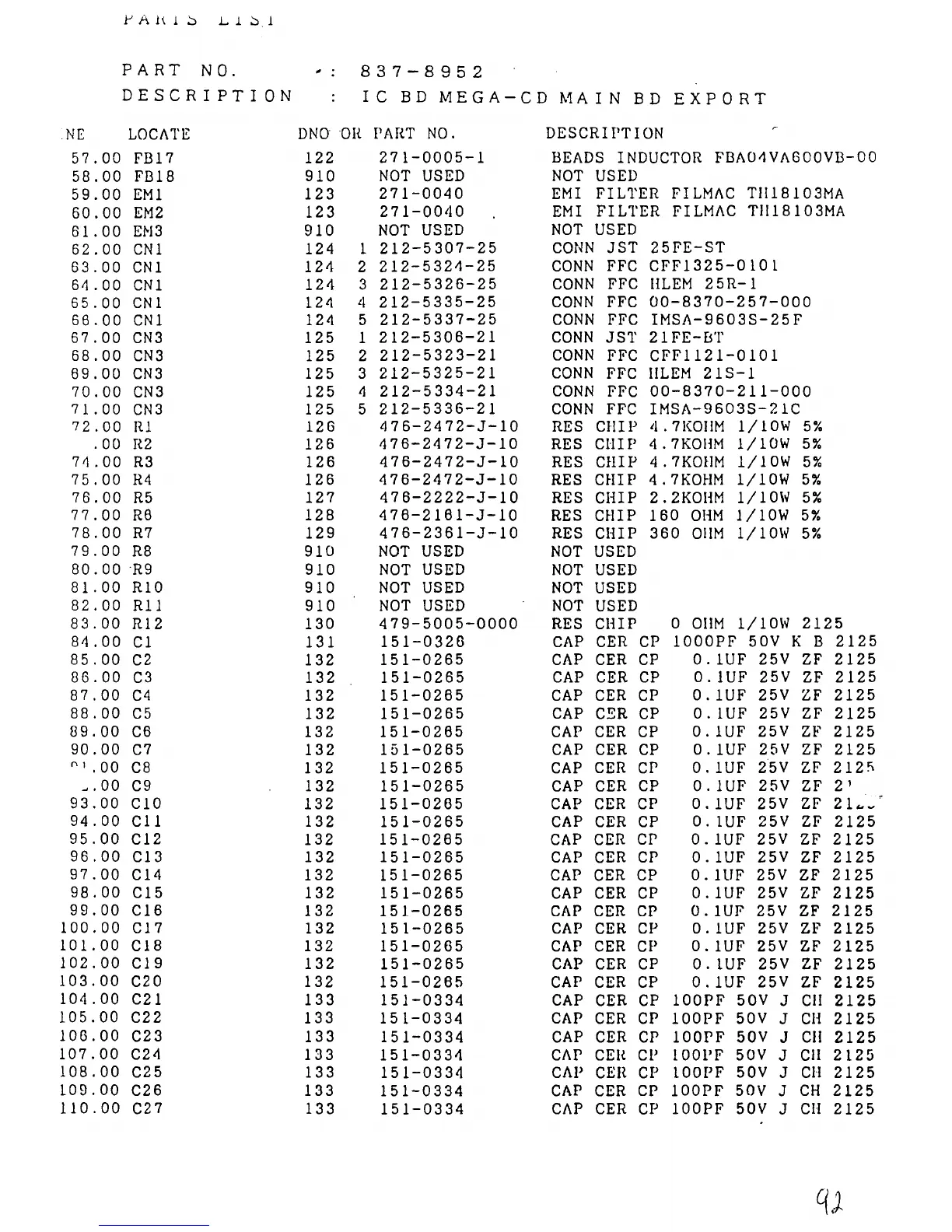

Sega Mega-CD - Page 95

.!:'AHl::::>
L 1 ::::> l
PART
N 0.
.. :
837-8952
DESCRIPTION
I C
BD MEGA-CD
MAIN B D
EXPORT
.NE
LOCATE
DNO ·OR PART NO. DESCRIPTION
57.00 FB17 122
271-0005-1
BEADS INDUCTOR
FBAO'IVA600VI3-00
58.00 FI318
910
NOT USED NOT USED
59.00
EM1
123
271-0040
EMI
FILTER FILMJ\C Tll18103MA
60.00
EM2
123
271-0040
EMI
FILTER FILMAC Tll18103MA
61.00
EI'J3
910
NOT USED
NOT USED
62.00 CN1
124 1
212-5307-25
CONN JST
25FE-ST
63.00
CN1
124
2
212-5324-25
CONN FFC
CFF1325-0101
61!.00
CN1
124 3
212-5326-25 CONN FFC
IILEM 25R-1
65.00 CN1
124 4
212-5335-25 CONN FFC
00-8370-257-000
66.00 CN1 124 5
212-5337-25
CONN FFC
IMSJ\-9603S-25F
67.00
CN3 125 1
212-5306-21
CONN JST 21FE-BT
68.00
CN3 125 2
212-5323-21
CONN FFC CFF1121-0101
89.00 CN3 125
3
212-5325-21
CONN FFC
IILEM 21S-1
70.00 CN3 125
4
212-5334-21
CONN FFC
00-8370-211-000
71.00
CN3 125
5
212-5336-21
CONN FFC
IMSA-9603S-21C
72.00
Ill 126
476-2472-J-10
RES CHIP
ti.7KOIIM l/10W
5%
.00
R2 126
476-2472-J-10
RES CHIP
4.7KOHM 1/lOW 5%
7'1.00
R3 126
476-2472-J-10
RES CHIP
4.7KOHM 1/lOW
5%
75.00 R4 126
476-2472-J-10
RES
CHIP 4.7KOHM 1/10W 5%
76.00
R5
127 476-2222-J-10
RES CHIP
2. 2KOHM 1/1 0\~ 5%
77.00
R6
128
476-2161-J-10
RES CHIP
160 OHM l/10W 5%
78.00
R7
129
476-2361-J-10
RES CHIP 360 OHM
1/10\V
5%
79.00
R8 910 NOT USED
NOT USED
80.00 R9
910 NOT USED
NOT USED
81.00
RIO 910 NOT USED NOT
USED
82.00
Rll 910 NOT USED NOT USED
83.00
Rl2
130 479-5005-0000
RES
CHIP
0 OHM 1/lOW 2125
84.00
C1 131
151-0326
CAP
CER CP
1000PF 50V K B 2125
85.00
C2
132
151-0265 CAP CER CP
0.1UF 25V ZF 2125
86.00
C3
132
151-0265 CAP CER CP
O.lUF 25V ZF 2125
87.00
C4
132
151-0265 CAP CER CP
0.1UF 25V ZF 2125
88.00
C5 132 151-0265 CAP C~R CP
0.1UF 25V ZF 2125
89.00
C6 132 151-0265 CAP CER CP
0.1UF 25V ZF 2125
90.00
C7
132
151-0265 CAP CER CP
0.1UF 25Y ZF 2125
f\1
.00
C8 132 151-0265 CAP CER CP
0.1UF 25Y ZF 212~
.... 00
C9
132 151-0265 CAP CER CP
0. lUF 25Y ZF
2'
93.00
C10
132
151-0265 CAP CER
CP
0.1UF 25Y ZF 2 L .....
94.00
C11
132 151-0265 CAP CER CP
0. lUF 25V ZF
2125
95.00
C12
132 151-0265 CAP CER CP
0.1UF 25Y ZF
2125
96.00
C13
132
151-0265 CAP CER
CP 0.1UF25VZF 2125
97.00
C14
132 151-0265 CAP CER CP 0.1UF25VZF 2125
98.00
C15
132 151-0265 CAP CER CP
0.1UF25VZF
2125
99.00
C16
132 151.-0265 CAP CER CP
O.lUF 25Y ZF
2125
100.00
C17
132
151-0265 CAP CER CP
0. 1UF 25Y ZF
2125
101.00
C18
132 151-0265 CAP CER CP 0.1UF25VZF
2125
102.00
C19
132
151-0265 CAP CER CP
O.lUF 25V ZF
2125
103.00
C20
132 151-0265 CAP
CER CP 0.1UF25VZF 2125
104.00
C21
133
151-0334 CAP
CER CP 100PF 50V J CII
2125
105.00
C22
133
151-0334 CAP CER CP 100PF 50V J CH
2125
106.00
C23
133
151-0334 CAP
CER CP
100PF 50Y J Cll
2125
107.00
C24
133
151-03311 CAP
CEH
CP 100l'F 50V J Cll
2125
108.00
C25
133
151-0334
CAP
CEH
CP 100PF 50Y J CH 2125
109.00
C26
133 151-0334 CAP CER CP
100PF 50V J CH
2125
110. 00
C27
133
151-0334
CAP CER CP 100PF 50V J CH
2125
