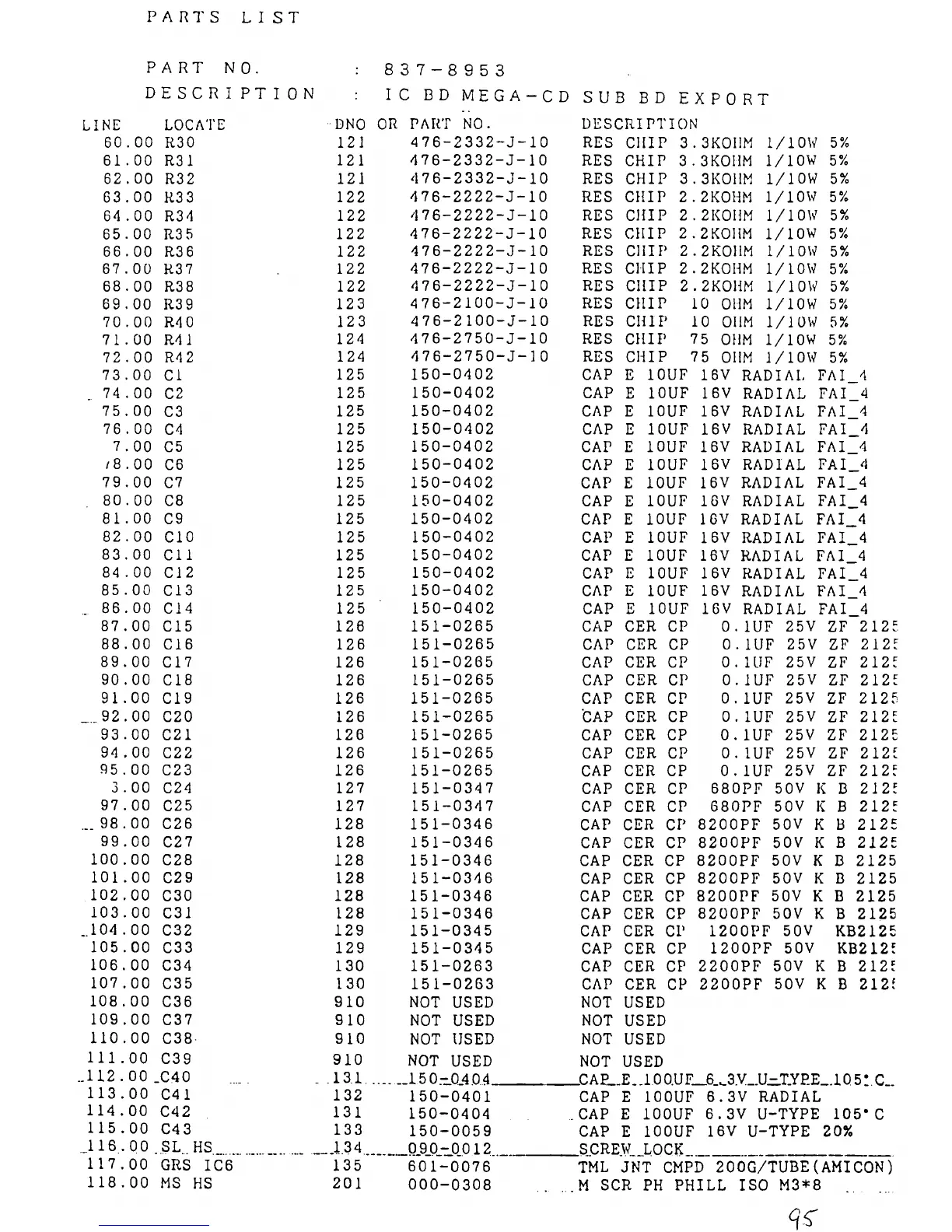

PARTS LIST
837-8953
PART NO.
DESCRIPTION
IC BD MEGA-CD SUB BD EXPORT
LINE LOCATE -DNO OR PART NO.
60.00 R30 121 476-2332-J-10
61.00 R31 121 176-2332-J-10
62.00 R32 121 476-2332-J-10
63.00 U33 122 176-2222-J-10
64.00 R34 122 ~76-2222-J-10
65.00 R35 122 476-2222-J-10
66.00 R36 122 476-2222-J-10
67.00 U37 122 476-2222-J-10
68.00 R38 122 476-2222-J-10
69.00 R39 123 476-2100-J-10
70.00 R40 123 476-2100-J-10
71.00 R41 124 476-2750-J-10
72.00 R42 124 176-2750-J-10
73.00 Cl 125 150-0402
74.00 C2 125 150-0402
75.00 C3 125 150-0402
76.00 C4 125 150-0402
7.00 C5 125 150-0402
t8.00 C6 125 150-0402
79.00 C7 125 150-0402
80.00 C8 125 150-0402
81.00 C9 125 150-0402
82.00 C10 125 150-0402
83.00 C11 125 150-0402
84.00 C12 125 150-0402
85.00 C13 125 150-0402
86.00 C14 125 150-0402
87.00 C15 126 151-0265
88.00 C16 126 151-0265
89.00 C17 126 151-0265
90.00 C18 126 151-0265
91.00 C19 126 151-0265
-·- 9 2 . 0 0 c 2 0 1 2 6 1 5 1 - 0 2 6 5
93.00 C21 126 151-0265
94.00 C22 126 151-0265
~5.00 C23 126 151-0265
3.00 C24 127 151-0347
97.00 C25 127 151-0347
__ 98.00 C26 128 151-0346
99.00 C27 128 151-0346
100.00 C28 128 151-0346
101.00 C29 128 151-0346
102.00 C30 128 151-0346
103.00 C31 128 151-0346
104.00 C32 129 151-0345
105.00 C33 129 151-0345
106.00 C34 130 151-0263
107.00 C35 130 151-0263
108.00 C36 910 NOT USED
109.00 C37 910 NOT USED
110.00 C38 910 NOT USED
DESCRIPTION
RES
CI!IP 3. 3KOIIM 1/10H 5%
RES CHIP 3.3KOIIM 1/10W 5%
RES CHIP 3.3KOIIM 1/10W 5%
RES CHIP 2.2KOHM 1/10W 5%
RES CHIP 2.2KO!lM 1/10W 5%
RES CHIP 2.2KOIIM 1/10W 5%
RES CIIIP 2.2KO!IM 1/10\v 5%
RES CHIP 2.2KOHM 1/LOW 5%
RES CHIP 2.2KOHM 1/10\V 5%
RES CHIP 10 OHM 1/10W 5%
RES CHIP 10 OIIM 1/10W 5%
RES CHIP 75 OHM 1/lOW 5%
RES CHIP 75 OIIM 1/10\V 5%
CAP E 10UF 16V RADIAL FAI_t\
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_1
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP E 10UF 16V RADIAL FAI_4
CAP CER CP 0.1UF 25V ZF 2125
CAP CER CP 0.1UF 25V ZF 212~
CAP CER CP 0. 1UF 25V ZF 212~
CAP CER CP O.lUF 25V ZF 212~
CAP CER CP 0.1UF 25V ZF 2125
CAP CER CP O.lUF 25V ZF 212~
CAP CER CP 0.1UF 25V ZF 2125
CAP CER CP 0. lUF 25V ZF 212~
CAP CER CP 0.1UF 25V ZF 212~
CAP CER CP 680PF 50V K B 212~
CAP CER CP 680PF 50V K B 212~
CAP CER CP 8200PF 50V K B 212~
CAP CER CP 8200PF 50Y K B 2125
CAP CER CP 8200PF 50V K D 2125
CAP CER CP 8200PF 50V K D 2125
CAP CER CP 8200PF 50V K B 2125
CAP CER CP 8200PF 50V K B 2125
CAP CER CP 1200PF 50Y KB2125
CAP CER CP 1200PF 50V KB212~
CAP CER CP 2200PF 50V K B 212~
CAP CER CP 2200PF 50Y K B 212~
NOT USED
NOT USED
NOT USED
111.00 C39 910 NOT USED NOT USED
.. 112. 00 _C40 _ .13.1. .... __ l50::..0_4.04 _____ CAP __ E __ 100.UF_6_._3.V __ U-T.YP.E_.l05:.C __
113.00 C41 132 150-0401 CAP E 100UF 6.3Y RADIAL
114.00 C42 131 150-0404 _CAPE 100UF 6.3V U-TYPE 105•c
115.00 C43 133 150-0059 CAP E 100UF 16V U-TYPE 20%
__ 116. 0 0 . SL .. HS __ ........ ---· _____ _l._$4 ________ Q_9_0_-:_QO 12____ S.CRE.\(_LOCIL_ ______________ _
117.00 GRS IC6 135 601-0076 TML JNT CMPD 200G/TUBE(AMICON)
118.00 MS HS 201 000-0308 M SCR PH PHILL ISO M3*8
