12 Hardware Installation Guide
Print Server Controls and Technical Data
Characteristics Values
Printer Connector - 1 x Centronics
(IEEE1284B, 36 pin Centronics Connector, 1284.4 compatible)
Network Connection
logical:
physical:
- 10BaseT Ethernet (IEEE 802.3)
- 100BaseTX Fast Ethernet (IEEE 802.3)
- Network Connection RJ-45 (STP Cat.5)
Operating Environment - Ambient temperature: 5 - 40 °C
- Relative humidity: 20 - 80 %
Dimensions - Length 98 mm
- Width 62 mm
- Height 26 mm
- Weight 70 g

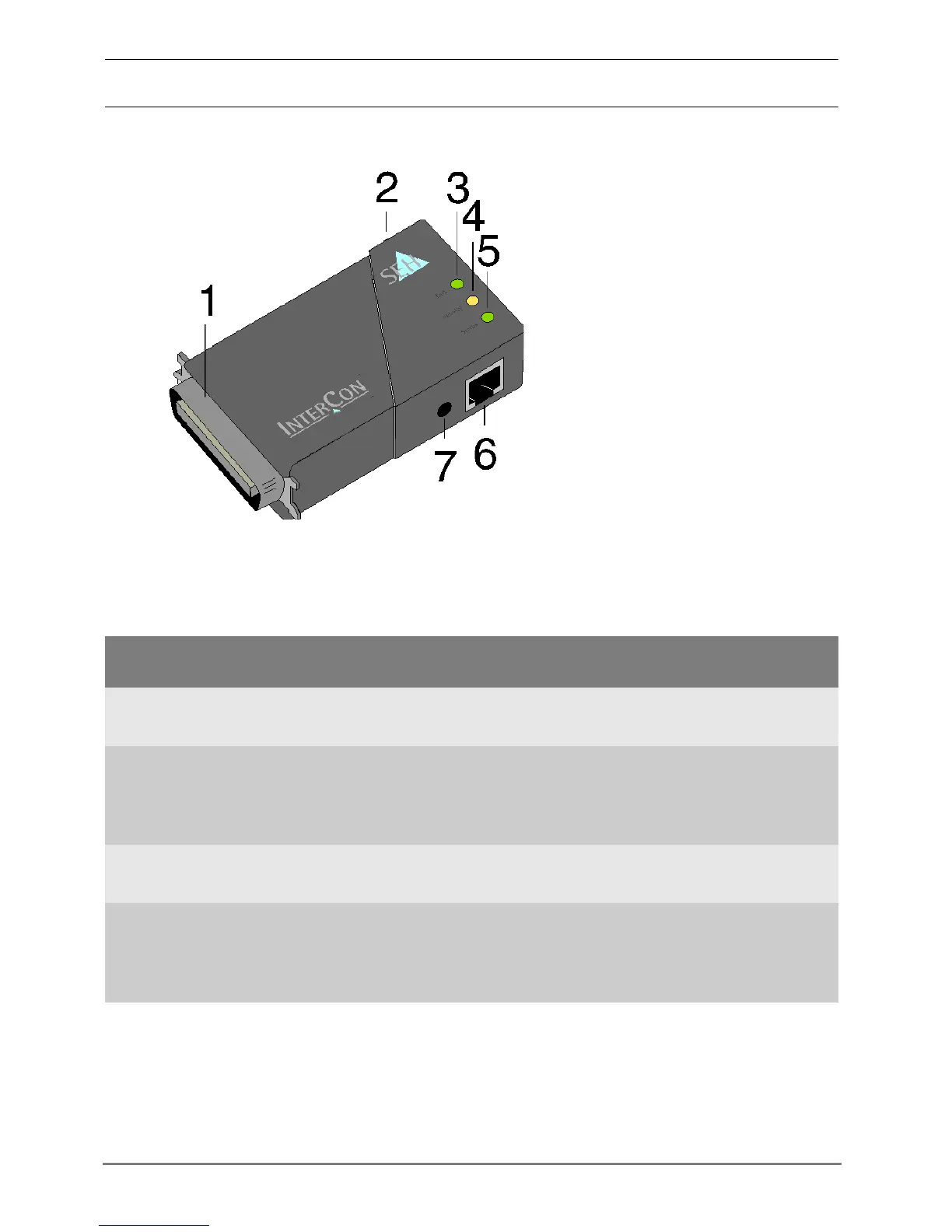

1) Centronics connector
2) Status button
3) Link indicator LED (green):
The LED lights up when a
(physical) connection to the
network is available.
4) Network activity LED (yellow):
The LED lights up when data
packets are being received.
5) Status indicator LED (green):
The LED shows that the print
server is operational.
6) RJ-45 connector for 100BaseTX
and 10BaseT
7) Connector for SEH power pack
