12 Hardware Installation Guide
Print Server Controls and Technical Data
Characteristics Values
Printer Connector - HP EIO
Network Connection
logical:
physical:
- 10BaseT Ethernet (IEEE 802.3)
- 100BaseTX Fast Ethernet (IEEE 802.3)
- 1000BaseT Fast Ethernet (IEEE 802.3)
- RJ-45 (S/UTP Cat.5)
Operating Environment - Ambient temperature: 5 - 40 °C
- Relative humidity: 20 - 80 %
Dimensions - Length 136 mm
- Width 90 mm
- Height 32 mm
- Weight 80 g

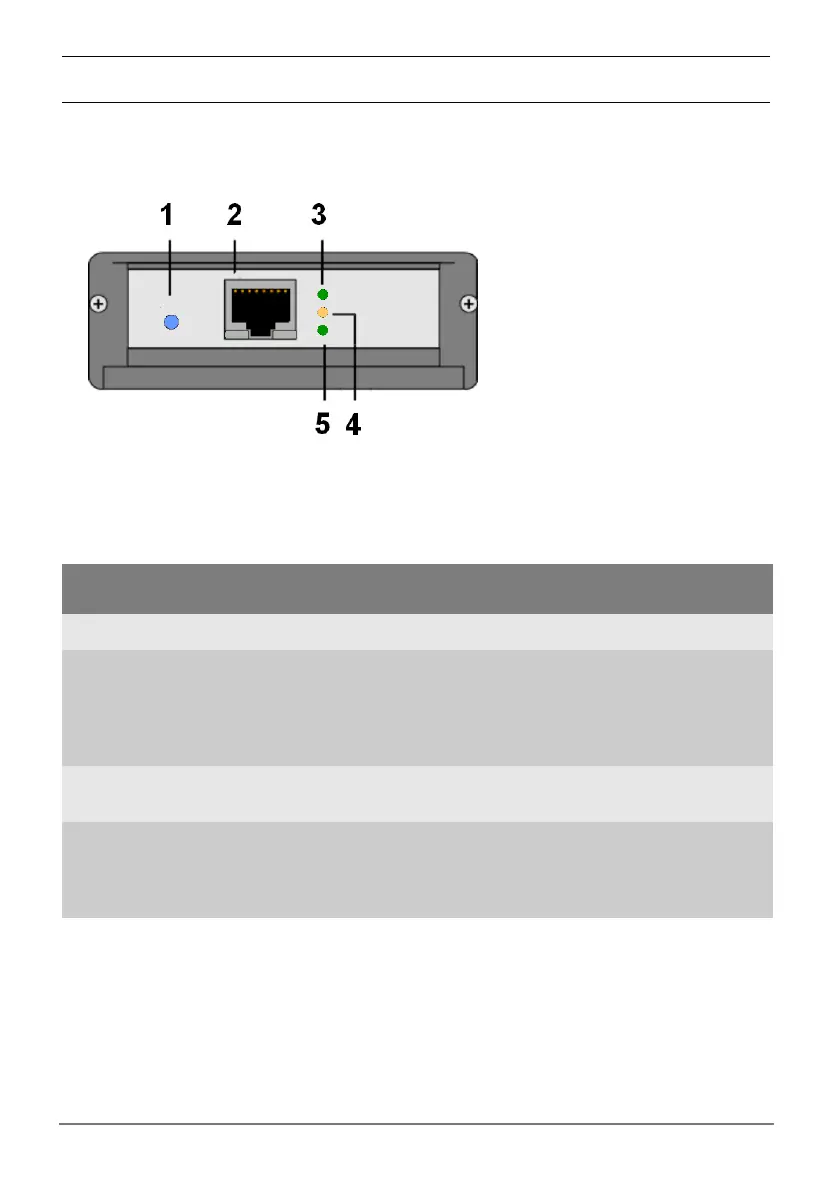

1) Status button
2) RJ-45 connector for 1000BaseT,
100BaseTX and10BaseT
3) Link indicator LED (green):
The LED lights up when a
(physical) connection to the
network is available.
4) Network activity LED (yellow):
The LED lights up when data
packets are being received.
5) Status indicator LED (green):
The LED shows that the print
server is operational.
