Section 8: Repairs
Bambi Bucket Service Manual – Models 2024-4453 37

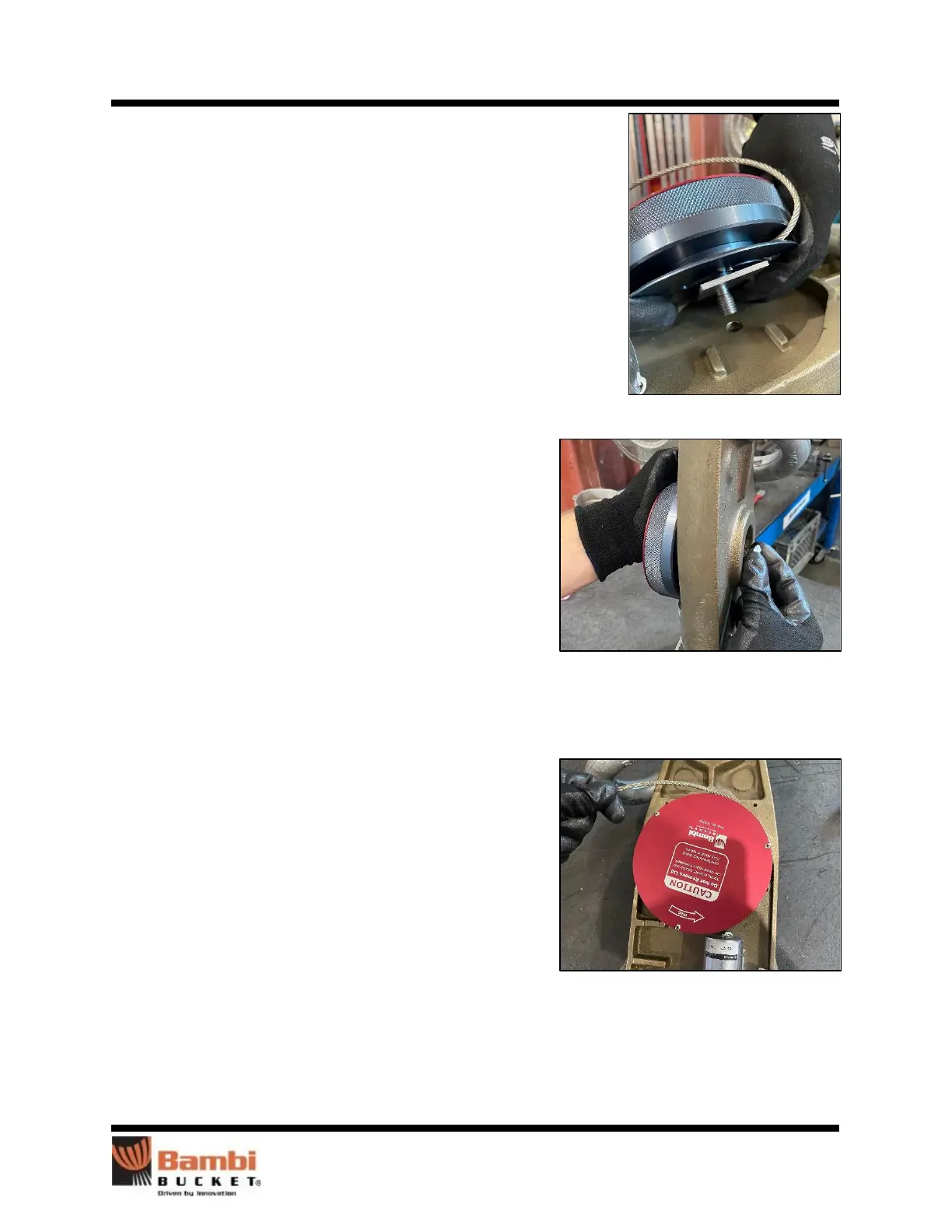

12. Check that the washer and torque plate are installed onto the
spring reel arbor, then insert it into the control head so that the
torque plate is seated between the tabs on the casting.
13. Install the nut onto the spring reel arbor while
ensuring that the torque plate is still seated properly on
the arbor.
Tip: If the plate has fallen off the arbor, rotate the
spring reel until the arbor aligns with the slot on the
plate then press to reseat it. The plate is seated
properly if the spring reel develops torque when
rotated counterclockwise.
Tighten the nut to 25 - 30 ft-lb.
Now that the spring reel is installed into the control head, follow steps 14 - 17 to preload the spring reel.
14. Wrap the tripline counterclockwise onto the drum of
the spring reel 9 revolutions without turning the
spring reel (do not tension the spring).
