Section 8: Repairs
Bambi Bucket Service Manual – Models 2024-4453 44

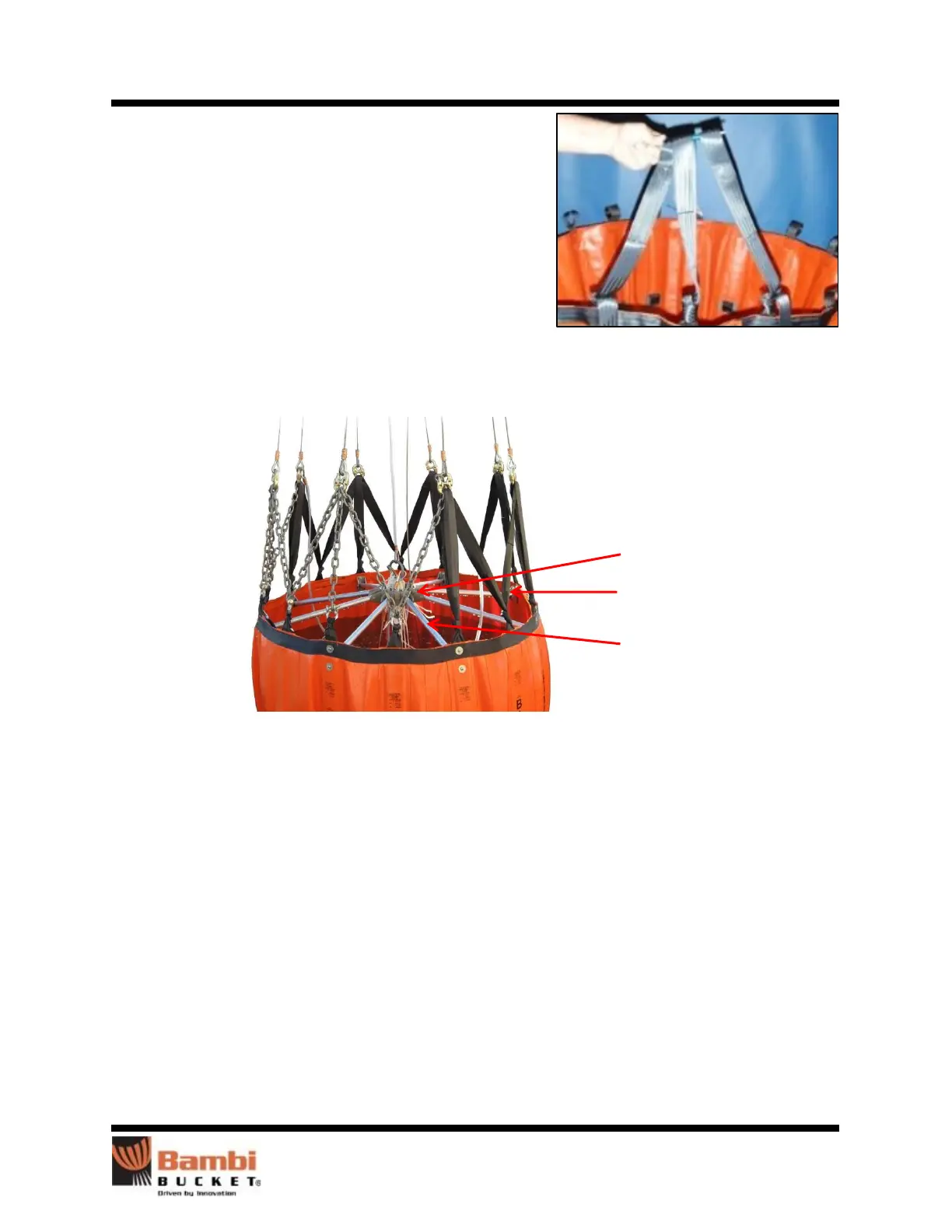

11. The M strap set should now look like this. The
suspension line attaches to the top of each M-strap
set.
IDS Replacement
The IDS can be replaced either as a complete kit or as individual pieces, as required. See Section 9:
Specifications and Parts for detailed parts drawings. Follow the procedure below to replace the entire
assembly:
1. Disconnect the tripline from the valve and remove through the IDS hub.
2. Disconnect the IDS restrainer cables from the cable restrainer brackets in the shell.
3. Disconnect the IDS deployment cable from the head.
4. Remove the pins which secure the outer ends of the spokes to the shell brackets. Remove the
IDS assembly from the bucket.
5. Inspect the shell brackets and replace as necessary.
6. With the ballast oriented at the 6 o’clock position, rotate the new IDS assembly so that the
deployment cable faces upward at the 3 o’clock position.
7. Attach the two spokes at either side of the 12 o’clock position using the stainless steel clevis
pins. Working around the bucket perimeter, attach the rest of the spokes.
