10
TECHNICAL GUIDE
Cal. 4F32A, 8F32A, 8F33A, 8F35A
[ Cal. 4F32A ]

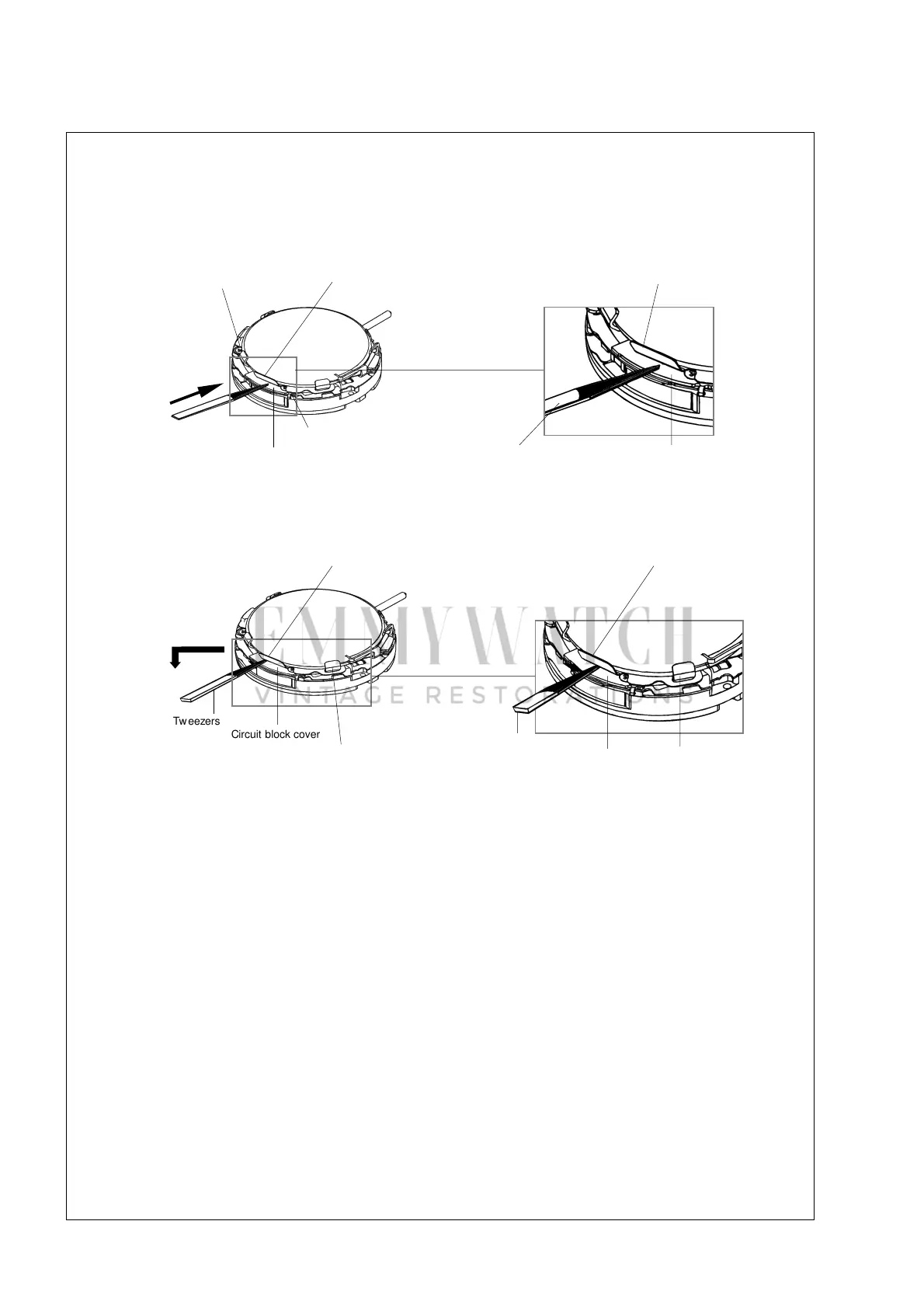

1. Locate the position w here num eral “ 1” is printed on the case ring, and insert the tips of the
tw eezers into the gap betw een the insulator for battery (A) and the circuit block cover, while
taking care not to damage the coil.
* Take care not to insert the tips of tweezers too deep into the gap as this may dam age the coil.
Numeral “ 2”
Insulator for battery (A)
Tw eezers
Circuit block cover
Numeral “ 1”
Insulator for battery (A)
Circuit block cover
2. Pry w ith the tw eezers to disengage the hooking portion of the circuit block cover.
3. Locate the position where numeral “ 2” is printed on the case ring, and use the tips of the tweezers
in the same manner as in the steps “ 1” and “ 2” above and disengage the hooking portion of the
circuit block cover to remove the battery.
Insulator for battery (A)
Hooking portion of
the circuit block cover
Circuit block cover
Tw eezers
Hooking portion of
the circuit block cover
Circuit block cover
Insulator for battery (A)
Tw eezers
Tw eezers
To Next Page
