Seiko 4F32A - Page 12

11
TECHNICAL GUIDE
Cal. 4F32A, 8F32A, 8F33A, 8F35A
[ Cal. 8F32A, 8F33A and 8F35A ]

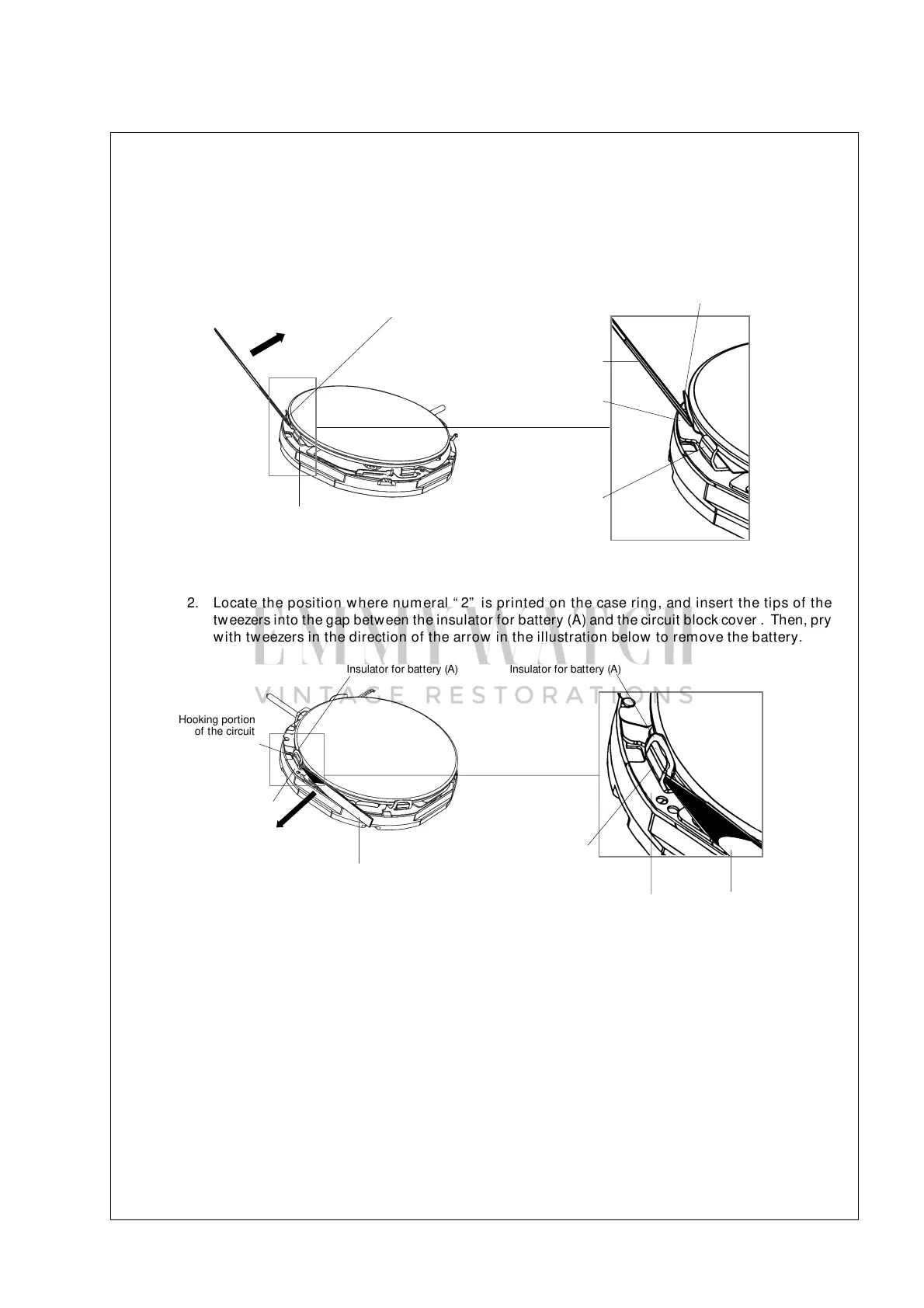

1. Locate the position w here num eral “ 1” is printed on the case ring, and insert the tips of the
tweezers into the gap between the insulator for battery (A) and the circuit block cover . Then, pry
with tw eezers in the direction of the arrow in the illustration below to disengage the hooking
portion of the circuit block cover. While doing so, take care not to damage the coil.
* Take care not to insert the tips of tweezers too deep into the gap as this may dam age the coil.
Insulator for battery (A)
2. Locate the position w here num eral “ 2” is printed on the case ring, and insert the tips of the
tweezers into the gap between the insulator for battery (A) and the circuit block cover . Then, pry
with tw eezers in the direction of the arrow in the illustration below to rem ove the battery.
Tw eezers
Circuit block cover
Tw eezers
Circuit block cover
Hooking portion of
the circuit block cover
Insulator for battery (A)
Insulator for battery (A)
Hooking portion of
the circuit block cover
Circuit block cover Tw eezers
Tw eezers
Insulator for battery (A)
Hooking portion
of the circuit
block cover
Circuit block cover
