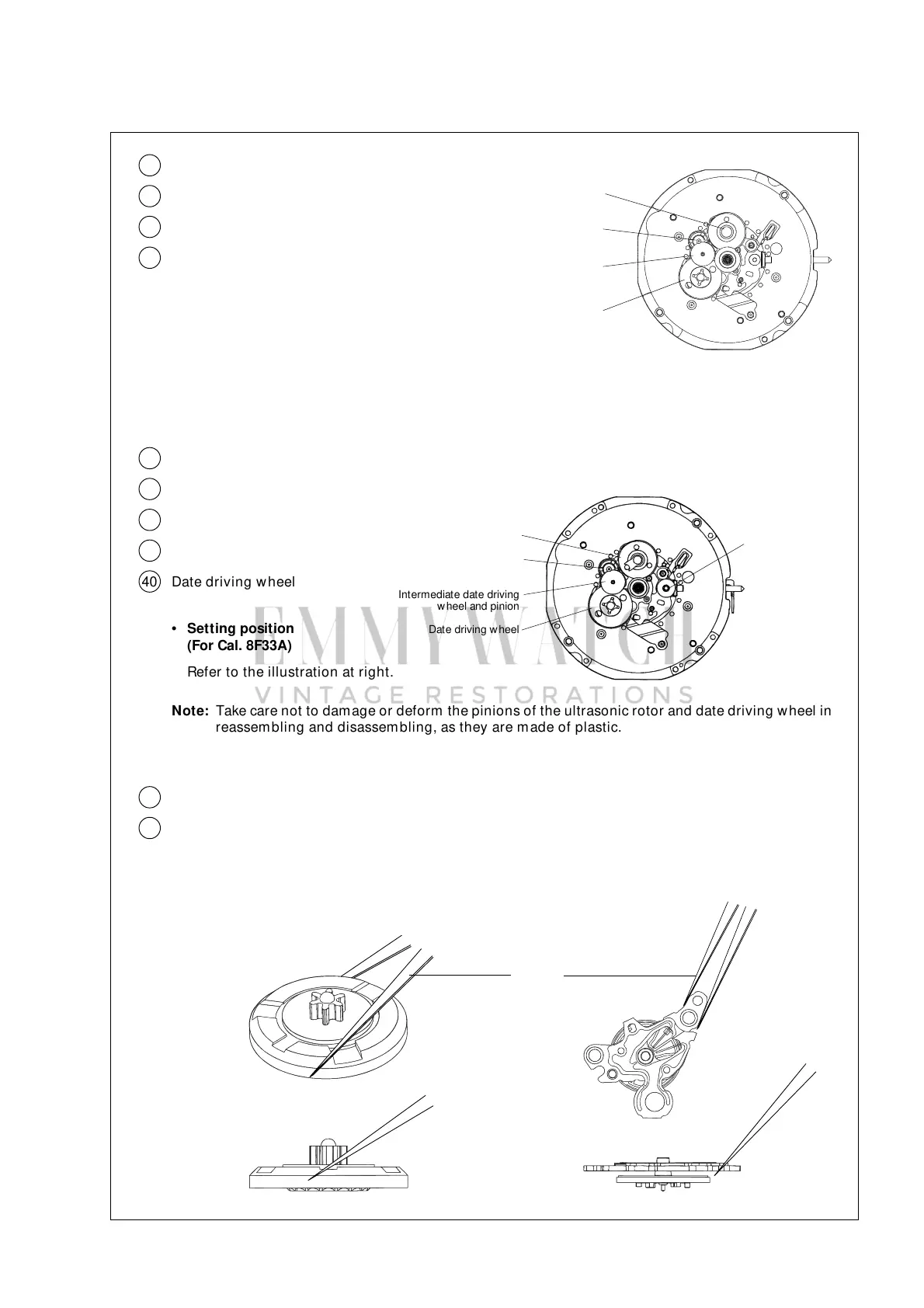

19
TECHNICAL GUIDE
Cal. 4F32A, 8F32A, 8F33A, 8F35A
36 Intermediate date driving wheel and pinion
38 Ultrasonic rotor
39 24-hour w heel
40 Date driving w heel
• Setting position
(For Cal. 4F32A, 8F32A and 8F35A)
Refer to the illustration at right.
Note: Take care not to dam age or deform the pinions of the ultrasonic rotor and date driving w heel in
reassem bling and disassem bling, as they are m ade of plastic.
38 Ultrasonic rotor
42 Ultrasonic stator unit
Note: When holding the ultrasonic rotor and ultrasonic stator unit w ith tw eezers, be sure to catch the
portions illustrated below . Otherw ise, their functions w ill be adversely affected.
24-hour w heel
Ultrasonic rotor
Intermediate date driving
wheel and pinion
Date driving w heel
Tw eezers
Tw eezers
Tw eezers
Ultrasonic stator unitUltrasonic rotor
• Setting position
(For Cal. 8F33A)
36 Intermediate date driving wheel and pinion
37 Second interm ediate w heel for calendar corrector
38 Ultrasonic rotor
39 24-hour w heel
40 Date driving w heel
Refer to the illustration at right.
Note: Take care not to dam age or deform the pinions of the ultrasonic rotor and date driving w heel in
reassem bling and disassem bling, as they are m ade of plastic.
Second intermediate
wheel for calendar
corrector
24-hour w heel
Ultrasonic rotor
Intermediate date driving
wheel and pinion
Date driving w heel
