Cal.5D88A TECHNICAL GUIDE

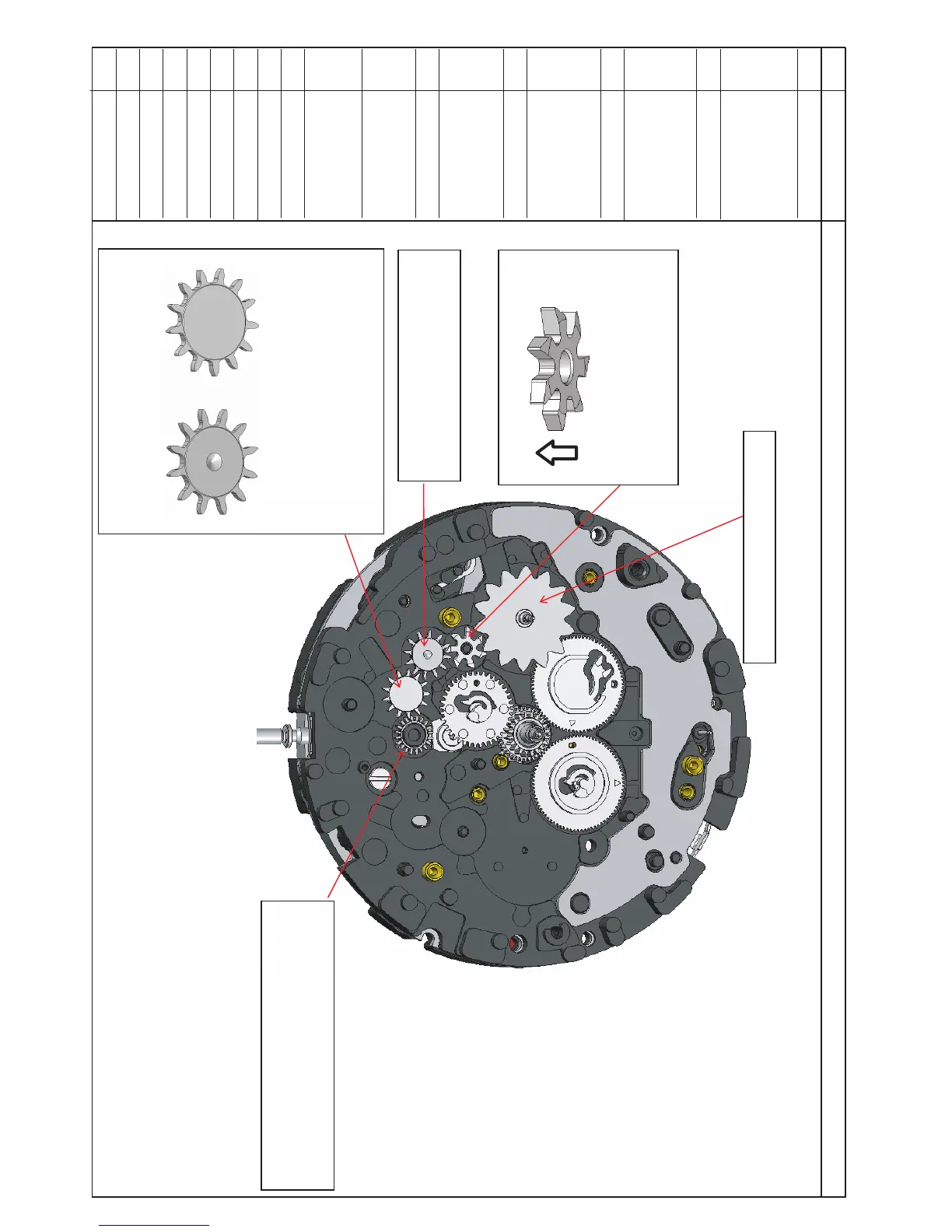

ILLUSTRATION AND SPECIAL INSTRUCTIONS ETC.
NO.16
PROCESS
No.
Mount the 2nd
25
intermediate wheel
for calendar corrector.
24
Mount the 3rd intermediate wheel
for calendar corrector.
23
Mount the 1st intermediate wheel
for day corrector.
22
Mount the 2nd intermediate wheel
for day corrector.
21
Mount the Day star wheel.
<21>
Mount the Day star wheel.
<22>
Mount the 2nd intermediate wheel for day corrector.
◆
Correct dirrection is as shown
Fig.49 below.
<23>
Mount the 1st intermediate
wheel for day corrector.
<24>
Mount the 3rd intermediate wheel
for day corrector.
◆
To discriminate the 3rd Intermediate
wheel for calendar corrector from the
1st Intermediate wheel for day
corrector, see the difference in the
shapes of each wheel. Fig. 50
*3rd Intermediate
wheel for calendar
corrector
*1st Intermediate
wheel for day
corrector
<25>
Mount the 2nd Intermediate wheel for
calendar corrector.
This part is reversible.
37/51
Fig.49
Fig.49
Fig.48
✽
