Initial voltage Guideline of normal/defective decision
1.05V - 1.55V After charging, the voltage of the rechargeable
battery increase more than 0.05 from the initial
voltage.
* The
guidelines specified in the above table is applicable only when the voltage of the
rechargeable battery is within the range between 1.05 V and 1.55 V.
* The
amount of electricity generated by swinging the watch varies depending on the
manner in which you swing it, such as the rate of swinging and the size of the swinging
arc. Please note, therefore, that checking through the procedure above is provided only
as a guideline of normal/defective decision.
*
I
f the current consumption keeps going down or exceeds the standard value, repeat
the procedure from the step 4 above.
l
Ch
ecking the automatic generating system

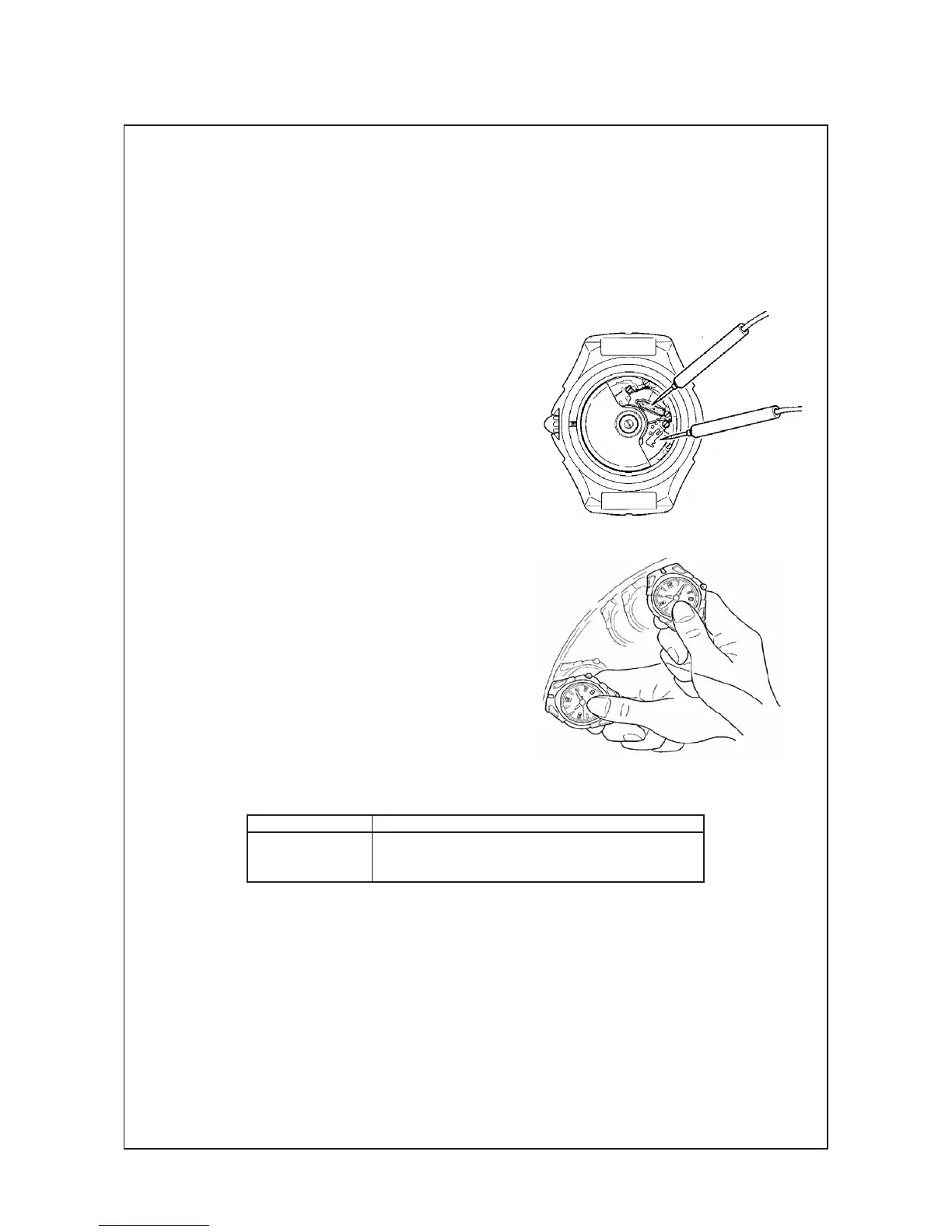

1. Apply the probes of the tester as shown in the illustration, and measure the voltage of the
rechargeable battery. (The obtained voltage is called the initial voltage.)
Notes:
• W
hen applying the minus probe of the
tester to the rechargeable battery, take care
so as not to short-circuit the lead terminal (-)
and the rechargeable battery clamp.
•
I
f a short-circuit has occurred, leave the
watch untouched for more than 10 minutes,
and measure the voltage again, checking
that a stable measurement is obtained.
2
.
Close the case back tentatively, and swing the watch
from side to side 200 times at a rate of 2 to 3 swings
a second, making an arc of approximately 20 cm.
3.
Within 3 minutes after swinging the watch, measure
the voltage of the rechargeable battery. in the same
manner as in step 1 above.
4.
Refer to the table below, and decide whether the
automatic generating system is normal or defective.
[Initial voltage of the rechargeable battery and guidelines of normal/defective decision]
