Seiko 7T04A - PARTS LIST AND IDENTIFICATION; SETTING STEM REMOVAL REMARKS; 24 HOUR INDICATOR MECHANISM

Cal. 7T04A

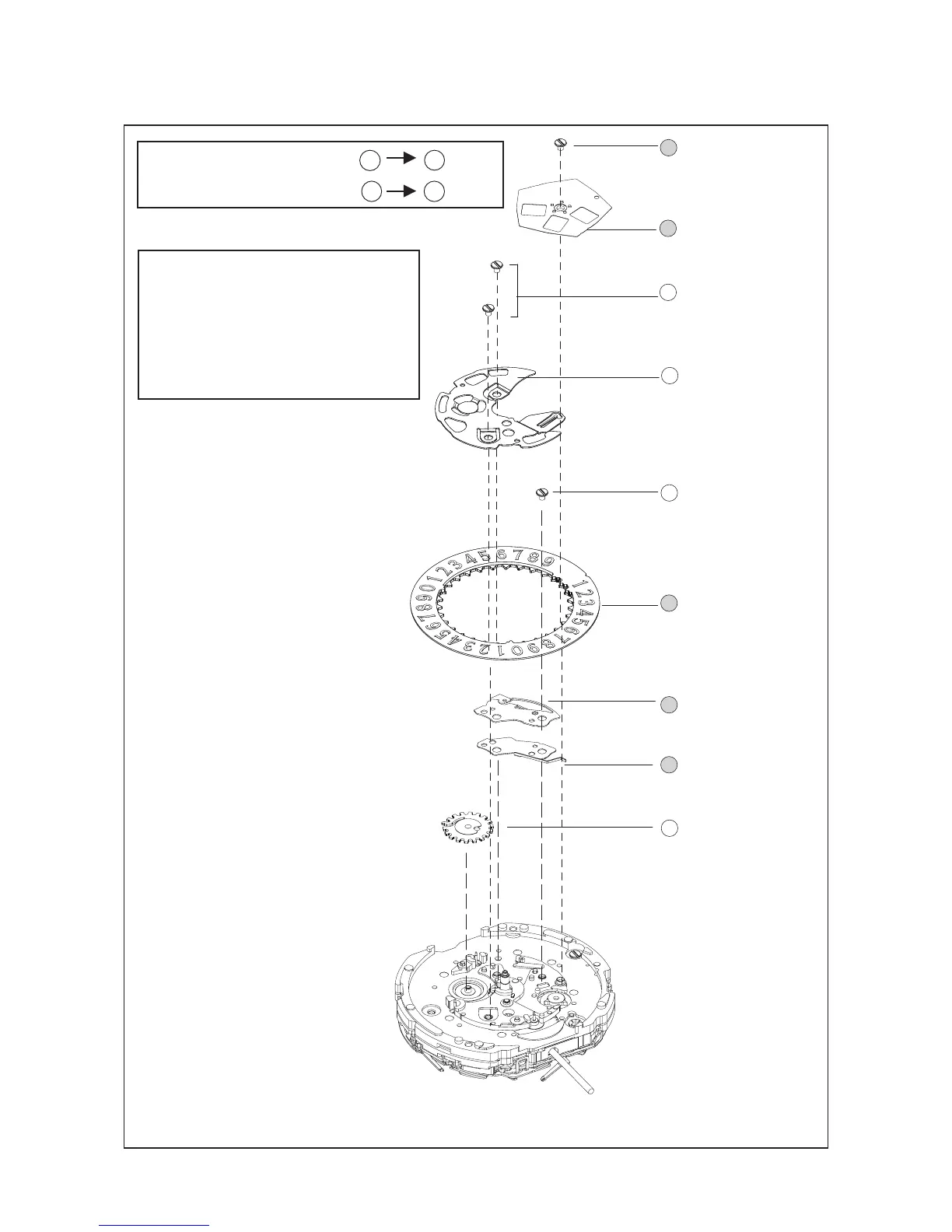

PARTS LIST
4/21
2 DATE DIAL FOR
TEN’S DIGIT
0878B95
3 DATE DISK GUARD
SCREW (2pcs.)
0012354
4 DATE DISK GUARD
0808522
5 DATE JUMPER SCREW
FOR UNIT’S DIGIT
0012354
6 DATE DISK FOR
UNIT’S DIGIT
0878B93
7 DATE JUMPER FOR
UNIT’S DIGIT
0810504
8 DATE JUMPER FOR
TEN’S DIGIT
0810505
1 DATE DIAL SCREW
FOR TEN’S DIGIT
0012354
DATE DRIVING WHEEL
0802515
9
Lubricating of some parts is shown in "II. REMARKS ON DISASSEMBLING AND REASSEMBLING."
Disassembling procedures Figs. : 1 62
Reassembling procedures Figs. : 62 1
Remarks on removing the Setting stem
To remove the SETTING STEM when taking
out the movement from the case or while
disassembling the parts during repair work,
be sure to pull out the crown to the first
click, and then, remove the SETTING STEM
while pushing the setting lever. Refer to
page 9 for further details.
[24 HOUR INDICATOR MECHANISM]
